WorkRite Fundamentals EX Electric Rectangular Curved Workcenter

Description

The affordable solution for height adjustability. Fundamentals EX is our newest adjustable height workcenter and was designed to provide exceptional quality at an affordable price. Fundamentals features integrated computerized control and is one of the most energy efficient tables in the industry, using less than one dollar of electricity per year on average.

Fundamentals frame sets are available in 3 finish colors , meet BIFMA G1-2013 standards for height adjustability, and are designed to easily accommodate both 24” and 30” deep worksurfaces with equipment payloads up to 125 pounds.

Fundamentals is available with a wide range of feature options enabling users to build the perfect workcenter for virtually any application or budget.

Dimensions

Features

• Frame options: 2-leg frames

• 24" or 30" depths

• Widths from 30" to 72" depending on shape

• Finish options: Silver, Charcoal, and White

• Height Range: 22.5" to 48.7"

• Payload Capacity: 125 pounds

• Travel Speed: 1.6 inches per second

• Max Power Draw: 120 V, 60 Hz, 1.2 A

• Standby Power: 0.1 W


Option 1: Surface Dimensions

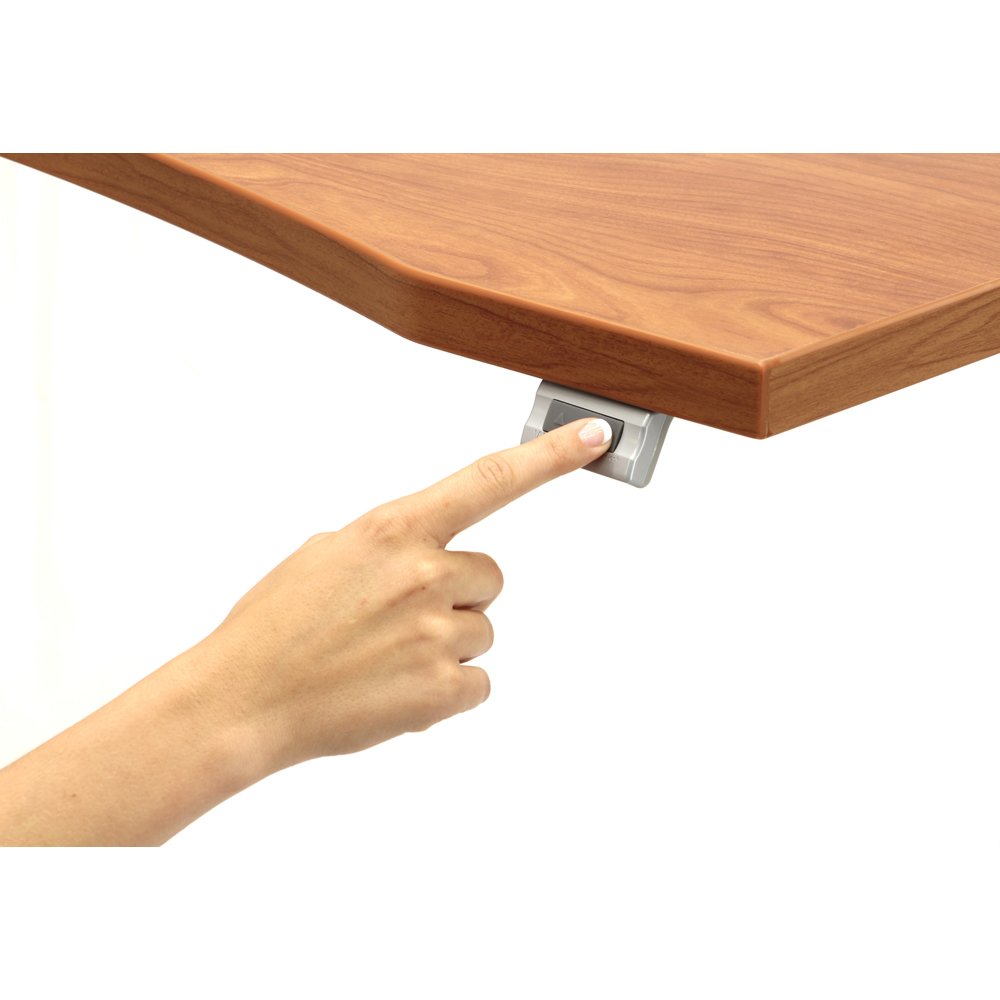

Option 2: Switch Type

Standard switch for simple Up/Down control or the Programmable switch for more advanced options including 3 memory pre-sets that can be easily customized by the user.

Option 3: Base Frame Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

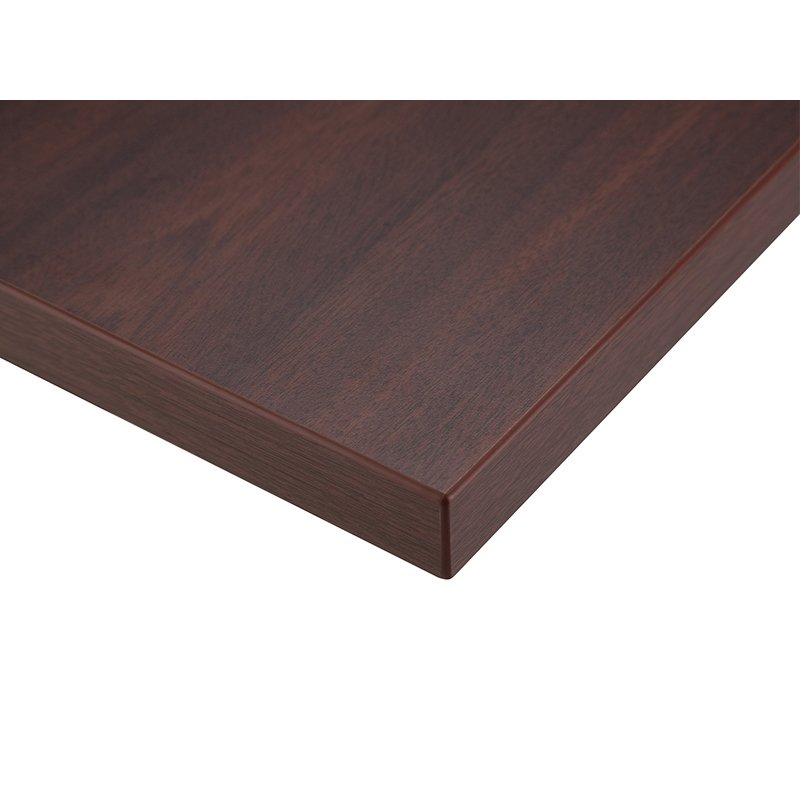

Option 4: Laminate Top Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Option 5: Edge Treatments

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Option 6: Foot Set

Flat foot or the styled foot for use with any Workrite electric height adjustable workcenter. Both options are available in finishes that coordinate with our frame sets and in 23" or 29" lengths.

Option 7: Casters

Sierra Locking Casters

Features

• Low profile locking casters 2" W x 1.5" H
• Casters raise work centers by 1" versus installed adjustable glides
• Can be used with all Workrite adjustable work centers, recommended for Sierra workcenters
• Four (4) casters required for 2 leg workcenters, five (5) casters required for 3 leg workcenters

The following Casters are available

• 95234 - 4 casters for 2 leg tables
• 95235 - 5 casters for 3 leg tables

Workcenter Ordering Information

Determining the correct size and shape of your worksurface is extremely important. Combining a Workrite worksurface with any height adjustable base requires 1" of clearance at each side and in the back of the worksurface to avoid pinching or scraping. All Workrite worksurfaces are manufactured to the dimensions required to provide these clearances.


Worksurfaces are pre-drilled with mounting location for frame sets or bases.

Joining kits are provided with all two piece worksurfaces.


Standard lead time for our laminated worksurfaces is 20 business days for quantities of 10 or less. Lead times for larger product orders will be provided upon receipt of the order.

Important Notes:

• Workcenters ship unassembled and require simple hand tools to install.

• If using customer’s own worksurfaces, pre-drill pilot holes for all screws to ensure the most secure attachment.

• If installing a keyboard arm or track, the electric motor control box may need to be repositioned from its pre-drilled location.

• All workcenters have adjustable glides providing 0.5" of adjustment.

• Mobile pedestals may limit lower height range.
