$769.00

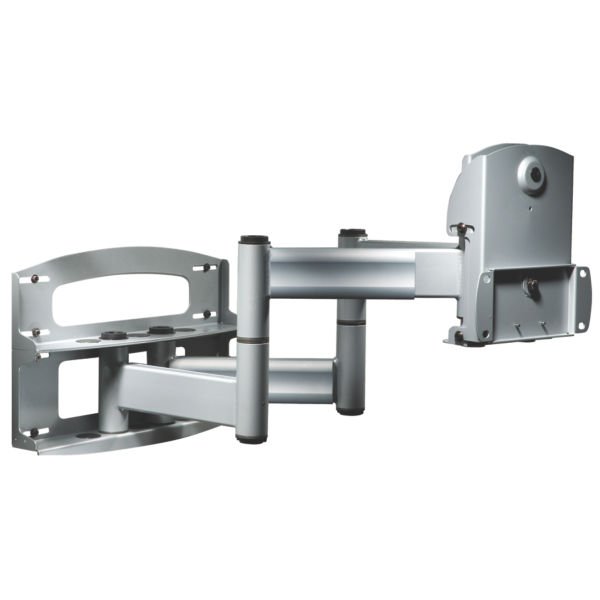

Peerless PLAV70 Dedicated Articulating Dual Wall Arm

Product ID 14494
HIGHLIGHTS
Peerless PLAV70 Dedicated Articulating Dual Wall Arm
Peerless PLAV70 Dedicated Articulating Dual Wall Arm

Highlights

  • ±1" (24mm) vertical adjustment located within reach behind display

  • Includes mesh cord sheath and cable ties to neatly manage cables

  • Three horizontal arm positions at 2.6" (66mm) centers for flexible lateral display placement

  • Universal models accommodate 42" to 65" displays with mounting hole patterns up to 730 x 433mm (28.75"W x 17.05"H)

  • +10/-5° of tilt

  • ±7° of roll for post installation display leveling

  • Up to 180° swivel

  • Arm extends up to 32.52" (826mm) from wall

Description

Designed to handle the heaviest displays, peerless PLAV70 features dual-arm, all-steel construction that holds displays up to 95" and weighing up to 200lb. The PLAV70’s self-lubricating bushings enable your display to smoothly articulate, while adjustable tilt and pivot allow you to position your display for the optimal viewing angle. Swing, tilt and extend your display, even in and out of recessed cubby holes and custom frames with the vertical adjustment feature that provides the capability to raise or lower your display for a perfectly aligned installation.

Technical Drawing

Technical drawing for
Peerless PLAV70 Dedicated Articulating Dual Wall Arm, 42

Specifications

Color Black
Finish Powder Coat
Minimum to Maximum Screen Size

42" to 95"

Weight Capacity 200 lbs (90.0kg)
Distance from Wall

4.50 - 29.30" (114 - 744mm)

Roll

+7 / -7 degree

Security Features Both Security and Non-Security Hardware
Swivel Yaw +45 / -45 degree
Tilt +10 / -5 degree
Package Contents
  • Articulating arm
  • Wall plate
  • Mesh cord sheath
  • Snap-cover cable channels
  • Mounting hardware
Product Dimensions

19.75" x 21.67" x 4.50"-29.30" (502 x 550 x 114-744mm)

Product Weight

50.5 lbs (22.9kg)

Shipping Dimensions

34.69" x 23.63" x 8" (881.1 x 600 x 203mm)

Shipping Weight

58.5 lbs (26.5kg)

UPC Code 735029243199
Model PLAV70
Manufacturer Peerless Mounts
Part Number PLAV70
UPC 735029243199
Weight lb(s)
Color Black
Finish Powder Coat
Monitor Size 42" to 95"
Weight Capacity 200 lbs (90.0kg)
Distance From Wall 4.50 - 29.30" (114 - 744mm)
Roll +7 / -7 degree
Swivel +45 / -45 degree
Tilt +10 / -5 degree
Dimensions 19.75" x 21.67" x 4.50"-29.30" (502 x 550 x 114-744mm)
Weight 50.5 lbs (22.9kg)
Shipping Dimensions 34.69" x 23.63" x 8" (881.1 x 600 x 203mm)
Shipping Weight 58.5 lbs (26.5kg)
Warranty Limited 5 year
Number of Monitors 1 Monitor
Mounting Options Wall
