AnchorPad 31177 Laptop Security Mount with Large Standard Wings and Slide

Product ID 15628


  • Use on table tops, carts and wall mounts
  • Fits most laptops from 9" to 16 1/2" wide
  • Weight of the laptop stand is 10 lbs
  • Laptop monitor remains open when installed
  • Monitor tilts back at 120 degrees
  • Connect the base plate to the Wall mount arm or Desk mount arm using the 4 tamper proof screws(included)
Related Parts Description
31177 Laptop Security Stand
31177BP Laptop Security Stand - Battery Pack, Max Battery Pack Size 1.5" Wide. Total Depth from front of laptop to back of battery pack = 14"
31177ARM Laptop Security Stand - Wall or Desk Arm Mount
31177BPARM Laptop Security Stand - Wall or Desk Arm Mount Battery Pack

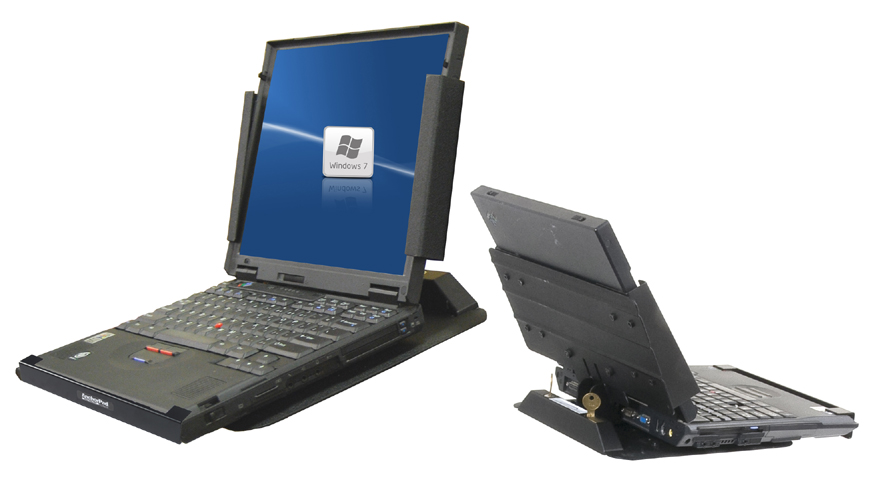

AnchorPad 31177ARM Lockdown Arm Mount on Wall or Desk 31177BPARM

Maximum Security for Your Laptop/Notebook PC

The 31177ARM Laptop security Stand is designed for a desk or wall mount for a standard laptop. New improvements have increased the security level of this Laptop Security Stand. The new adjustable front slide brackets adds security and prevents lifting of the keyboard. The wing brackets are also adjustable for a perfect fit. Please note that the 31177ARM does not secure the Arm unit to the desk or to the wall.

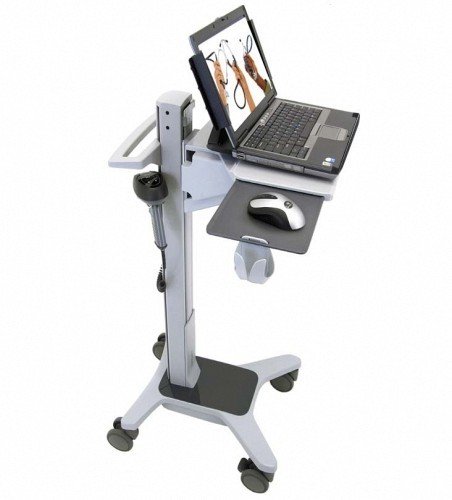

AnchorPad 31177 ARM Lockdown Arm Mount on Wall and Desk


  • A cost effective security system which protects notebook and laptop computers from falls, drops and theft.
  • Use on tabletops, carts, desk or wall mounts.
  • Utilizes built-in VESA standard hole pattern (75-100mm).
  • Fits most laptops from 9 inch to 16.50 inch wide.
  • Simple Unique in design - effective laptop security with no tools required.
  • Very high security solution at modest cost.
  • Simple installation, no tools required.
  • Computer easily snaps in and out for authorized user.
  • Laptop monitor remains open - monitor tilts back at 120°


  • A - 1 - 11-in x 10-in base plate with black foam on the underside
  • B - 1 back plate (paddle bracket and wing brackets attached)
  • C - 1 paddle bracket with screw at the bottom
  • D - 1 set wing brackets (1 left, 1 right)
  • E - 1 slide bracket (attached to base plate with 4 screws)
  • F - 1 lockblock
  • G - 2 keys
  • H - 2 wafer locks
  • I - 8 bump-on's (4 assembled on back plate plus 4 in hardware bag)
  • J - 6 screws (2 qty to assemble the paddle bracket to the back plate and 4 qty to assemble the wing brackets to the back plate)
  • K - 2 screws (to assemble the slide bracket to the base plate)
  • L - 3 Allen wrenches (1 for paddle bracket, 1 for wing brackets, 1 for slide bracket)
  • M - 4 tamper proof screws and 1 tamper proof drill bit

AnchorPad 31177ARM or 31177BPARM Laptop Lockdown Security Arm Wall or Desk Mount Stand  with Rubber Bump Ons

If your laptop is really thin, you can purchase larger Bump-Ons from Home Depot or other hardware stores to bring the laptop higher for easier typing.

The Following Parts are Sold Separately

Innovative 9110 or 9110-4 or 9110-8.5 or 9110-8.5-4 Wall Mount Extension Arms

Adjustable tension at joints - ideal for touch screen applications. LCD display can tilt up / down 30° and turn left / right 30°. Pivot monitor from portrait to landscape.

Innovative 7Flex-104i FlexMount Arm

Extends upto 24" horizontal range, with 16" vertical range and folds up to 3.5" of space. Weight capacity 4-14.5 lbs. Monitor tilter mechanism can tilt over 200°, rotates 360° at 3 joints. Includes Desk or Wall Mount option.

Secure your arm to the wall

You can find security wall screws from independent manufacturers such as or However, we are not responsible for the functionality, security or provide products warranty.

Tamperproof Screws

Bryce Fastener Screws


Security Plate Lockdown Arms associated parts are designed only as theft deterrents, not theft-proof. in no event will be held liable for any loss or damage including without limitation, indirect or consequential loss or damage, or any loss or damage whatsoever arising from loss of data or profits arising out of or in connection with the use of this product.

Frequently Asked Questions

q Can multiple stands to be keyed with the same key core pin sequence? We need only one key to access all the units as we are looking to install them in prison living units.

Yes, it is possible to key multiple stands with the same key. Although depending on the number of stands ordered, we will be shipping multiple pairs of keys. Please note that there is no extra charge for providing multiple keys.
