Peerless CM850 Corner Mount for 32" to 60" Displays

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 15631
Recommended Accessories
List Price: $725.00
Our Price: $658.00
Shipping: $48.98 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States

Description

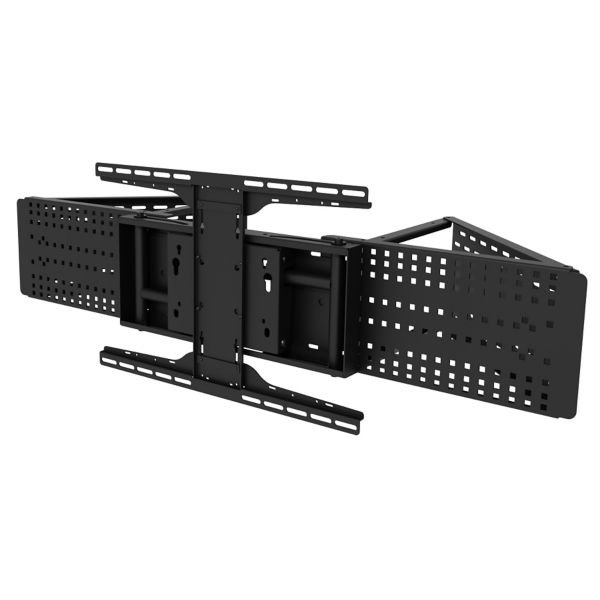

The industry’s first mount designed for direct corner mounting - only from Peerless-AV. With its pull-out pivot capability of 11.18" (284mm), peerless CM850 easily adapts to wider displays with no need for wall mount repositioning. Enjoy perfect viewing from all angles with this flexible corner mount model that pulls-out, swivels, and tilts. Display attachment plate accommodates speakers when used with smaller flat panels. Out of the way, but still in clear view, the direct corner mount is the perfect solution for displays mounted directly to the corner.

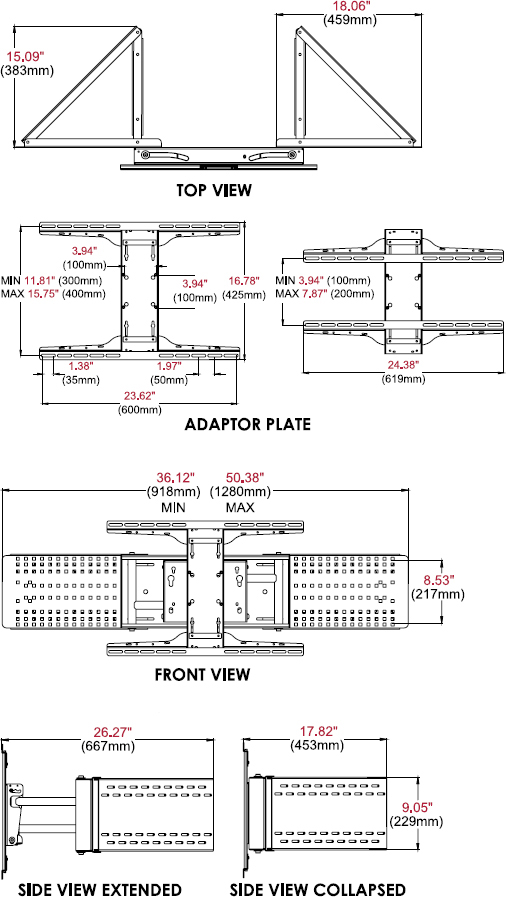

Technical Drawing

Technical drawing for Peerless CM850 Corner Mount for 32" to 60" Displays



Specifications

Minimum to Maximum Screen Size

32" to 60"

VESA Pattern

600 x 400

Weight Capacity

150 lbs (68.0 kg)

Color

Black

Finish

Powder Coat

Distance from Wall

18.04 - 25.79" (458 - 655mm)

Mounting Pattern

729 x 433mm (28.70 x 17.05")

Roll

+1 / -1 degree

Security Features

Security Hardware

Swivel Yaw

+45 / -45 degree

Tilt

0, 5, 10 degree

Product Dimensions

36.12"-50.38" x 16.78" x 17.82"-26.27" (918-1280 x 425 x 453-667mm)

Product Weight

62 lbs (28.1 kg)

Shipping Dimensions

Box 1: 46.00" x 12.00" x 4.00" (1168 x 304 x 101mm)

Box 2: 32.00" x 12.00" x 4.69" (812 x 304 x 119mm)

Shipping Weight

Box 1: 39 lbs (17.7 kg)

Box 2: 28.0 lbs (12.7 kg)

Package Contents

  • Wall plates (2)

  • Display attachment plates (2)

  • Support brackets (4)

  • SP850-UNL

  • Assembly and mounting attachment hardware

UPC Code

735029259688



Features

  • Optional shelving available for AV components

  • Accommodates speakers when used with smaller displays (wall unit may be visible with some smaller displays)

  • Extends up to 11.18" (284mm); pull-out pivot with up to 90° rotation; 0°, 5° or 10° lockable tilt

  • Allows display to be mounted directly in to the corner

  • Includes SmartMount Pull-Out Pivot Mount (SP850-UNL)

  • Extendable arms accommodate multiple display sizes without having to adjust wall unit placement

  • The I-shaped adaptor plate’s innovative design helps avoid blocking connections on the back of display

  • Universal models adapt to displays with mounting holes up to 600 x 400 (23.62" W x 15.75" H)





Model CM850
Manufacturer Peerless Mounts
Part Number CM850
UPC 735029259688
Weight 67.00 lb(s)
Mounting Options Wall
Color Black
Monitor Size 32"-60"
VESA 600 x 400
Weight Capacity 150 lbs (68 kg)
Distance From Wall 18.04 - 25.79" (458 - 655mm)
Mounting Pattern 729 x 433mm (28.70 x 17.05")
Roll +1 / -1 degree
Swivel +45 / -45 degree
Tilt 0, 5, 10 degree
Dimensions (W x H x D) 36.12"-50.38" x 16.78" x 17.82"-26.27" (918-1280 x 425 x 453-667mm)
Weight 62 lbs (28.1 kg)
Shipping Dimensions Box 1: 46.00" x 12.00" x 4.00" (1168 x 304 x 101mm) Box 2: 32.00" x 12.00" x 4.69" (812 x 304 x 119mm)
Shipping Weight Box 1: 39 lbs (17.7 kg) Box 2: 28 lbs (12.7 kg)
Number of Monitors 1 Monitor
Mounting Options Wall
Warranty Limited 5 year

Be the first to review this product

Peerless CM850 Corner Mount for 32" to 60" Displays

Warranties and Returns

Limited Warranty

Peerless Industries, Inc. (Peerless-AV) warrants to original end-users of Peerless-AV products that Peerless-AV products will be free from defects in material and workmanship, under normal use, for the periods listed below, from the date of purchase by the original end-user. At its option, Peerless-AV will repair or replace with new or refurbished products or parts, or refund the purchase price of, any Peerless-AV product which fails to conform with this warranty.

In no event shall the duration of any implied warranty of merchantability or fitness for a particular purpose be longer than the period of the applicable express warranty set forth above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless-AV, (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless-AV’s instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third-party actions and force majeure. This warranty also does not cover corrosion or rust resulting from damaged, scratched or chipped paint or other surfaces.

In no event shall Peerless-AV be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured by a security device which may be included with the Peerless-AV product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty is in lieu of all other warranties, express or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless-AV in connection with the sale of any Peerless-AV product.
This warranty gives specific legal rights, and you may also have other rights which vary from state to state.


Product Warranty Period
Mounts 5 years
Kiosk Enclosures 5 years
Furniture 1 year
Cables 25 years
Cleaning Products 1 year
Power Products 1 year
Electronic Products and Components 1 year
Xtreme Displays, Ultra View TVs 2 years
Interactive 1 year
