Peerless PRG-1 or PRG-1-S or PRG-1-W Precision Gear Projector Mount - PAP Adapter Plate needed

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 15664
Recommended Accessories
List Price: $149.00
Our Price: $118.00
Shipping: $12.98 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Related Products:



Part Number

Description

PRG-1

Black PRG Precision Gear Projector Mount up to 50 lbs - PAP Adapter Plate needed

PRG-1-S

Silver Precision Gear Projector Ceiling Mount up to 50 lbs - PAP Plate required

PRG-1-W

White Precision Gear Projector Mount up to 50 lbs - PAP Adapter Plate required





Peerless PRG-1 or PRG-1-S or PRG-1-W - PRG Precision Gear Projector Mount



General Information

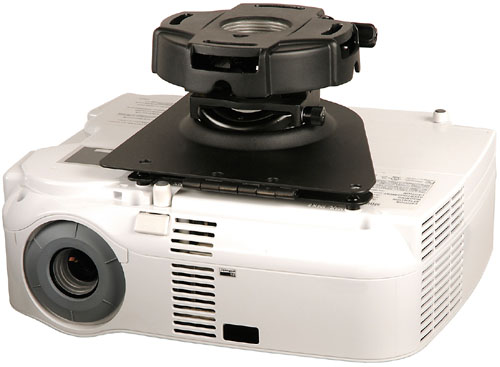

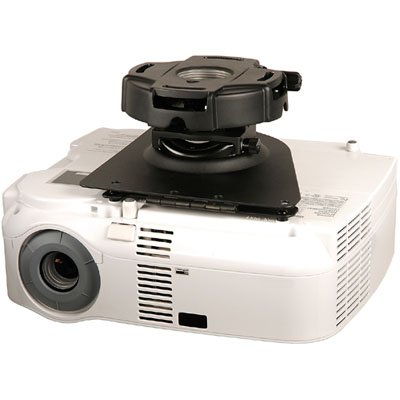

Peerless PRG-1 PRG Precision Gear Projector Ceiling Mount for Multimedia Projectors









Features of Peerless PRG 1 or PRG 1 S or PRG 1 W:

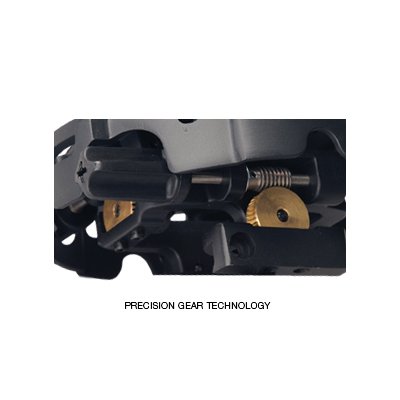

  • Patent pending precision gear provides accurate projector image alignment.

  • Two adjustment knobs control projector image alignment.

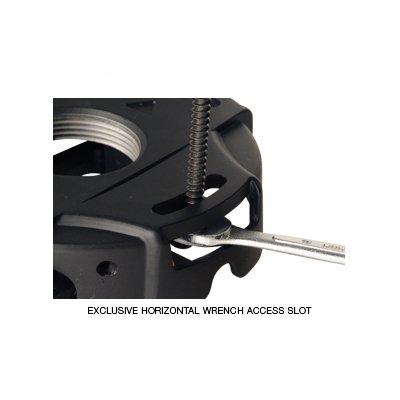

  • Horizontal wrench access slots make flush mounting installations fast & easy.

  • Pre-assembled design reduces installation time.

  • Quick release mechanism to easily service projector.

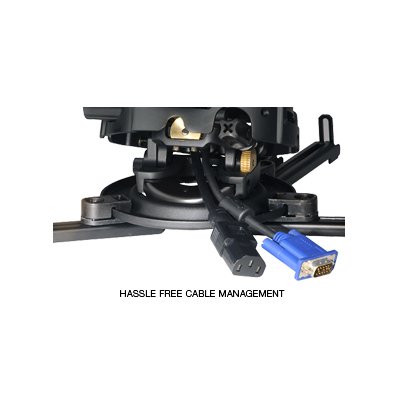

  • Cable management allows cables to be routed through projector mount out of sight.

  • Security hardware included for theft prevention.

  • Tilt- ± 20°, Roll ± 10°, Swivel 360°.

  • Contact Peerless for model specific adapter plate, or universal clamp style adapter plates.

  • Tilt and roll locking security screws provided.

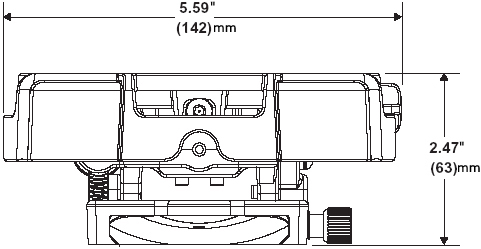

Technical Drawing of Peerless PRG-1 Precision Gear Projector Ceiling Mount



Technical Drawing of Peerless PRG-1 Precision Gear Projector Ceiling Mount









Description of Peerless PRG1 or PRG1S or PRG1W:



Peerless' PRG Precision Gear Projector Mount is changing the way image alignment is done. The patent-pending precision gear design provides exact tilt and roll image positioning with a simple turn of a knob. Once the installer sets the precision gear to the desired position it stays securely in place. It will not shift during projector maintenance, bulb replacement, and will not loosen or change alignment due to vibration, accidental bumping etc. With Peerless' PRG Precision Gear Projector Mount the installer sets it and forgets it.









Specifications of Peerless PRG-1 or PRG-1-S or PRG-1-W



Color:

Black, Silver and White

Tilt:

±20°

Swivel:

360° (±15° when flush mounted)

Roll:

±10°

Mounting Surfaces:

Wood joist, concrete and other structures (Other structures require accessory)

Product Dimensions (W x H x D):

5.58" x 2.47" x 5.58" (142 x 63 x 142 mm)

Product Weight:

1.56 lbs (0.71 kg)

Load Capacity:

50 lbs (22 kg)

Finish:

Scratch resistant fused epoxy

Package Size (W x H x D):

6.5" x 3" x 7.125" (165 x 76 x 181 mm)

Package Ship Weight:

1.82 lb (.83 kg)

Package Contents:

  • PRG Precision Gear Projector Mount

  • Mounting attachment hardware

  • Assembly instructions

Units in Package:

1







Literature (Please open the following documents for more technical information)




Peerless PRG 1 or PRG 1 S or PRG 1 W Precision Gear Projector Mount - Catalog Page

- pdf

Peerless PRG1 or PRG1S or PRG1W Precision Gear Projector Ceiling Mount - Drawing

- pdf

Peerless PRG-1 or PRG-1-S or PRG-1-W Projector Ceiling Mount - Installation

- pdf



Model PRG-1 or PRG-1W or PRG-1S
Manufacturer Peerless Mounts
Part Number PRG-1 or PRG-1W or PRG-1S
UPC 735029249856
Weight 2.00 lb(s)
Color Black, Silver, White
Tilt ±20 degree
Swivel 360 degree
Roll ±10 degree
Mounting Surfaces Wood joist, concrete and other structures (Other structures require accessory)
Dimensions (W x H x D) 5.58" x 2.47" x 5.58" (142 x 63 x 142 mm)
Weight 1.56 lbs (0.71 kg)
Weight Capacity 50 lbs (22 kg)
Shipping Dimensions 6.5" x 3" x 7.125" (165 x 76 x 181 mm)
Shipping Weight 1.82 lb (.83 kg)
Mounting Options Ceiling
