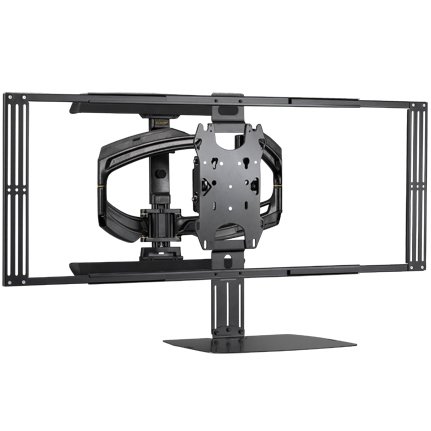

Chief TS525TU Large Thinstall Dual Swing Arm Wall Mount

ThinStall Full Swing Wall Mount for 42" to 75" Displays

Product ID 16524


  • Full motion wall mount for TVs, displays
  • Holds displays 42"-75" weighing up to 125 lbs

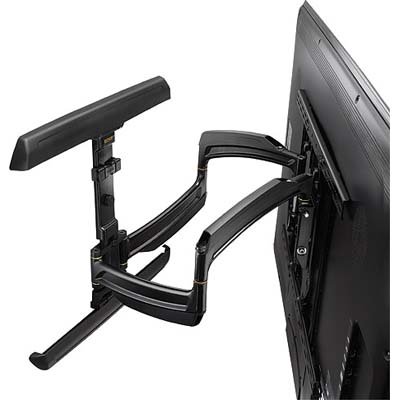

  • Extends TVs, displays up to 25"
  • Allows for lateral movement of 16"
  • Low profile mount, display collapses to within 1.5" of the wall
  • Light weight mount, can be easily installed by a single person.

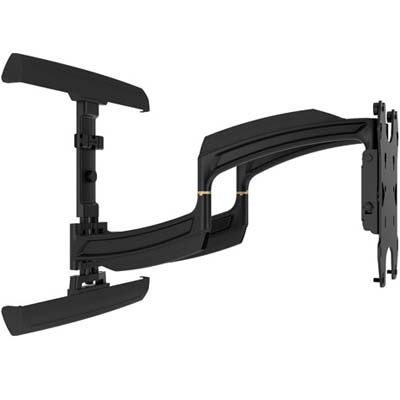

Chief TS525TU is a lightweight, low-profile full-motion wall display mount for TVs 37-58". Easily installs with one person by mounting the top rail and sliding on the assembly.


Technical Drawing

Technical Drawing for Chief TS525TU Thin stall, Light Weight, Full Swing Wall Mount Arm for 37" to 58" Displays






UL Listed

Lateral Shift

16" (406 mm)

Manual Height Adjustment


Maximum Extension

25" (635.mm)

Maximum Screen Thickness

5" (127mm)

Minimum Depth

1.5" (38.1mm)

Mounting Pattern Compatibility (Universal Versions)

100 x 100mm - 800 x 400mm



Overall Dimensions (H x W x D)

20.7" x 29.5" x 1.5" (527 x 749 x 38mm)

Pivot (Numerical Value)

±90° (depending on screen width)

Post-Installation Leveling (Roll)


Shipping Weight

55.00 lbs

Solution Type



- 15°

Typical Screen Sizes

37 - 58"

Wall Stud Compatibility (inches)


Weight Capacity

125 lbs (56.7kg)

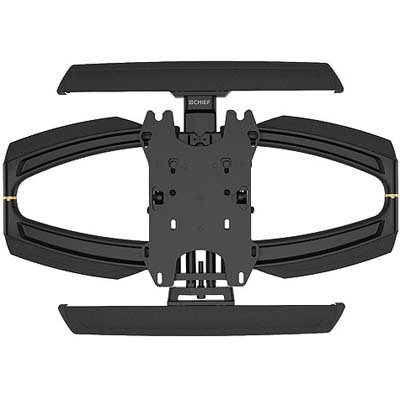

  • Ultra Low Profile - Sleek design collapses to 1.5" (38 mm), providingan ultra-low profile for all types of TVs, including LED, LCD and Plasma
  • Extends up to 25" (635 mm) Full extension maximizes viewing potential
  • Centris low-profile tilt - Provides up to 15° of effortless fingertip tilt toachieve optimal viewing angles

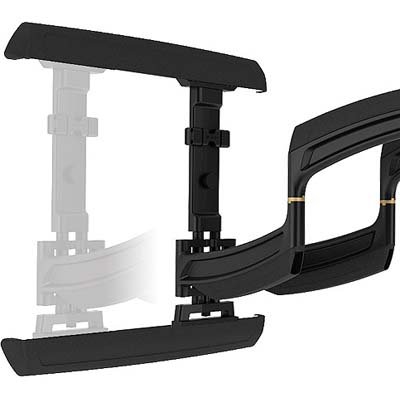

  • Centerless Lateral Shift - Post-installation lateral shift allows up to 16"(406 mm) of adjustment for limitless centering capability
  • Integrated Cable Management - Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation
  • Post Installation Height Adjustment - A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment

Product Options/Accessories

Model TS525TU
Manufacturer Chief Mounts
Part Number TS525TU
UPC 841872147307
Color Black
Lateral Shift 16" (406 mm)
Manual Height Adjustment 1" (25 mm)
Maximum Extension 25" (635 mm)
Maximum Screen Thickness 3" (76 mm)
Minimum Depth 2.0" (50 mm)
Mounting Pattern 100 x 100mm - 800 x 400mm
Overall Dimensions 20.7" x 29.5" x 1.5" (527 x 749 x 38mm)
Pivot ±90°
Shipping Weight 55 lbs (24.95 kg)
Tilt Up to 15 degree
Monitor Size 42 - 75"
Wall Stud 16" (406 mm)
Weight Capacity 125 lbs (56.7 kg)
Orientation Landscape
