LCD & Laptop Sit-Stand Workstation with Worksurface and Keyboard Tray, EDW-4203D

Be the first to review this product
Product ID: 16978

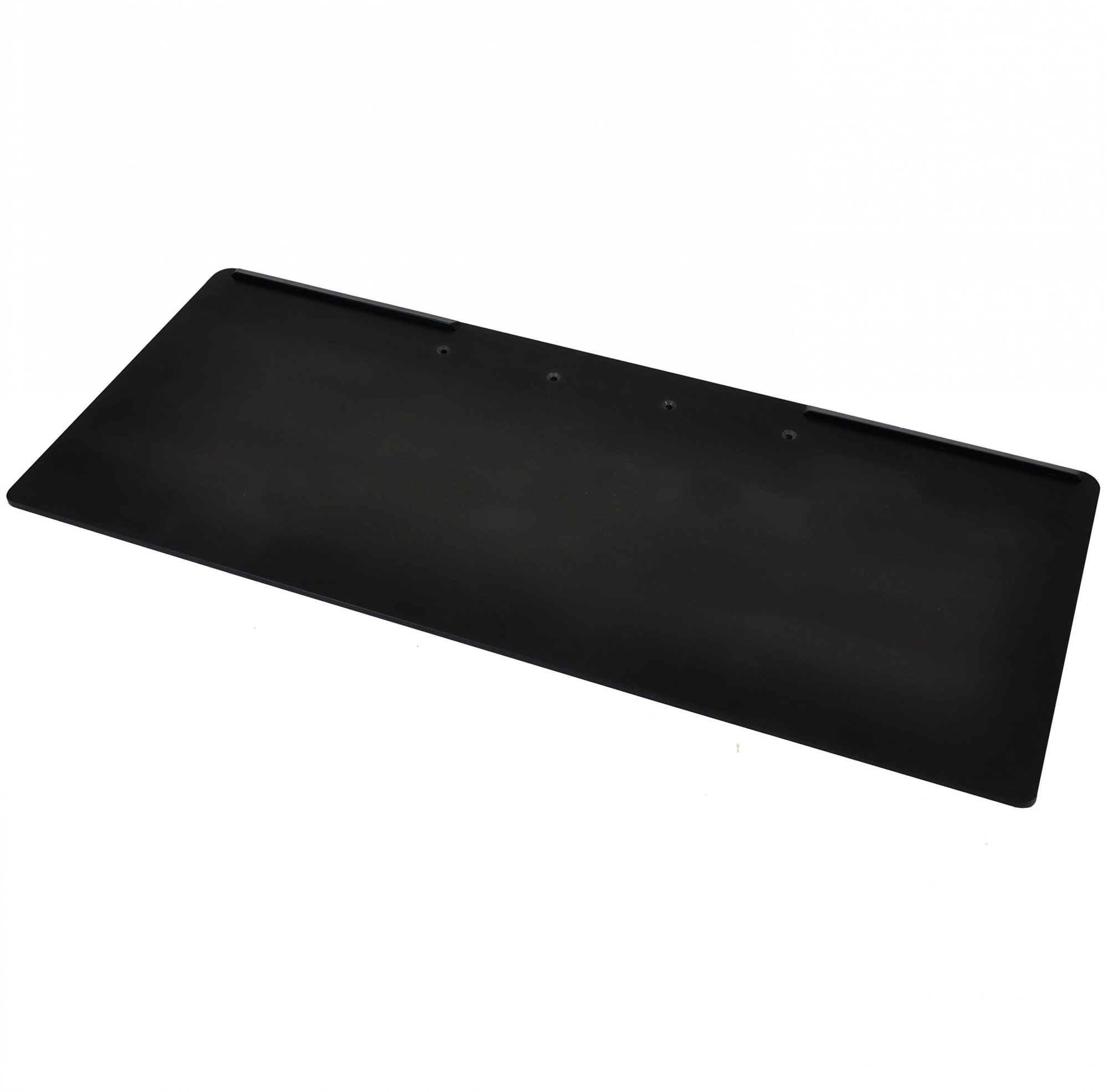

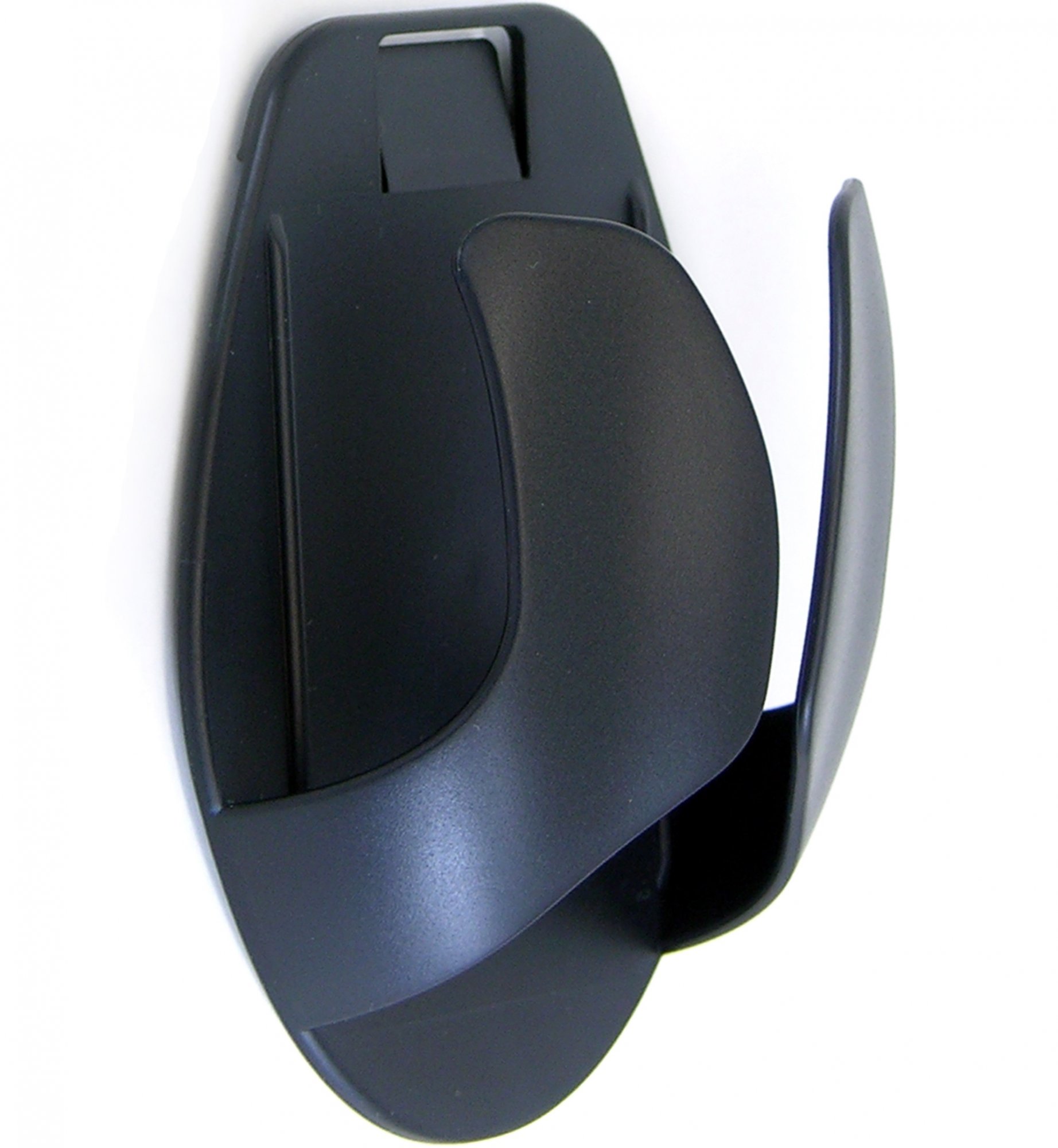

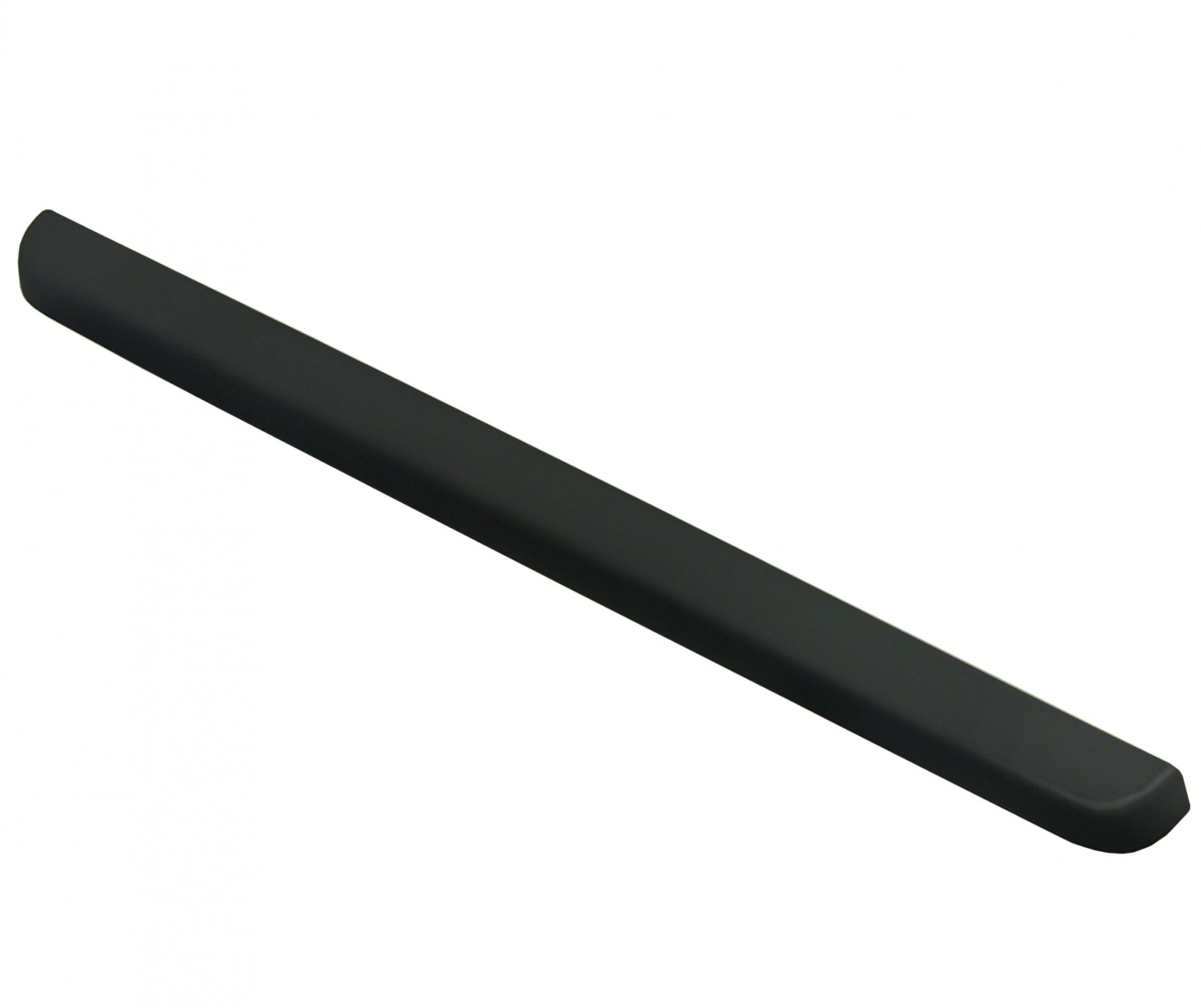

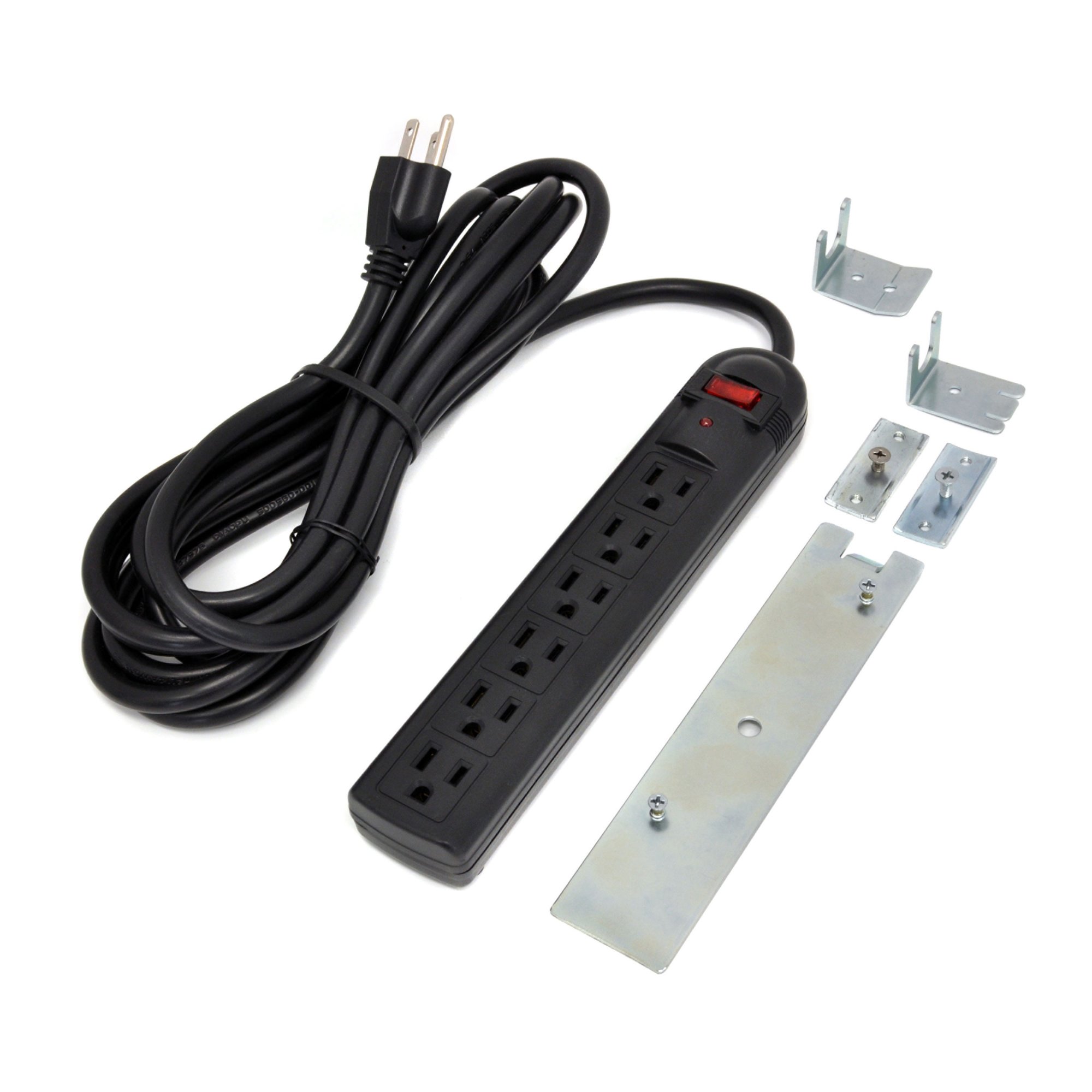

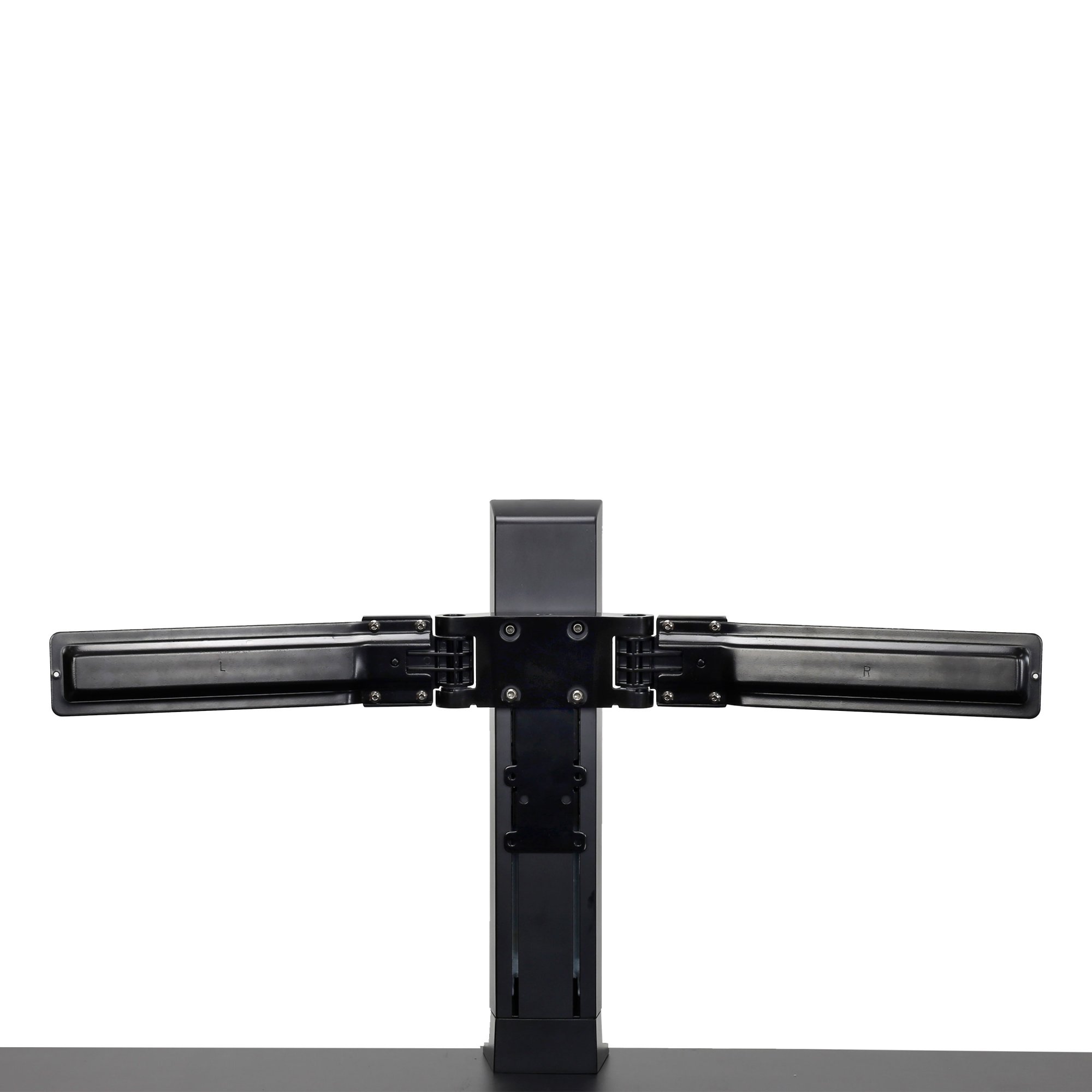

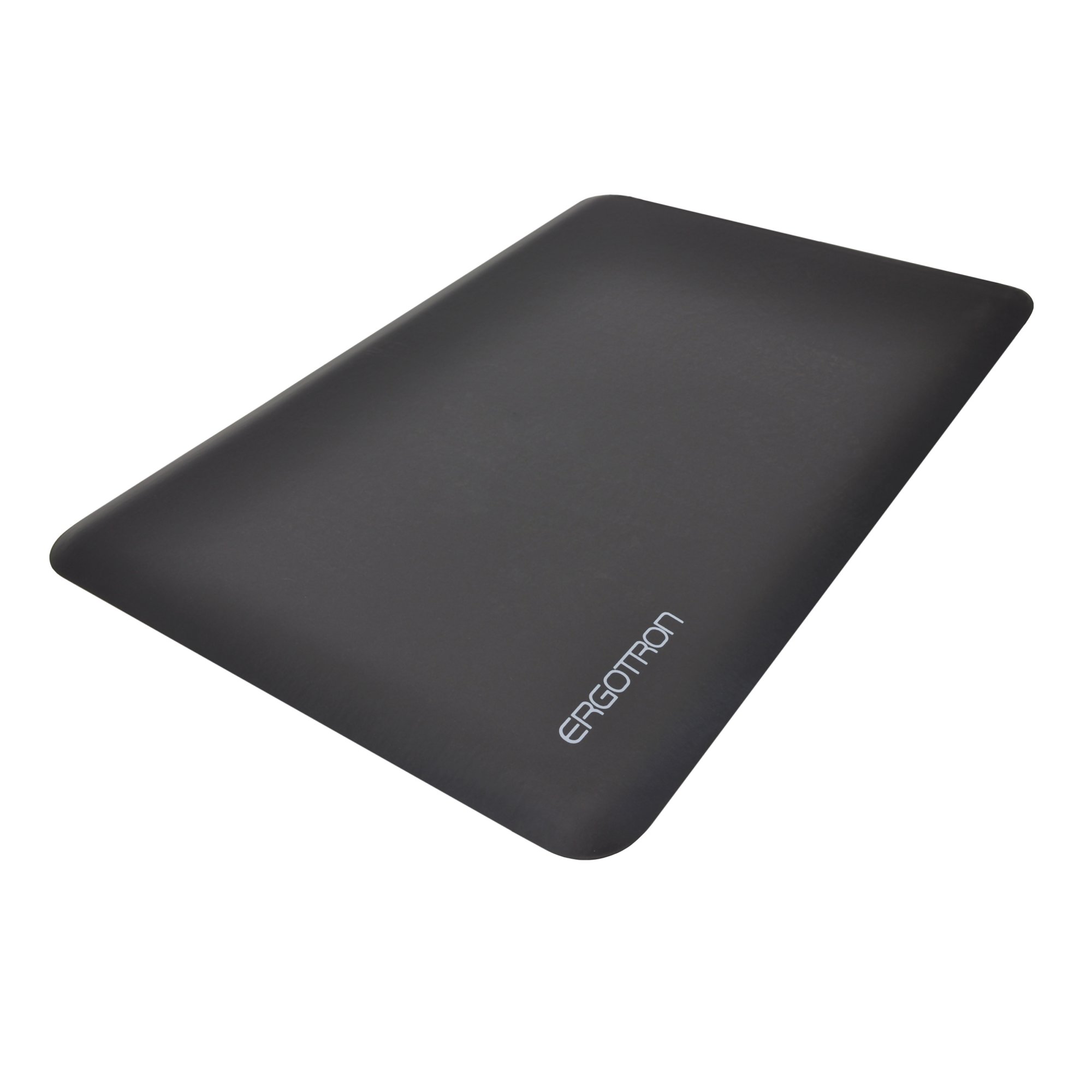

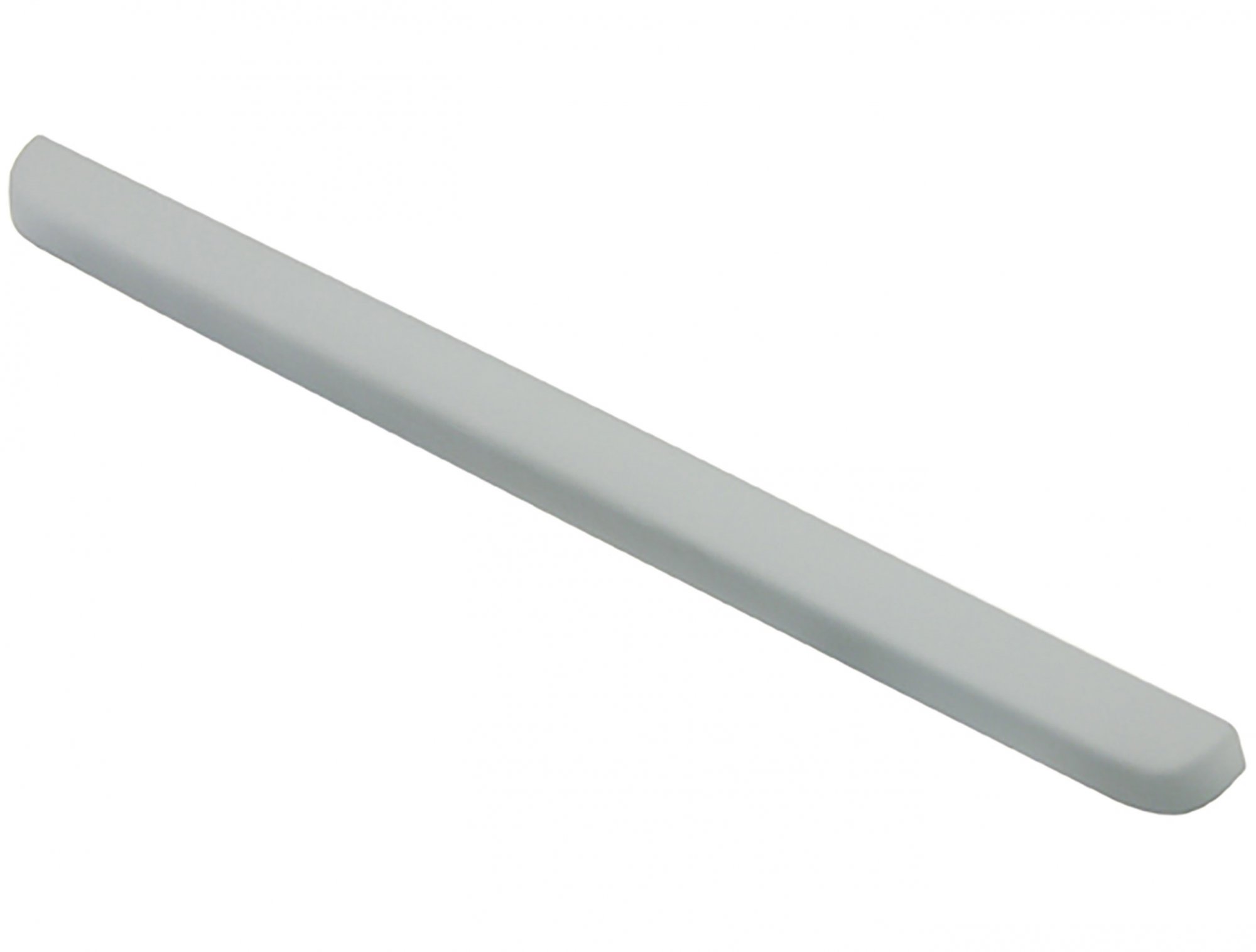

Recommended Accessories
Our Price: $561.99
Shipping: $56.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

Description

Transform any surface into a personalized height-adjustable desk. Get affordable ergonomics. Formerly, known as Ergotron 33-348-200.

Change from a sitting to a standing position whenever you want. EDW-4203D, LCD & laptop sit-stand workstation moves your keyboard and display in one simple motion, making computing comfortable for prolonged periods.

Technical Drawing

Technical drawing for Ergotron LCD & Laptop Sit-Stand Workstation with Worksurface and KB Tray

Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 20" Up to 25 lbs

11.3 kg

22.8"

58 cm

30° - 360° P/L MIS-D

Product Information

Part Number:

Description:

WorkFit-S Sit-Stand Workstation for Combination Laptop and LCD Monitor, with Worksurface and Keyboard Tray (black and polished aluminum)

Includes:

  • Height-adjustment column
  • Desk clamp
  • Crossbar
  • LCD pivot
  • Laptop Tray
  • Worksurface
  • Large keyboard tray

Weight Capacity:

Maximum load on height-adjustment assembly = 25 lbs (11.4 kg). LCD weight = 6–16 lbs (2.7–7.2 kg), laptop ≤ 10 lbs (2.7–4.5 kg), worksurface ≤ 5 lbs (2.3 kg), keyboard tray ≤ 5 lbs (2.3 kg). For proper operation the total weight when added together should not exceed 25 lbs (11.4 kg).

Lift Range:

LCD and keyboard adjust 18" (46 cm) in tandem; LCD adjusts 4.8" (12.2 cm) independently; maximum LCD height adjustment = 22.8" (58 cm). The worksurface restricts the vertical travel range of the LCD lift pivot; height adjustment of LCD without worksurface is 5" (13 cm).

Laptop:

Use laptop with a separate, external keyboard for proper ergonomics.

Desk Clamp:

Desk Clamp attaches to surface edge .47" to 2.4" (1.2 to 6 cm) thick.

Keyboard Tray:

Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity.

Worksurface Dimensions:

0.25"H x 23"W x 15"D (6 x 585 x 380 mm)

Keyboard Tray Dimensions:

0.25"H x 27"W x 9"D (6 x 685 x 226 mm)

Exterior:

Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder coated painted steel.

Mounting Standards:

VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

CF Technology:

Patented Constant Force (CF) lift-and-pivot motion technology

NOTE:

  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment.
  • Computer systems mounted on a WorkFit-S may require extra long power and video cables in order to span between standing and sitting heights.

Shipping Dimensions:

8"H x 23"W x 44"D (20 x 58 x 115 cm)

Shipping Weight:

45.5 lbs (20.7 kg)

Warranty:

Five (5) years

Benefits

For Computer Users

  • Improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. This work style encourages healthy movement throughout the day.
  • Counterbalanced adjustment points allow instantaneous, tool-free re-positioning while you work.
  • Promote fitness and comfort as you compute, reducing potential back and neck pain by adding movement into your work routine in a truly ergonomic workstation.
  • Easily and simultaneously lift keyboard and LCD screens to proper height for unsurpassed ergonomic comfort.
  • Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard and monitor positions for personalized computing.
  • Simply combine your laptop with an LCD display, separate keyboard and mouse to create a healthy and productive dual-display configuration.
  • Burn more calories by choosing to stand for periods of your work-day; periodic standing also promotes greater bone density and better sleep at night. WorkFit-S counteracts an increasingly sedentary work style.

For IT and Facilities Staff

  • IT deployment friendly - convert most work areas into a productive and complete computer workstation in minutes.
  • Modify existing office spaces or cubes by simply clamping a WorkFit-S on an existing worksurface, without the cost of expensive professional installers.
  • Safe and neat routing of cables.
  • Flexible, open-architecture design is scalable for future computer equipment.

For HR/Risk Management and Company Cost Savings

  • Manage the cost of healthcare premiums by promoting wellness in the daily work routine.
  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs.
  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases.
  • Standing supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees.
  • Studies show an average productivity increase of 20–30% when using two displays instead of one.
  • Studies in office ergonomics show productivity increases 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture.

Literature (Please open the following documents for more technical information)

Dimensional Illustrations - Ergotron 33-348-200 WorkFit-S LCD and Laptop Sit-Stand Workstation with KB Tray

 - pdf

Installation Manual - Ergotron 33348200 Height Adjustable Desk Mount with Worksurface and KB Tray

 - pdf

Product Sheet - Ergotron 33-348-200 Sit-Stand Desk Mount with KB Tray and Worksurface

 - pdf

Tips and Tracks - Ergotron WorkFit-S Sit-Stand Workstation

 - pdf

WorkFit Flyer - Ergotron Height Adjustable Sit Stand Desk Mount

 - pdf



Model ED
Manufacturer Ergodirect
Part Number EDW-4203D
Screen Size Up to 20 in
Weight Capacity Maxi load on height-adjustment assembly=25 lb (11.4 kg). LCD wt=6–16 lb (2.7–7.2 kg), laptop ≤ 10 lb (2.7–4.5 kg), worksurface ≤ 5 lb (2.3 kg), keyboard tray ≤ 5 lb (2.3 kg). For proper operation the total wt when added together should not exceed 25 lbs
Lift (58 cm) 22.8 in
Tilt 30 degree
Rotation (P/L) 360 degree
Worksurface Dimensions 0.25"H x 23"W x 15"D (6 x 585 x 380 mm)
Keyboard Tray Dimensions 0.25"H x 27"W x 9"D (6 x 685 x 226 mm)
Shipping Dimensions 8"H x 23"W x 44"D (20 x 58 x 115 cm)
Shipping Weight 45.5 lbs (20.7 kg)
Warranty Five (5) years
Desktop Thickness Range Desk Clamp attaches to surface edge .47" to 2.4" (1.2 to 6 cm) thick
Color Black and polished aluminum
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Mounting Options Desk Mounts
