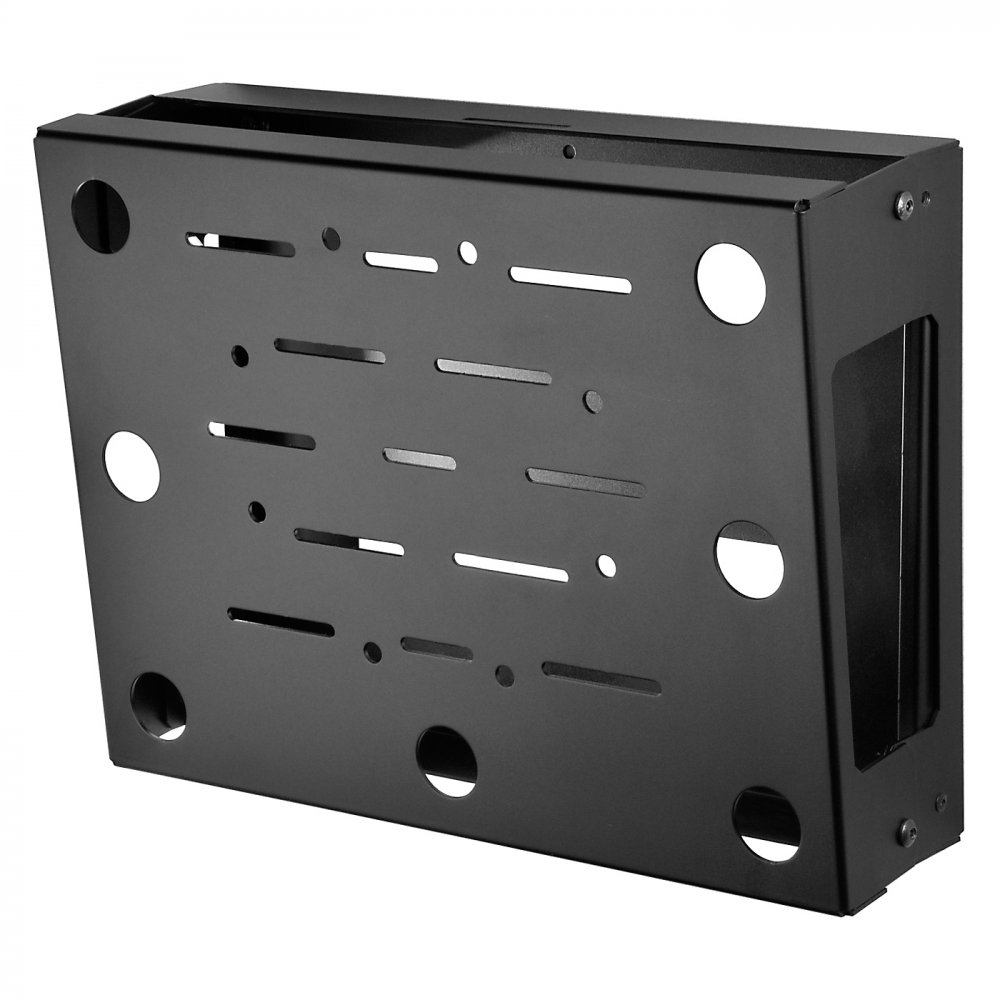

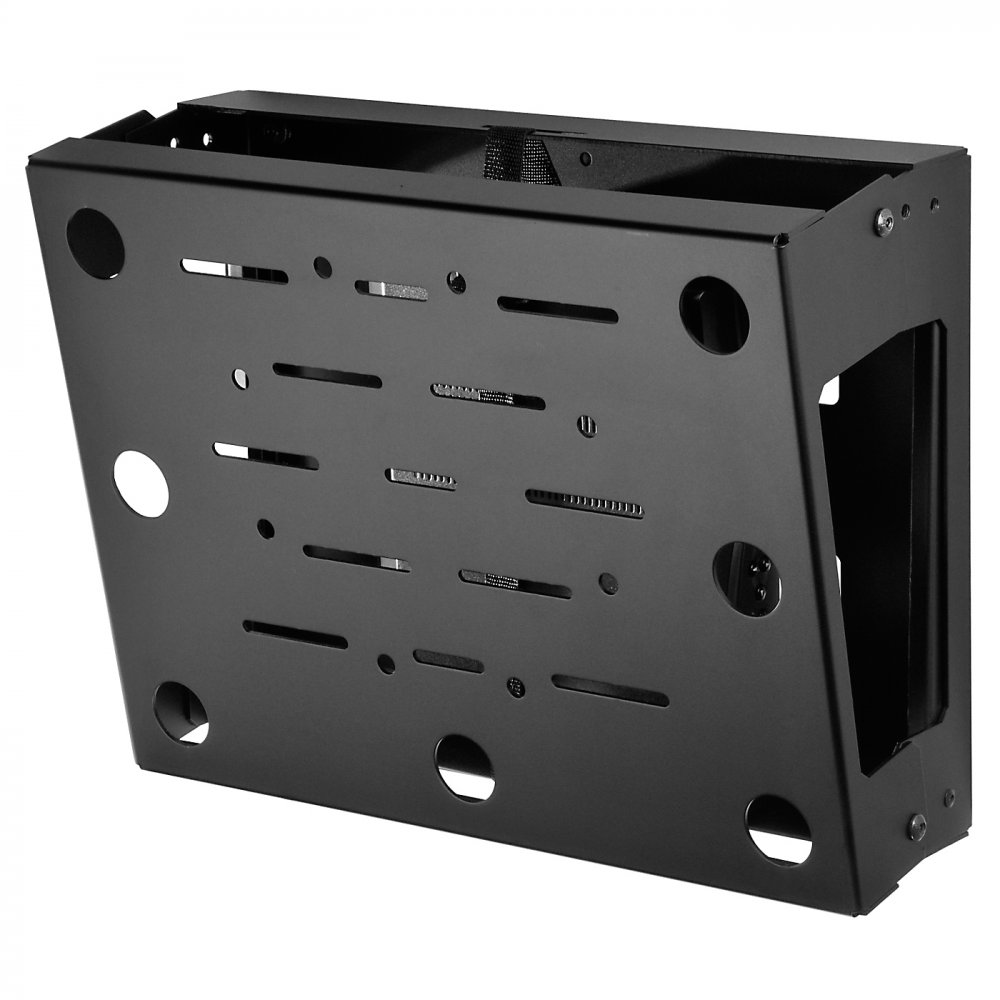

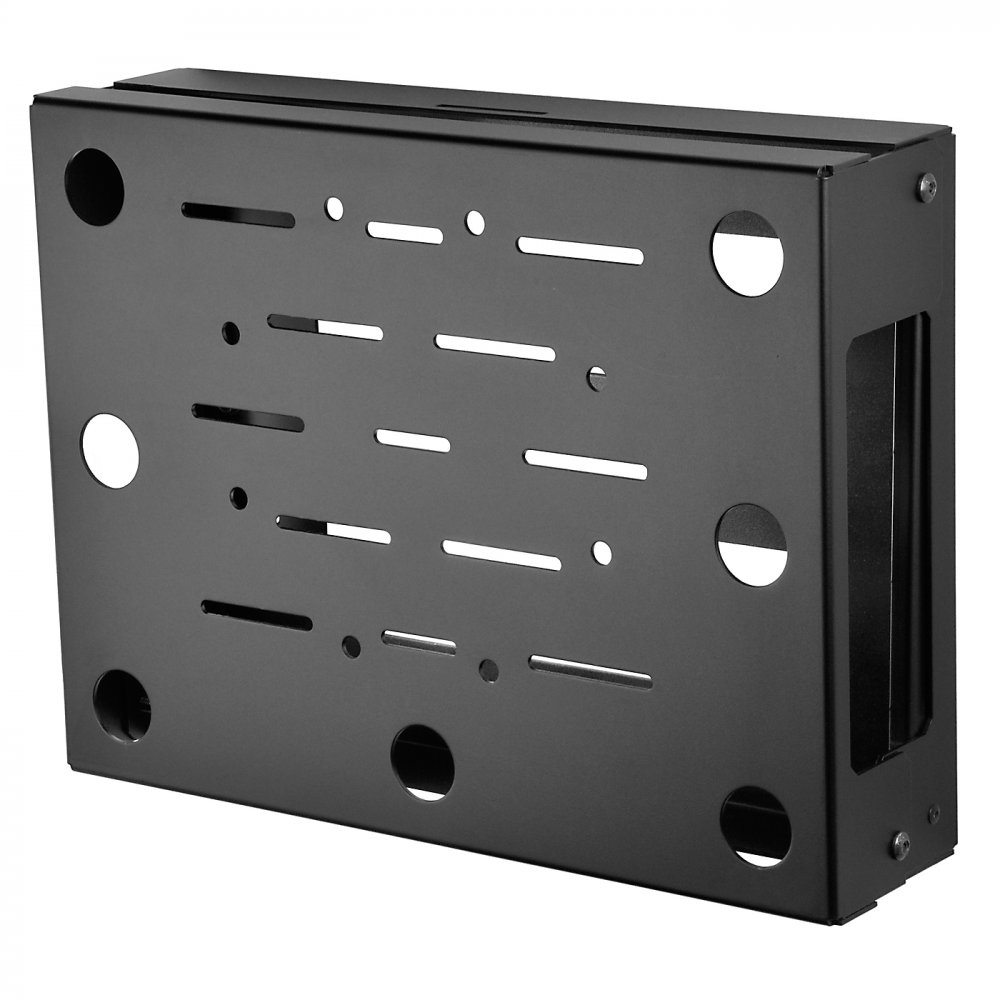

Peerless DS508 Tilt Wall Mount with Media Device Storage for 27" to 60" Displays

Product ID 17142


  • PLP compatible VESA 100 x 100, 200 x 200, 200 x 100 and 200 x 200mm compliant

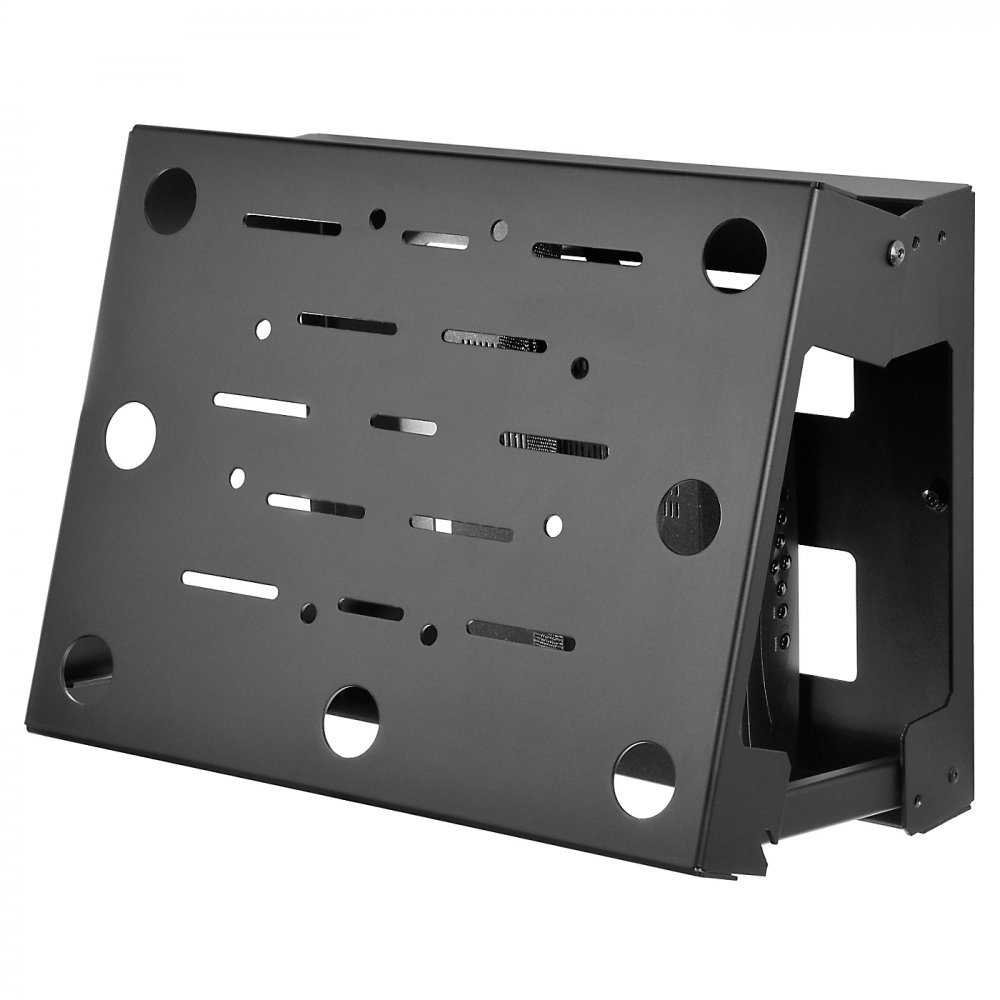

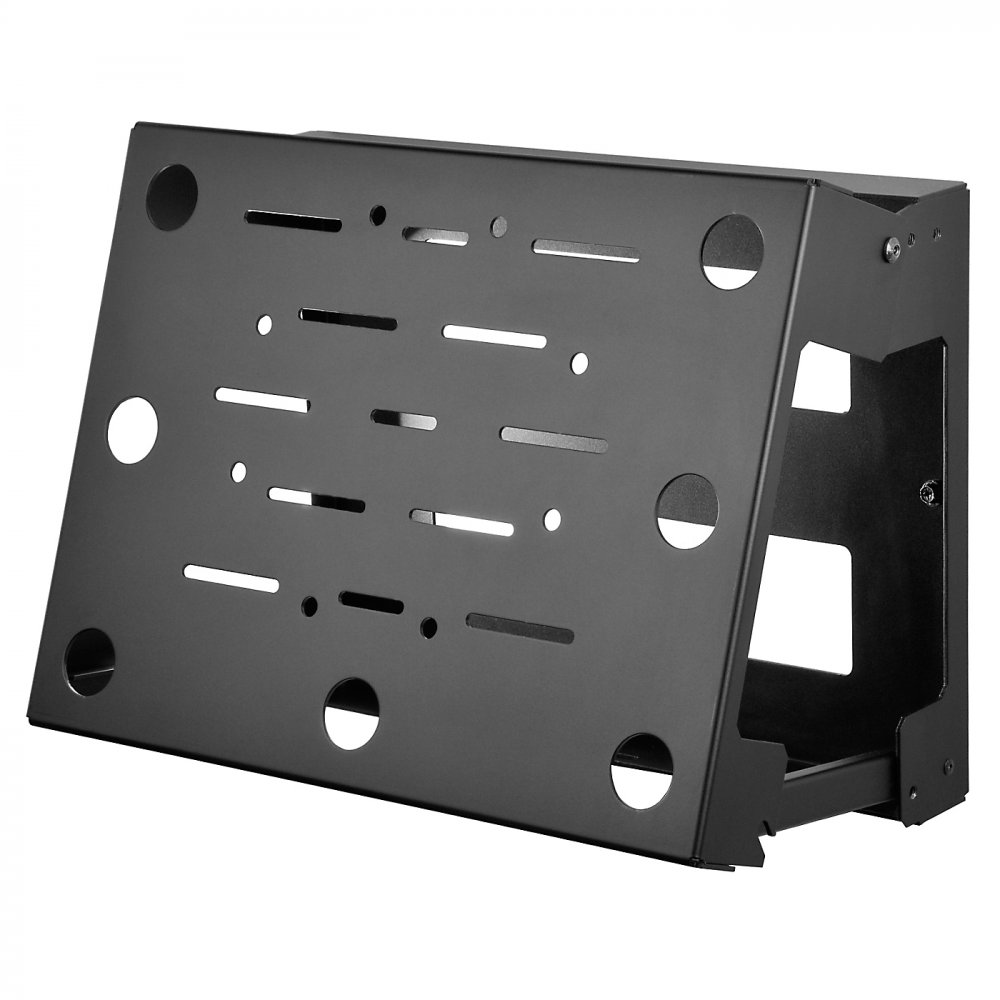

  • Tilts at 0, 5, & 10 degrees

  • Accommodates media device up to 3.95" x 14.9" x 13.3" (100 x 378 x 337mm)

  • Displays can be mounted in both landscape and portrait

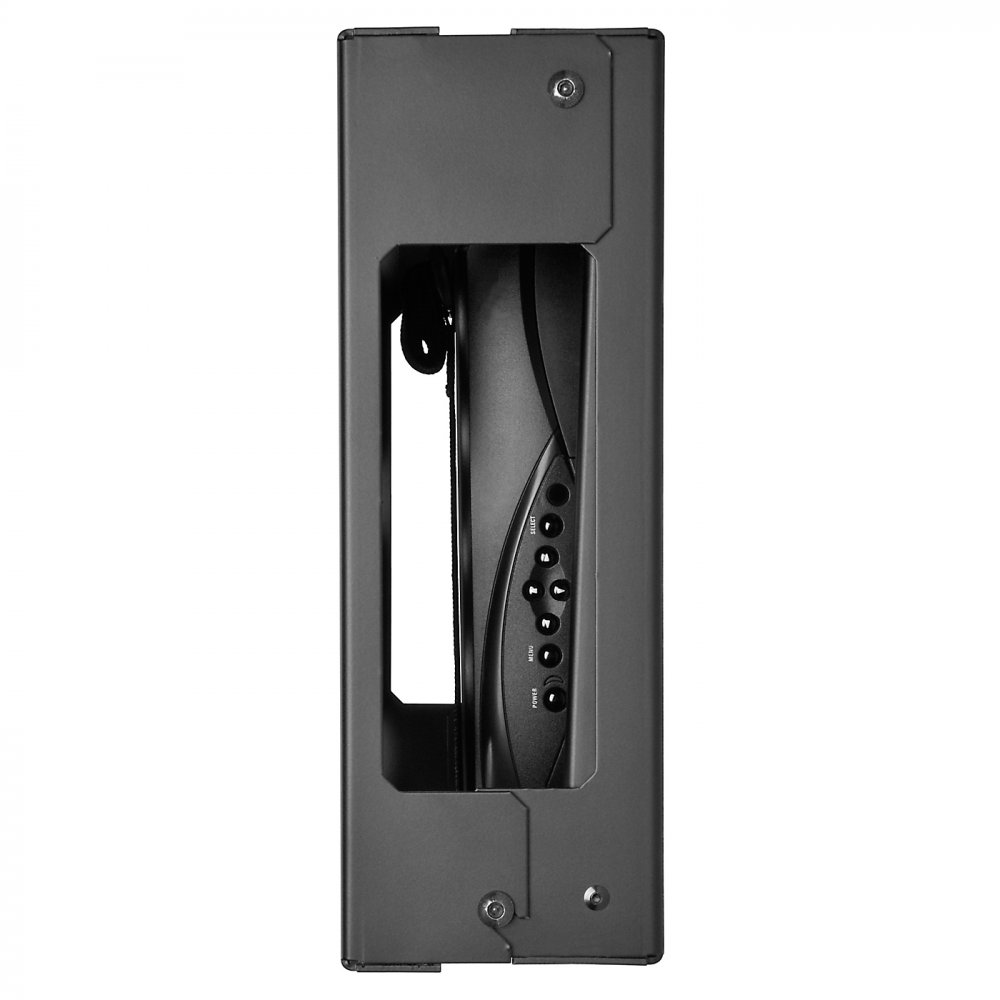

  • The media device can be removed from the bottom if replacement, repair, or maintenance is necessary without having to remove the TV

  • Rated to 200lb (91kg) for dual studs, 60lb (27kg) for single metal stud

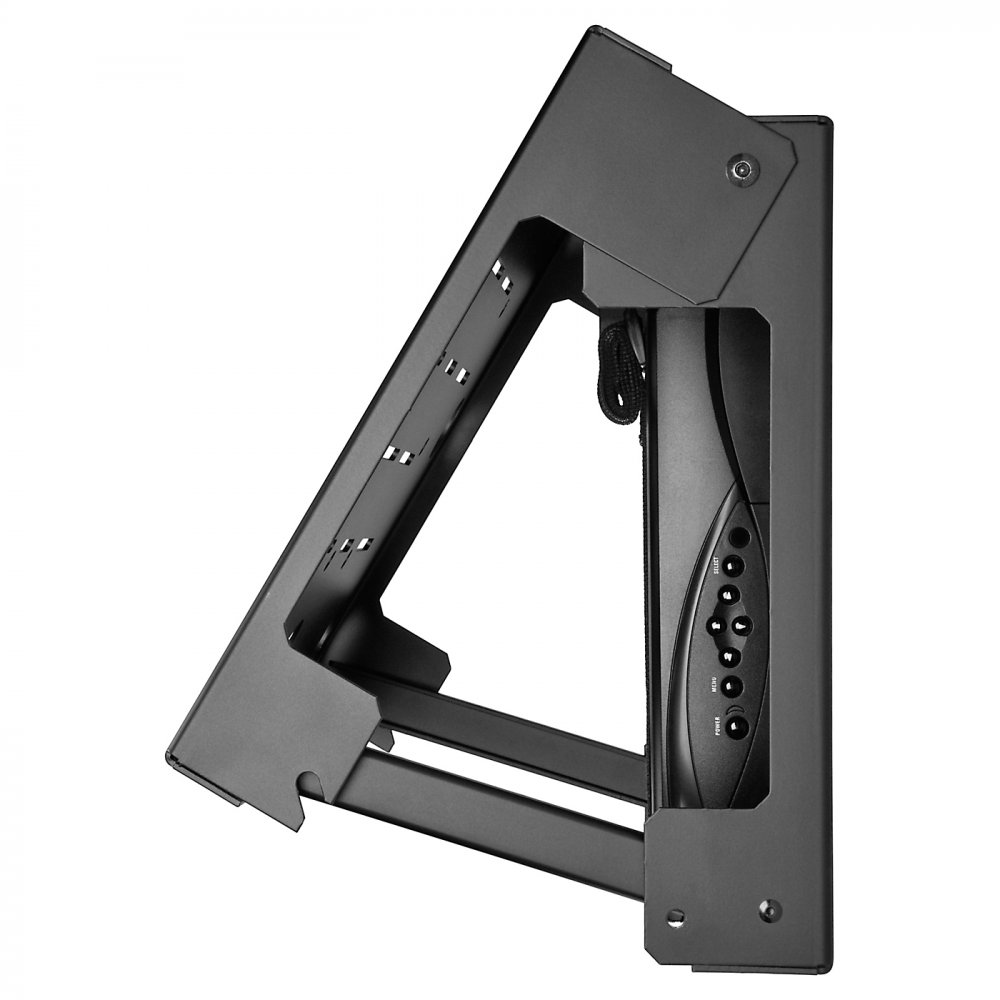

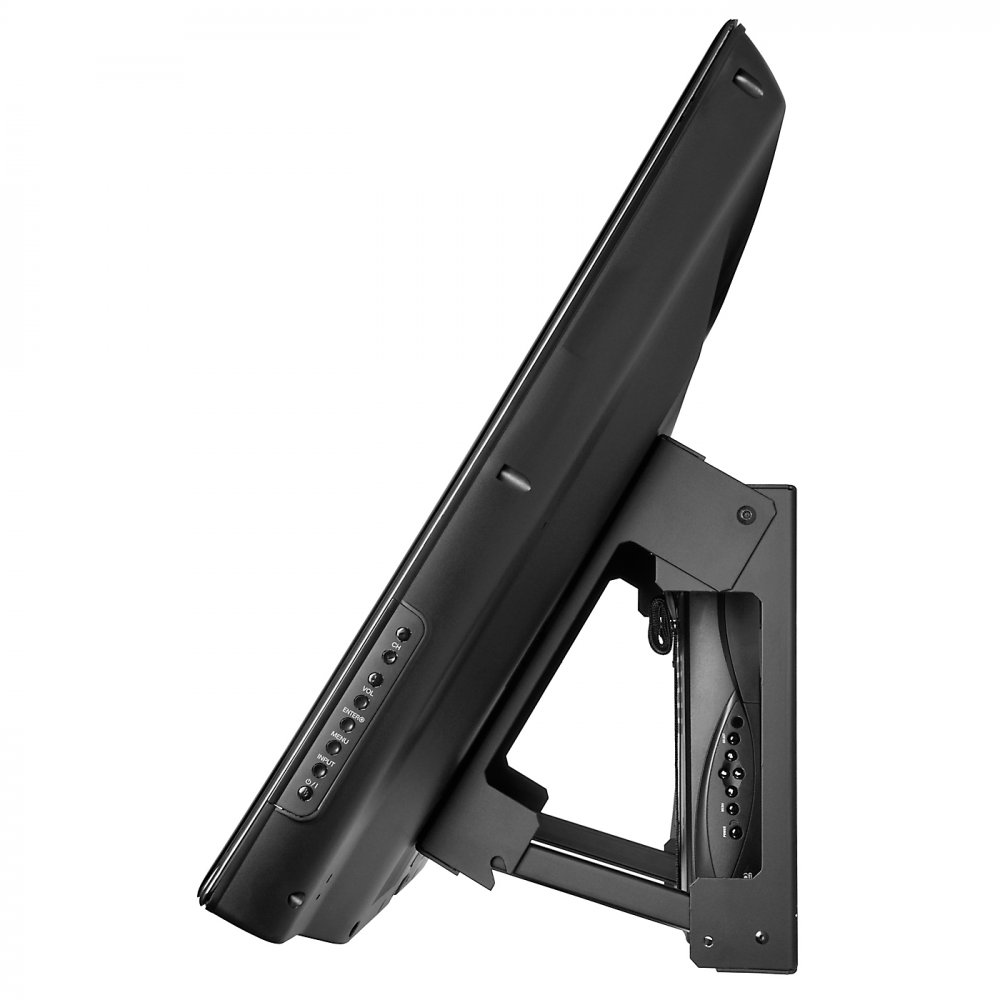

Peerless DS508 flat/tilt wall mount is an excellent dual-purpose solution for digital signage commercial applications, providing media controller housing and access as well as security features to protect your investment. The mount offers varying degrees of tilt for optimum viewing angles to provide the perfect viewing position. The open wall plate design gives plenty of wall access for installation of electrical outlets and running of input cables. Its box style design finishes off the look by hiding cables and external components from view for a truly clean, clutter-free installation. The bottom disengaging design allows the display to have a negative tilt enabling quick and easy access to the control equipment without having to remove the display. It comes standard with VESA 100/200mm compliant mounting hole patterns and is compatible with Peerless-AV’s PLP adaptor technology to accommodate a variety of flat panel displays. Functionality, a special housing area and security combined with serviceability make the DS508 the ideal solution for a variety of digital display applications.

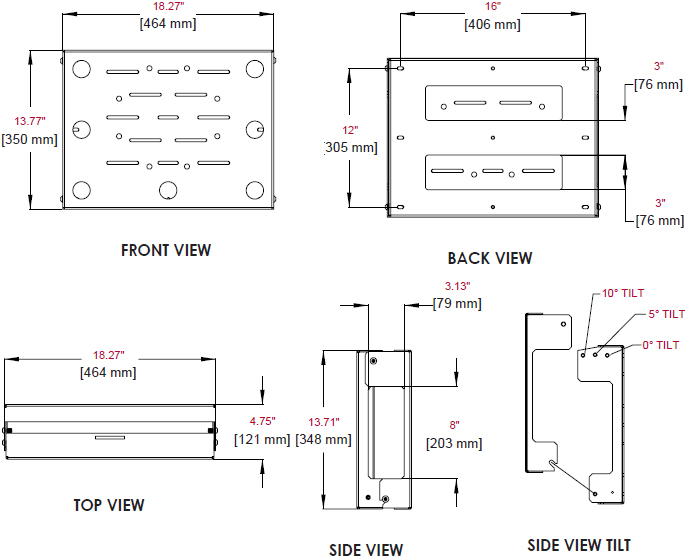

Technical Drawing

Technical drawing for Peerless DS508 Tilt Wall Mount with Media Device Storage


Color Black
Finish Powder Coat
Minimum to Maximum Screen Size

27" to 60"

VESA Pattern 100, 200 x 100, 200 x 200
Weight Capacity 200 lbs (90kg)

0, 5, 10 degree

Security Features Security Hardware
Package Contents
  • Wall Mount

  • Fasteners

Product Dimensions

18.27" x 13.77" x 4.75" (464 x 350 x 121mm)

Product Weight

19 lbs (8.6kg)

Shipping Dimensions

23.88" x 22.38" x 5.13" (607 x 568 x 131mm)

Shipping Weight

24.3 lbs (11.1 kg)

UPC Code 735029258186
Model DS508
Manufacturer Peerless Mounts
Part Number DS508
UPC 735029258186
Color Black
Dimensions (W x H x D) 18.27" x 13.77" x 4.75" (464 x 350 x 121mm)
Weight 19 lbs (8.6kg)
Weight Capacity 200 lb (91kg)
Shipping Dimensions 23.88" x 22.38" x 5.13" (607 x 568 x 131mm)
Shipping Weight 24.3 lbs (11.1 kg)
Monitor Size 27" to 60"
Tilt 0, 5 and 10 degree
Mounting Pattern VESA 100 x 100, 200 x 100 and 200 x 200mm
Warranty Limited 5 year
Mounting Options Wall
Finish Powder Coat
Number of Monitors 1 Monitor

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranties and Returns

Limited Warranty

Peerless Industries, Inc. (Peerless-AV) warrants to original end-users of Peerless-AV products that Peerless-AV products will be free from defects in material and workmanship, under normal use, for the periods listed below, from the date of purchase by the original end-user. At its option, Peerless-AV will repair or replace with new or refurbished products or parts, or refund the purchase price of, any Peerless-AV product which fails to conform with this warranty.

In no event shall the duration of any implied warranty of merchantability or fitness for a particular purpose be longer than the period of the applicable express warranty set forth above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless-AV, (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless-AV’s instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third-party actions and force majeure. This warranty also does not cover corrosion or rust resulting from damaged, scratched or chipped paint or other surfaces.

In no event shall Peerless-AV be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured by a security device which may be included with the Peerless-AV product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty is in lieu of all other warranties, express or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless-AV in connection with the sale of any Peerless-AV product.
This warranty gives specific legal rights, and you may also have other rights which vary from state to state.

Product Warranty Period
Mounts 5 years
Kiosk Enclosures 5 years
Furniture 1 year
Cables 25 years
Cleaning Products 1 year
Power Products 1 year
Electronic Products and Components 1 year
Xtreme Displays, Ultra View TVs 2 years
Interactive 1 year
