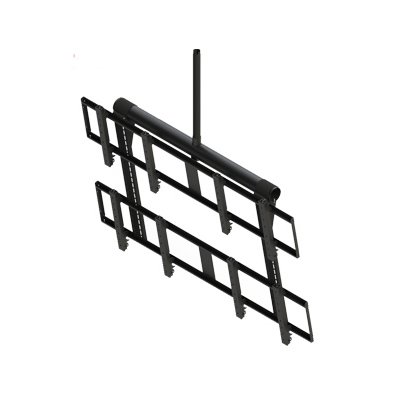

Peerless DS-VWT955-2X2 Digital Signage 2x2 Video Wall Ceiling Mount
Fixed or adjustable length column and ceiling plate (sold separately) are needed.
Description

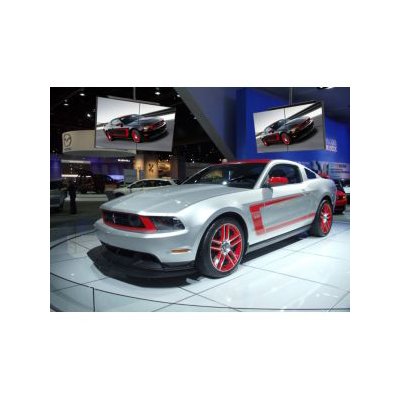

Video wall displays no longer need to be limited to just walls and carts. With the Peerless DS-VWT955-2X2, a video wall display can now be mounted to a ceiling. The tool-less micro adjustable design provides placement of four displays in a 2 x 2 configuration, neatly aligned on the same plane. The tilting adjustment options of 5, 10, 15 and 20 degrees means you can be assured of the perfect viewing angle for your application. Ideal for department stores, entertainment venues or other large public areas. Compatible with Peerless fixed length and adjustable length columns.

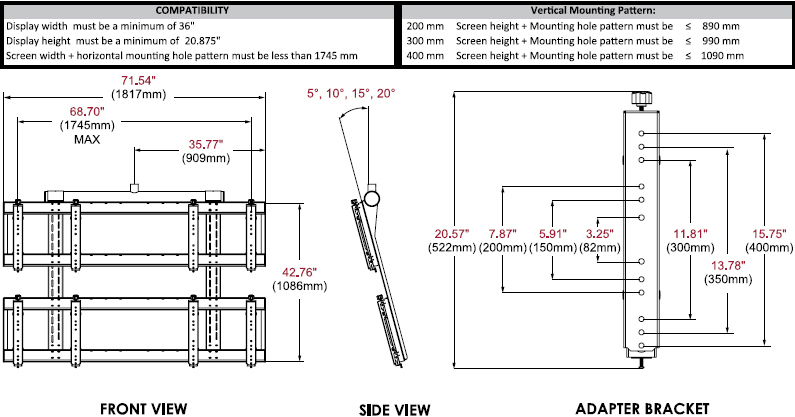

Technical Drawing
Features
- Ceiling mounted 2 x 2 video wall solution
- Supports mounting hole patterns of VESA 200 x 200 up to 600 x 400mm. Additional patterns supported with adaptor plates
- Tilts options of 5°, 10°, 15° and 20°
- Eight points of tool-less micro adjustment provide precise alignment
- Compatible with Peerless standard columns
- Included security hardware deters tampering and loss
Technical Specifications
|
Minimum to Maximum Screen Size |
40" to 55" |
|
Mounting Pattern |
Up to 600 x 400 |
|
Product Weight |
85lb (39kg) |
|
Weight Capacity |
400lb (182kg) |
|
Color |
Black |
|
Finish |
Powder Coat |
|
Security Features |
Security Hardware |
|
Interlock Increments |
0, +5, +10, +15 degree |
|
Product Dimensions (W x H x D) |
71.54" x 49.0" x 10.5" (1817 x 1244 x 267mm) |
|
Shipping Dimensions (L x W x H) |
|
|
Shipping Weight |
95lb (43kg) |
| Units in Package | 1 |
Literature (Please open the following documents for more technical information)
|
Product Sheet - Peerless DS-VWT955-2x2 Digital Signage 2x2 Video Wall Ceiling Mount |
|
|
Installation Instructions - Peerless DS-VWT955-2x2 Digital Signage Video Wall Ceiling Mount |
|
- pdfProduct Options/Accessories
| Model | DS-VWT955-2X2 |
| Manufacturer | Peerless Mounts |
| Part Number | DS-VWT955-2X2 |
| UPC | 735029283485 |
| Color | Black |
| Monitor Size | 40" to 55" |
| Dimensions (W x H x D) | 71.54" x 49.0" x 10.5" (1817 x 1244 x 267mm) |
| Weight | 85 lb (39 kg) |
| Weight Capacity | 400 lb (182 kg) |
| Shipping Dimensions | Box 1: 67.4" x 17.1" x 4.7" (1712 x 435 x 119mm) Box 2: 73.5" x 17.1" x 4.7" (1867 x 435 x 119mm) |
| Shipping Weight | 95 lb (43 kg) |
| Mounting Pattern | VESA 200 x 200 up to 600 x 400mm |
| Tilt | 5, 10, 15 and 20 degree |
| Warranty | Limited 5 year |
