$528.00

Chief Kontour Dynamic Wall Mount, 1 Monitor - K1W110B or K1W110S

Note: K1W110S is silver finished product with grey accents

Product ID 17874

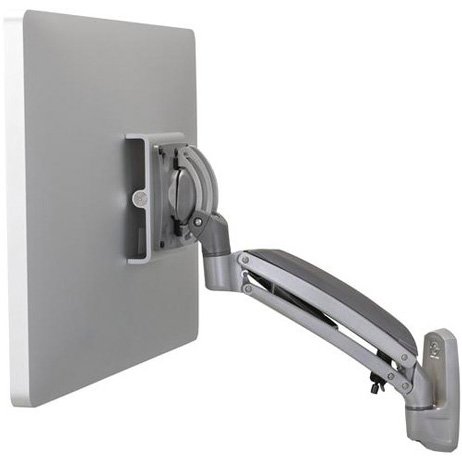

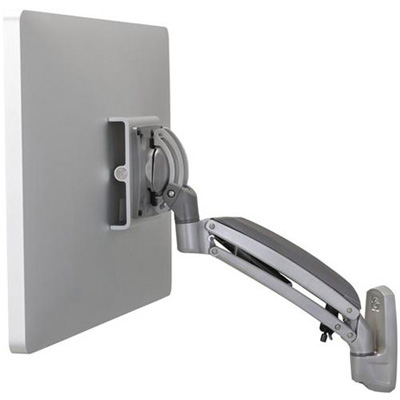

Chief Kontour Dynamic Wall Mount, 1 Monitor - K1W110B or K1W110S
Black color

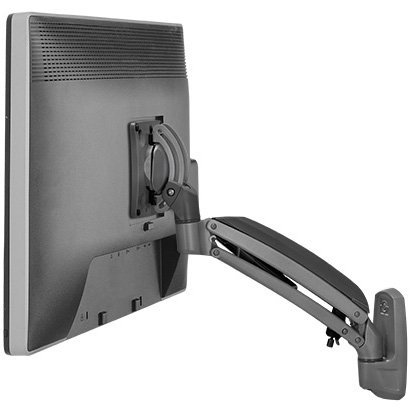

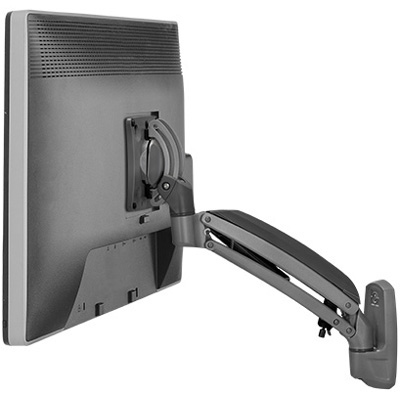

Chief Kontour Dynamic Wall Mount, 1 Monitor - K1W110B or K1W110S
Black color

Description

Chief K1W110 enhanced Kontour K1W Dynamic Height-Adjustable Wall Mounts are perfect solutions for the office, healthcare facilities, and public spaces.

Key enhancements have been made to Chief's patented Centris Extreme Tilt technology, for the ultimate in effortless fingertip monitor positioning. Kontour monitor mounts float your displays in the optimal ergonomic position to create a more productive and comfortable work environment.

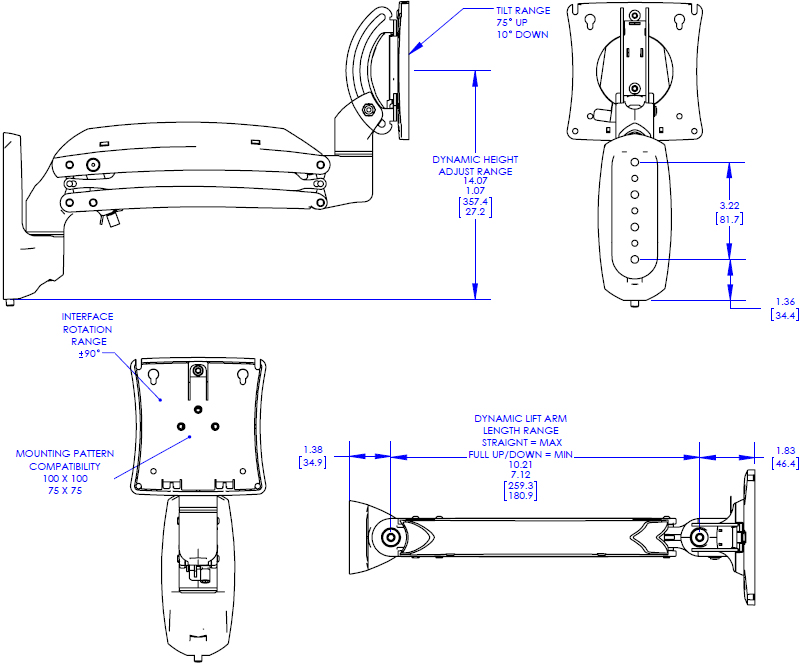

Technical Drawing

Technical Drawing for Chief Kontour Dynamic Wall Mount, 1 Monitor - K1W110B or K1W110S

Specifications

Certifications TAA Compliant
Color Black, Silver
Compatible with OFB Furniture Brackets Yes
Dynamic Height Adjustment 13" (330.2 mm)
Maximum Extension 13.42" (340.9 mm)
Minimum Depth 2.45" (62.2 mm)
Mounting Pattern Compatibility (Universal Versions) VESA 75 x 75mm, 100 x 100mm
Notes Weight capacity is per monitor
Number of Monitors 1
Shipping Weight 7.65 lbs (3.47 kg)
Tilt +75°, -10°
Typical Screen Sizes 10 - 30" (254 - 762 mm) diagonals
Weight Capacity 5 - 25 lbs (2.3 - 11.3 kg)
Orientation Landscape, Portrait

Features

  • Best-in-class weight capacity range of 5 to 25 lbs. makes specification simple

  • No need to pay more for that "heavy duty" arm to support your Apple monitor or All-in-One

  • Sleek, solidly-constructed forged aluminum arms in subtle silver and black finishes

  • Enhanced fingertip positioning of monitor(s) for optimal viewing comfort, whether sitting or standing

  • 13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology

  • Enhanced Patented Centris Extreme Tilt provides +75°, -10° of effortless tilt

  • Tool-free cable management covers for a clean, professional look

  • K1W-series Wall Mounts easily install to any wall using the fast-installing Wall Plate, or can be mounted to most slatwall products using OFBLU or OFBU accessory

  • K1S-series Slatwall Mounts easily connect to most Slatwall products using the included OFBLU or OFBU universal slatwall interface brackets

  • With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits

  • Most Kontour K1 products are TAA-compliant - see respective product pages for details

Model K1W110B, K1W110S
Manufacturer Chief Mounts
Part Number K1W110B, K1W110S
UPC 841872160399
Color Black, Silver
Dynamic Height Adjustment 13" (330.2 mm)
Maximum Extension 13.42" (340.9 mm)
Minimum Depth 2.45" (62.2 mm)
Mounting Pattern 75 x 75mm, 100 x 100mm VESA
Shipping Weight 7.65 lbs (3.47 kg)
Tilt +75 degree, -10 degree
Monitor Size 10 - 30" (254 - 762 mm) diagonals
Weight Capacity 5 - 25 lbs (2.3 - 11.3 kg)
Mounting Options Wall
Monitor Arm Types 1 Monitor
Number of Monitors 1 Monitor
Orientation Landscape, Portrait

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
