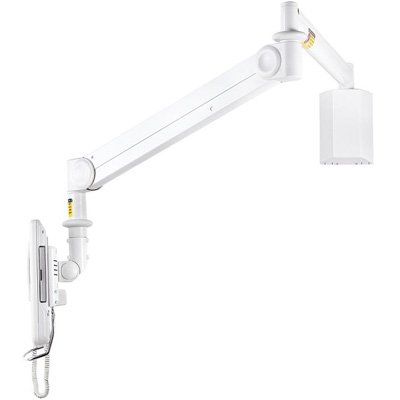

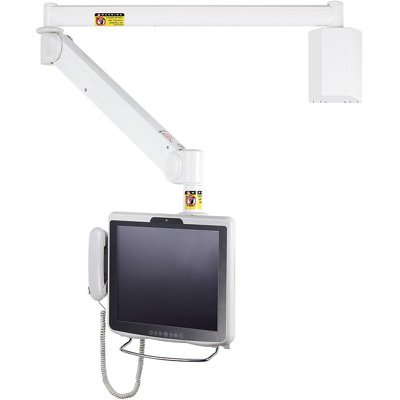

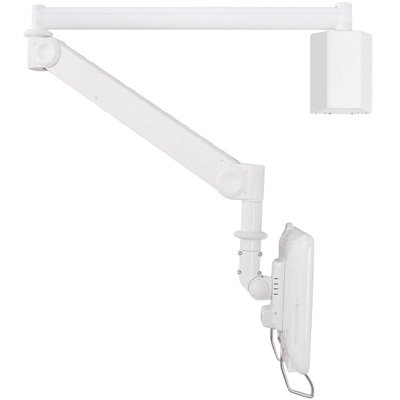

Cotytech MW-M123PN Long Reach Wall Mount Medical Arm

Product ID 17879



Description

Our new Long Reach LCD Monitor Arm MW-M123PN features built-in gas pneumatic spring design for easy and smooth movements, allowing instant floating of LCD monitor from position to position. This LCD wall mount provides maximum of 72" (182.5cm) straight extension. The articulating arm is a perfect solution if you need to float your LCD monitor around or above settings like workstation, manufacturing equipment, assembly line etc.

The wall mount solution can be rotated 370° at arm, 370° at monitor end and 180° at the wall connection for optimal viewing angles. When not in use, the unit can be folded up and out of the way, an excellent space-saving feature for any room. Handle design facilitates easy operation and movement. This simple and contemporary looking durable arm is made of aluminum alloy with plastic cover outside. It's ergonomic, space saving attributes and contemporary look make the LCD wall mount a practical choice in businesses, office, doctors’ office, clinics, dental operatories, hospitals and factories.

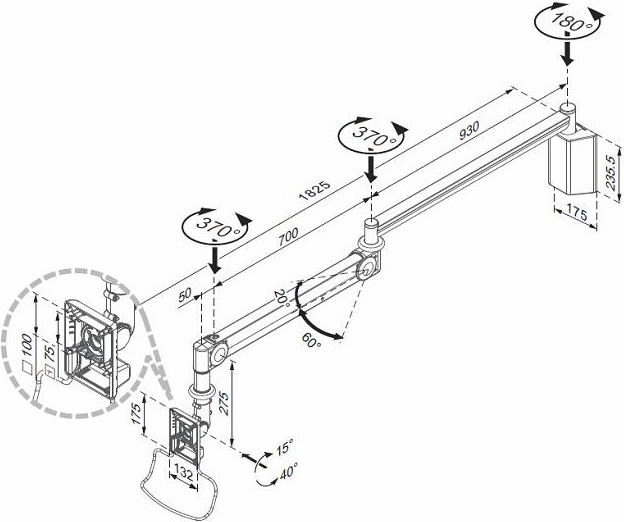

Technical Drawing



Technical drawing for Cotytech MW-M123PN Long Reach Wall Mount Medical Arm



Specifications

Part Number

MW-M123PN

Weight Capacity

Supports 2.2 - 13.2 lb (1 - 6 kg)

Tilt

15°/- 40° (display) and 20°/- 60° (arm)

Maximum Extension

72" (182.5cm)

Rotation

370° (arm); 370° (display); 180° (wall)

Mounting Pattern

VESA compliant: 75x75 to 100x100

Color

White





Mounting Pattern

You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of your LCD is different and we are very glad to help you out!

VESA Mounting Pattern



Comparison Chart



Model

Ceiling

Wall

Weight Capacity

Keyboard Holder

Monitor Back Cable Cover

Wall Box

MW-M123PN

-

Yes

13.2 lbs

Optional

Yes

-

MW-M23PKN

-

Yes

13.2 lbs

Yes

Yes

-

MW-M123WBN

-

Yes

13.2 lbs

Optional

Yes

Yes

MW-M23WBKN

-

Yes

13.2 lbs

Yes

Yes

Yes

MW-M125PN

-

Yes

26.4 lbs

Optional

Yes

-

MW-M25PKN

-

Yes

26.4 lbs

Yes

Yes

-

MW-M125WBN

-

Yes

26.4 lbs

-

Yes

Yes

MW-M25WBKN

-

Yes

26.4 lbs

Yes

Yes

Yes

MW-M16P

-

Yes

15.4 lbs

Optional

Yes

-

CM-M123N

Yes

-

13.2 lbs

Optional

Yes

N/A

CM-M23KN

Yes

-

13.2 lbs

Yes

Yes

N/A

MW-M125PN

-

Yes

26.4 lbs

Optional

Yes

N/A

CM-M25KN

Yes

-

26.4 lbs

Yes

Yes

N/A

MW-M25WB

-

Yes

26.4 lbs

Optional

Yes

Yes

MW-M25WBK

-

Yes

26.4 lbs

Yes

Yes

Yes



Product Options/Accessories

Frequently Asked Questions

q Will this unit allow the monitor to face back towards the wall so it is visible to someone confined to bed?
a

When MW-M123PN is mounted on the wall, the side where the patient's head is, you may pull the arm in front of the patient and let the screen face him/her so that the patient can watch the screen.

Model MW-M123PN
Manufacturer Cotytech
Part Number MW-M123PN
Color White
Weight Capacity 2.2 - 13.2 lb (1 - 6 kg)
Tilt (display) 15 / -40 degree and (arm) 20 / -60 degree
Maximum Extension Up to 72" (182.5 cm)
Rotation (arm) 370 degree; (display) 370 degree; (wall) 180 degree
Mounting Pattern VESA 75x75 to 100x100
Mounting Options Wall
Monitor Arm Types 1 Monitor
