$1,689.12

Innovative BILD-3/3 Bild 3 Over 3 Monitor Mount


Product ID 18063
HIGHLIGHTS

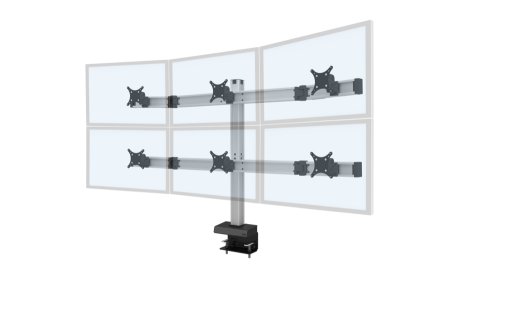

Innovative BILD-3/3 Bild 3 Over 3 Monitor Mount
Innovative BILD-3/3 Bild 3 Over 3 Monitor Mount

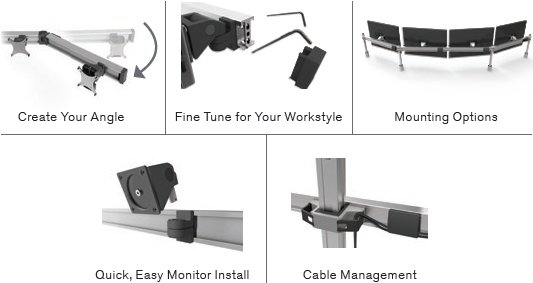

 	Innovative BILD features
Silver Finish BILD-3/3-CM-124 Back View
Silver Finish BILD-3/3-CM-124
BILD Beam Joint
BILD Cable Management
BILD Mount Cup Assembly
Innovative BILD-3/3 Bild 3 Over 3 Monitor Mount
Innovative BILD-3/3 Bild 3 Over 3 Monitor Mount
 	Innovative BILD features
Silver Finish BILD-3/3-CM-124 Back View
Silver Finish BILD-3/3-CM-124
BILD Beam Joint
BILD Cable Management
BILD Mount Cup Assembly

Highlights

  • Supports monitors weighing up to 30 lbs each
  • Spring tilter is recommended for heavier monitors to achieve smoother adjustment for all monitors
  • Designed and Assembled in the USA

Description

Innovative BILD-3/3 Bild 3 over 3 monitor stand suspends six monitors in two rows above your work surface. This multi-monitor mount, assembled in the USA, features a robust and solid construction for durable performance. Designed for use in a wide range of work settings, the Bild 3 over 3 is a highly adjustable monitor stand, enabling monitors to easily be installed in portrait or landscape orientations with varying tilt up to 200 degrees. Configure your Bild - Quickly and easily go from 2 to 16 plus monitors - all without wasting parts. Our new Bild multi-monitor mount is an easily adjustable monitor mount solution offering an endless number of configurations for installing multiple monitors. Bild enables the user to build, adjust and adapt with ease for their specific application.



This multi-monitor stand mounts six monitors - two rows of three monitors side-by-side. The 3 over 3 features a robust, solid construction with a clean aesthetic design. Choose from several mounting options.



Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to the desired position. The BILD 3/3 is available with the standard tilter 8336-175 as the default, which works fine with compatible monitors weighing less than 30 lbs. However you have the option to replace the six standard 8336-175 tilters with the 8377-175 spring assisted tilters. Now as you can see in the image below both look very similar.

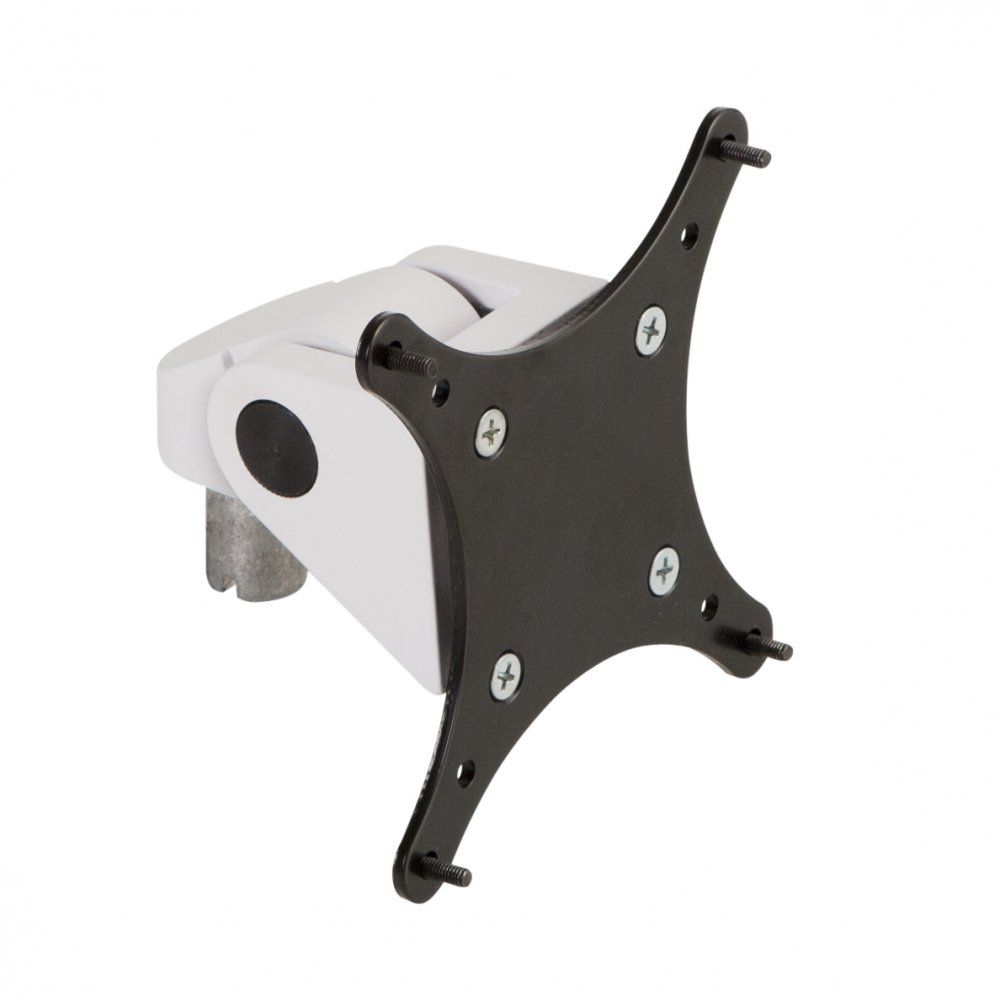

Innovative 8377-175 Spring Assisted Tilter Head
8377-175 Spring Assisted Tilter
Innovative 8336-175 Standard Monitor Tilter Head
8336-175 Standard Monitor Tilter


However 8377-175 differs from 8336-175 because of the presence of a spring as you can see in the image below. Technically the 8377-175 has a higher weight capacity (2-55 lbs) than the 8336-175 (2-45 lbs), but the springs in 8377-175 allow for a smoother monitor movement. Less friction force is required to hold the monitor load because of the support from springs and less friction leads to a seamless movement.


Front View of Innovative 8336-175 and 8377-175 TilterBack View of Innovative 8336-175 and 8377-175 Tilter


Irrespective of your tilter choice, you can add the 8473 height adjust adapter to adjust each monitor by 1.5 inches. The 8473 adapter gets attached between the tilter and the VESA adapter as shown in the image below.



Fine Tune Height Adjust Tilter

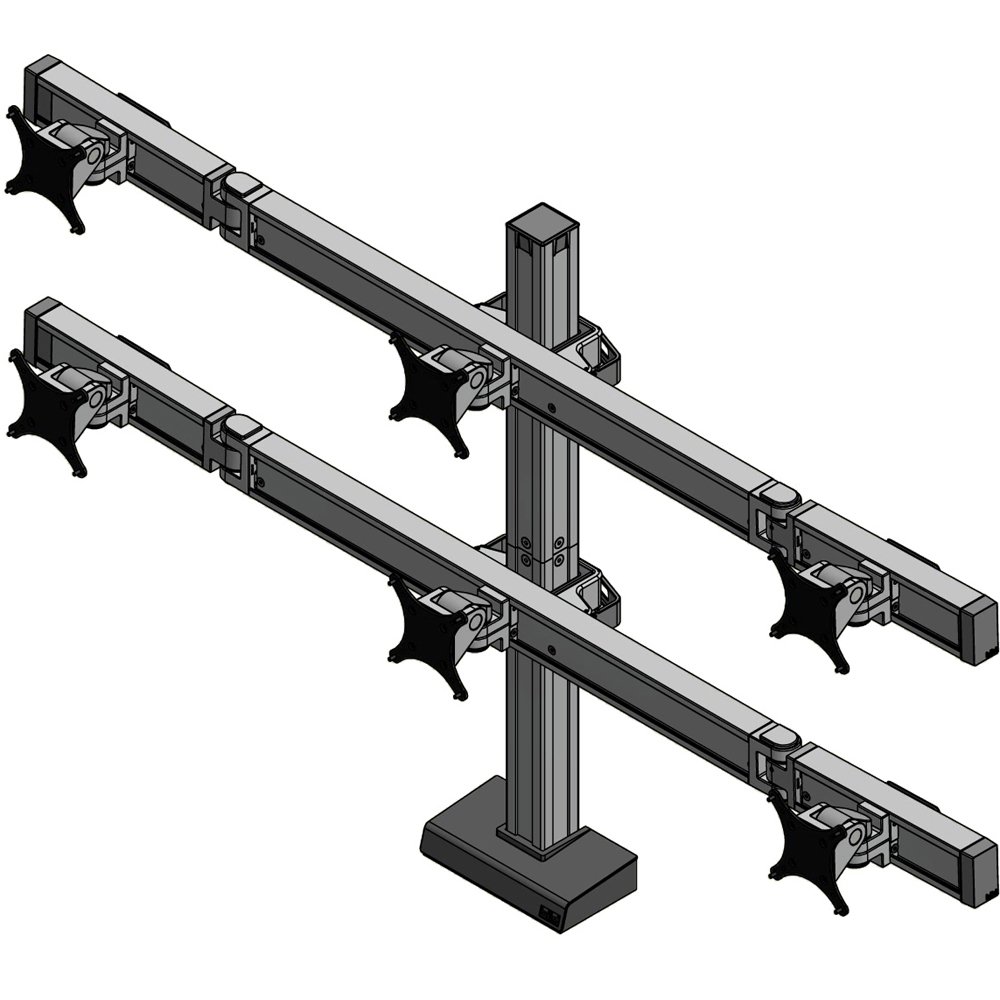

Technical Drawing

Technical Drawing for Innovative BILD-3/3 Bild 3 Over 3 Monitor Mount



Specifications

Color 104 - Vista Black and 124 - Silver
Screen Size Up to 24"
Monitor Pivot Landscape / Portrait
Monitor Tilt 200 degrees
Mount Configurations Desk Edge, Thru Mount (specify when ordering)
VESA Compatibility 75mm, 100mm adapter included
Warranty 10 years
Monitor Weight Up to 30 lbs (13.6 kg) per monitor

Features

  • Like all the Bild multi-monitor mounts, the Bild 3 over 3 six monitor mount offers a robust, solid construction with a clean design aesthetic.

  • With the Bild 3 over 3 monitor stand, you can position monitors flat or in an arch with easy to adjust hinges.

  • This multi-monitor mounting system takes the work out of adjusting and replacing monitors. Simply attach, adjust, and remove all at the face of the beam. No need to slide monitors to remove.

  • The Bild 3 over 3 is a highly adjustable monitor mount. Just loosen and tighten pivot points to the desired rigidity using the tools included. Stored in the beam end cap, they are never out of reach.

  • For a more streamlined work area, the Bild 3 over 3 multi-monitor mount comes with cable clips in the column and beam that keep cables organized and out of the way.

  • For ease of installation, the Bild 3 over 3 multi-monitor stand comes with several mounting options: desk clamp, thru-desk.

  • All Bild multi-monitor mounts are comprised of 99% recyclable content.

  • The Bild 3 over 3 six monitor stand is assembled in the USA.

  • VESA-monitor compatible - 100mm VESA adapter included.

Features of Innovative BILD

Model BILD-3/3
Manufacturer Innovative LCD Arms
Part Number BILD-3/3
Color 104 - Vista Black and 124 - Silver
Tilt Up to 200 degree
Monitor Weight Up to 30 lbs (13.6 kg) per monitor
Mounting Options Desk
Number of Monitors 6 Monitors
Monitor Size Up to 24
Pivot Landscape to portrait
Mounting Pattern VESA 75mm, 100mm
Warranty 10 Years
