$2,307.00

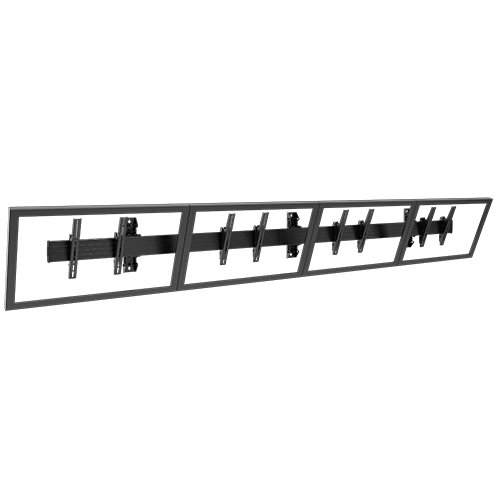

Chief LWM4X1U Fusion Large 4x1 Wall Menu Board

Product ID 18643
Chief LWM4X1U Fusion Large 4x1 Wall Menu Board
Chief LWM4X1U Fusion Large 4x1 Wall Menu Board

Description

Chief LWM4X1U Fusion Menu Board Wall Mounts offer perfect display positioning and flexible adjustments. The single horizontal extrusion with depth adjustment aligns the screens quickly even on irregular mounting surfaces and allows easy access behind the displays for servicing.

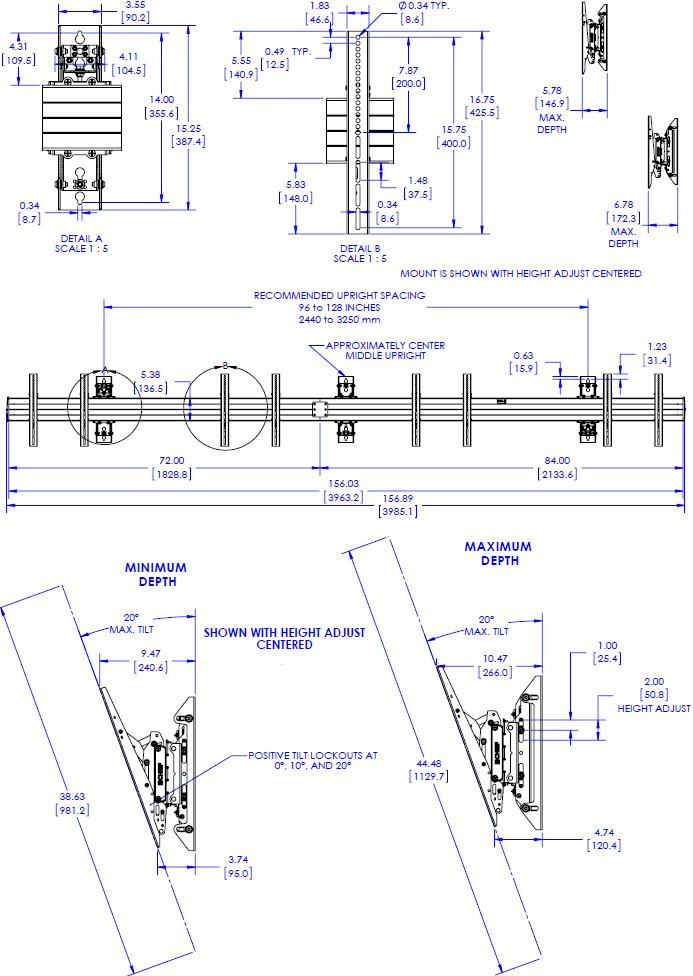

Technical Drawing

Technical drawing for Chief LWM4X1U Fusion Large 4x1 Wall Menu Board



Specifications

Adjustments

Depth Adjust 0" - 1"

Certifications

UL Listed

Color

Black

Manual Height Adjustment

2" (or +/- 1")

Minimum Depth

5.8"

Mounting Pattern Compatibility (Universal Versions)

Any width x 100 - 400 mm

Number of Monitors

4

Orientation

Landscape

Overall Dimensions (H x W x D)

16.75 x 156.8 x 5.8" (425 x 3983 x 147 mm)

Post-Installation Leveling Roll

Dependant upon wall spacing

Screen Array Configuration

4 x 1

Solution Type

Universal

Tilt

+0°, -20°

Typical Screen Sizes

40-55"

Weight Capacity

125 lbs (56.7 kg) per display



Features

  • Single horizontal extrusion keeps screens aligned

  • ControlZone micro-height adjustment

  • Centris tilt between +0 and -20 degrees

  • Tool-free screen engagement

  • Portrait and landscape options for 2x1 and 3x1 configurations

  • Landscape for 4x1 and 5x1 configurations

  • Accommodate 40-55" screens

  • Optional padlock security

  • Full line of accessories that work across Fusion wall, ceiling and freestanding lines





Model LWM4X1U
Manufacturer Chief Mounts
Part Number LWM4X1U
UPC 841872166346
Color Black
Adjustments Depth Adjust 0" - 1"
Manual Height Adjustment 2" (or +/- 1")
Minimum Depth 5.8"
Mounting Pattern Any width x 100 - 400 mm
Overall Dimensions 16.75 x 156.8 x 5.8" (425 x 3983 x 147 mm)
Tilt +0 degree, -20 degree
Monitor Size 40-55"
Weight Capacity 125 lbs (56.7 kg) per display
Mounting Options Wall
Number of Monitors 4 Monitors
