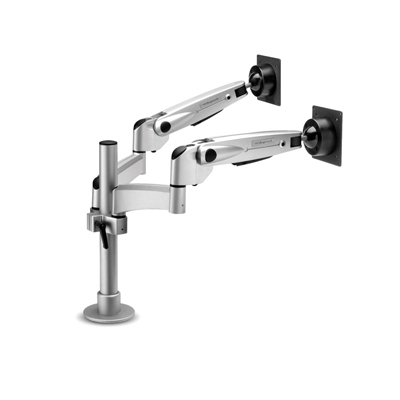

Workrite SA2000 Dual SwingArm Flat Panel Monitor Arm SA 2000
|
|
|
|
Workrite SA-2000 Dual SwingArm:
All the flexibility of SwingArm, for dual monitor applications.
The right monitor supports can help you swing into action. Optimizing the viewing angle, focal length and monitor height with a few simple twists and turns, WorkRite's
SwingArm articulates to virtually any position.
|
|
|
|
|
|

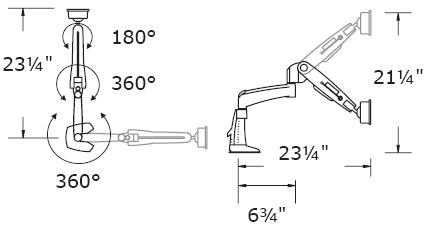

Dimensional Diagram for SA2000 Dual SwingArm
|
|
Horizontal and Vertical Reach
|
Monitor Tilt and Rotation
|
|
|
|
|
SwimgArm - Dual
|
|
|
|
|
|
|
Get a clear line of sight from any angle
|
|
The right monitor supports can help you swing into action. Optimizing the viewing angle, focal length and monitor height with a few simple twists and turns, WorkRite's SwingArm articulates to virtually any position.
|
|
more of your workspace
|
Ball joint provides multiple axis adjustment
|
Integral pneumatic cylinder backed by 10 year warrant
|
SwingArm-Dual clamp handle
provides 7" vertical range
|
|
|
|
|
|
|
Features of Workrite SA2000 Dual SwingArm:
|
-
Double Your Productivity in Comfort - The unmatched flexibility of SwingArm is now available in a dual monitor configuration.
-
Excellent Range of Motion - Vertical height range of 28.25". Reach of 23.25" Five axes of rotation provide tilt range of 145 degree (+/- 72.5 degree). Dual extension arms each rotate 360 degree for maximum reach. Quickly adjusts from Portrait to Landscape orientation.
-
Accommodating - Provides easy adjustment regardless of monitor weight and position. Collapsed depth of 4" increases usable worksurface to reduce overall space requirement. For customized control, including touch screen use, tension is adjustable at all pivot points. VESA compliant - supports both 75 and 100 mm mounting brackets. Supports monitors up to 25 lbs.
-
Goes Anywhere - Position anywhere with your choice of desk mounted with C-clamp or grommet mount.
-
Quality You Can Trust - High quality pneumatic strut cylinder backed by a 10 year warranty. For security, monitors are attached with 4 screws.
|
|
|
|
|
|
Specifications of SA2000:
|
|
Reach
|
23.25" (two arms)
|
|
Tilt Range
|
145 degree tilt range (+/- 72.5 degree)
|
|
Height Range
|
21.25" + 7.125" on pole
|
|
Pivot at Base
|
360 degree
|
|
Pivot at Monitor Mount
|
180 degree
|
|
Stored Depth
|
4"
|
|
75mm/100mm VESA Mount
|
X
|
|
Accessories
|
C-Clamp, Grommet Base Kit
|
|
|
|
|
|
|
Comparison Chart:
|
|
With a 360degree rotation, monitor can be changed quickly from landscape to portrait orientation. For customized control, including touch screen use, tension is adjustable at all pivot points. All SwingArm products support monitors up to 25 lbs. For security, monitors attach with 4 screws.
|
|
Specifications
|
SwingArm
|
SwingArm-Extended
|
SwingArm-Dual
|
|
Reach
|
23.25"
|
30.25"
|
23.25" (two arms)
|
|
Tilt Range
|
145 degree tilt range (+/- 72.5 degree)
|
145 degree tilt range (+/- 72.5 degree)
|
145 degree tilt range (+/- 72.5 degree)
|
|
Height Range
|
21.25"
|
21.25"
|
21.25" + 7.125" on pole
|
|
Pivot at Base
|
360 degree
|
360 degree
|
360 degree
|
|
Pivot at Monitor Mount
|
180 degree
|
180 degree
|
180 degree
|
|
Stored Depth
|
4"
|
4"
|
4"
|
|
75mm/100mm VESA Mount
|
X
|
X
|
X
|
|
Accessories
|
Wall Mount Bracket,
Slatwall Adapter
|
none
|
C-Clamp,
Grommet Base Kit
|
|
|
|
|
|
|
|
Similar Products:
|
|
Workrite SA1000 SwingArm
|
SA1500-DB Swing Arm Extended
|
|
|
