The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

Ergotron 25-027-100 Vertical Lift Keyboard Tray discontinued replaced 60-594-216

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 14364
Our Price: $700.27
Shipping: $20.25 * - UPS Ground
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Ergotron 25-027-100 is going End of Life of January, 2009. Replaced by Ergotron 60-594-216 Style View Vertical Lift





Accessories for Ergotron 25-027-100 Vertical Lift, Standard Keyboard Trayy



Ergotron 60-589-060 Quick Release LCD Bracket

Quick Release 60-589-060

Ergotron 80-102-064 Universal CPU Holder

Universal CPU Holder 80-102-064


Small CPU Holder 80-063-200


Medium CPU Holder 80-058-200

Ergotron 80-058-180 Medium CPU Holder (Grey)

CPU Holder (grey) 80-058-180

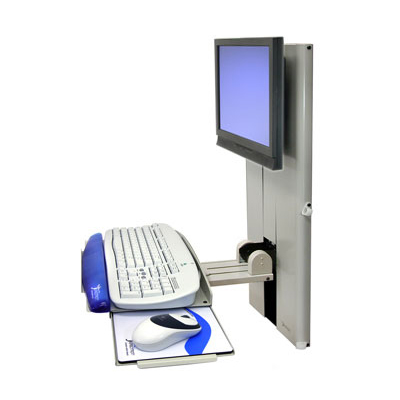

Ergotron 25-027-100 Vertical Lift, Slide-out Keyboard Tray Gray Animated Image







Ergotron 25-027-100- Vertical Lift, Standard Keyboard Tray (gray)



General Information









Buy from an Authorized Dealer

Please check Ergotron's "Where to Buy" section and look for a list of Authorized Dealers

sorted alphabetically

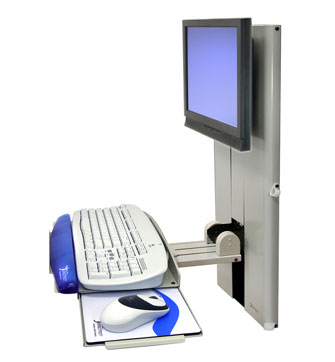

Ergotron 25-027-100 Vertical Lift, Slide-out Keyboard Tray Gray

Ergotron 25-027-100 Vertical Lift, Slide-out Keyboard Tray Gray



Ergotron 25-027-100 Vertical Lift, Slide-out Keyboard Tray Gray

Deliver technology to the point-of-need while improving workflow and increasing accuracy. Place your computer system wherever patient data is accessed. The Vertical Lift minimizes space requirements and maximizes personnel efficiency.

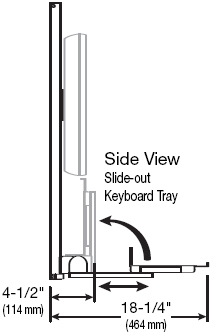

Dimensional Diagram for Slide-out Vertical Lift Keyboard Tray

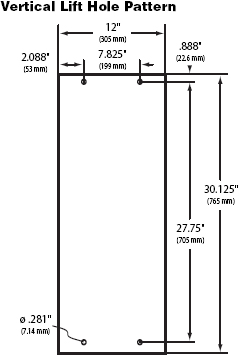

Dimensional Diagram for Slide-out Vertical Lift Hole Pattern

Dimensional Diagram for Slide-out Vertical Lift Keyboard Tray







Technical Specifications:










     LCD Size

 Wt. Capacity

     Lift

Tilt

Pan

Rotation

VESA

up to 22.9"

up to 58.3 cm

5-30 lbs

2.3-13.6 kg

9"

22.9 cm

10°

-

-

MIS-D







Product Information:



Part Number:

25-027-100

Description:

Vertical Lift with Slide-out Keyboard Tray (grey)

Includes:

Gel wrist rest, mouse pad and mouse holder

Weight Capacity:

5–30 lbs* (2.3–13.6 kg*)

*Listed weight capacity represents total load on Vertical Lift, including both the monitor and contents of keyboard tray

Mounting Standards:

VESA FDMI, MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

OSHPD Pre-approval Number OPA-0620

Shipping Weight:

40 lbs (18.2 kg)

Warranty:

Five (5) years







Benefits:



Slide-out Keyboard Tray can extend out an extra 5" (125 mm) for comfortable data entry.

With the keyboard folded up, total system depth is as little as 4.5" (114 mm).

Patented counterbalance system provides smooth adjustment while maintaining touch-screen stability.

9" (229 mm) vertical adjustment enhances ergonomics for multiple users.

Steel construction for long-lasting durability.

Easy to clean exterior.

OSHPD pre-approved for California hospital requirements







Images:

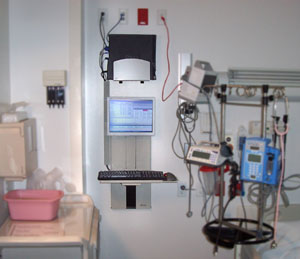

Ergotron 25-027-100 Vertical Lift, Slide-out Keyboard Tray Gray Inuse Picture








Literature (Please open the following documents for more technical information)

Description

File Type

Dimensional Illustration of HD Combo Arm 25-027-100

reader-14.jpg - pdf

Installation Instruction of the HD Combo Arm 25-027-100

reader-14.jpg - pdf

Product Sheet of the HD Combo Arm 25-027-100

reader-14.jpg - pdf
