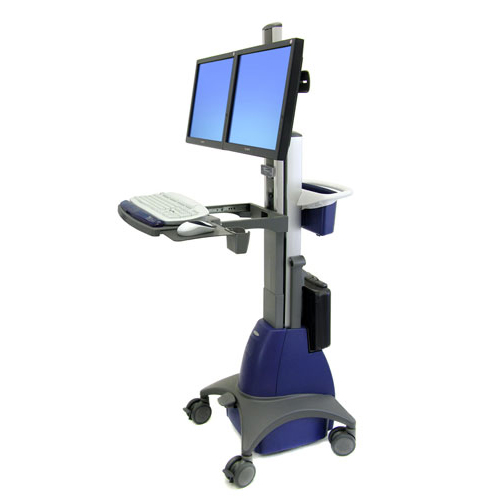

Ergotron SV22-22009 StyleView Dual Display Cart, Powered
|
Ergotron SV22-22009 StyleView Dual Display Cart, Powered
Enhance your imaging implementation by providing comfortable access to patient data and images. The StyleView’s power syatem lets you go truly mobile, getting to the point-of-care unhindered by cords and cables.
StyleView’s open architecture provides the flexibility needed for future hardware upgrades. The result: improved staff comfort, efficiency, accuracy and lower total cost of ownership.
|
|

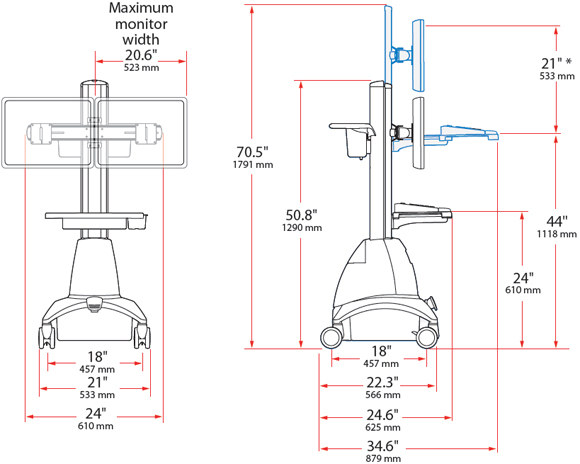

Dimensional Diagram for Ergotron Style View Dual Display Cart
|
 |
|
Technical Specifications:
|
|
|
 |
 |
 |
 |
 |
 |
|
LCD Size
|
Wt. Capacity |
Lift |
Tilt |
Pan |
Rotation |
VESA |
|
up to 22.9"
up to 58.3 cm
|
up to 17 lbs each
up to 7.7 kg each
|
20"
50.8 cm
|
30° |
- |
- |
MIS-D |
|
|
Comparison Chart for Ergotron Carts:
|
|
|
|
|
|
|
|
|
|
|
Product No
|
LCD Size
|
Wt. Capacity
|
Lift
|
Tilt
|
Pan
|
Rotation
|
VESA
|
|
SV21-91075
|
up to 20"
up to 51 cm
|
5 - 18 lbs
2.3 - 8.2 kg
|
25"
63 cm
|
25°
|
-
|
90° P/L
|
MIS-D
|
|
SV21-30075
|
up to 22.9"
up to 58.3 cm
|
up to 25 lbs
up to 11.3 kg
|
20"
50.8 cm
|
± 12°
|
-
|
-
|
MIS-F
|
|
SV21-30007
|
up to 15.4"
up to 39.1 cm
|
5–30 lbs
2.3–13.6 kg
|
20"
50.8 cm
|
± 15°
|
-
|
-
|
-
|
|
SV22-22001
|
up to 22.9"
up to 58.3 cm
|
up to 25 lbs
up to 11.3 kg
|
20"
50.8 cm
|
± 12°
|
-
|
-
|
MIS-D
|
|
SV22-22002
|
up to 15.4"
up to 39.1 cm
|
5–30 lbs
2.3–13.6 kg
|
20"
50.8 cm
|
± 15°
|
-
|
-
|
-
|
|
24-182-055
|
up to 20"
up to 51 cm
|
28 lbs
12.7 kg
|
25"
63 cm
|
25°
|
-
|
90° P/L
|
MIS-D
|
|
SV22-92026
|
up to 17"
up to 43 cm
|
5–12 lbs
2.3–5.4 kg
|
20"
50.8 cm
|
-
|
-
|
-
|
-
|
|
SV22-92023
|
up to 20"
up to 51 cm
|
5–18 lbs
2.3–8.2 kg
|
25"
63 cm
|
25°
|
-
|
90° P/L
|
MIS-D
|
|
SV21-91008
|
up to 17"
up to 43 cm
|
5–12 lbs
2.3–5.4 kg
|
20"
50.8 cm
|
-
|
-
|
-
|
-
|
|
SV21-91007
|
up to 17"
up to 43 cm
|
5–12 lbs
2.3–5.4 kg
|
20"
50.8 cm
|
-
|
-
|
-
|
-
|
|
SV21-31645
|
up to 22"
|
up to 17 lbs
up to 7.7 kg
|
20"
50.8 cm
|
30°
|
-
|
-
|
MIS-D
|
|
SV22-22009
|
up to 22.9"
up to 58.3 cm
|
up to 17 lbs
up to 7.7 kg
|
20"
50.8 cm
|
30°
|
-
|
-
|
MIS-D
|
|
|
|
Product Information:
|
|
Part Number: |
SV22-22009 |
|
Description: |
StyleView Dual Display Cart with 55 Ah Power System |
|
Includes: |
Retractable cord reel, 3 hospital-grade AC outlets, remote user interface (RUI), StyleLink software, CPU holder, scanner holder, full-size keyboard tray, left/right mouse tray, wrist rest, mouse pouch, cable management, riser lock, four dual casters, rear handle, storage basket . |
|
Dimensions, CPU Holder: |
Adjusts from 9" H x 2" D to 18" H x 10" D (229 x 51 mm to 457 x 254 mm) |
|
Caster Footprint: |
18" x 18" (457 x 457 mm) |
|
Weight Capacity, LCD: |
17 lbs (7.7 kg) per pivot. Weight capacity may be diminished if monitor depth is greater than 2 inches. |
|
Weight Capacity, Keyboard Tray: |
3 lbs (1.4 kg) |
|
Mounting Standards,LCD: |
VESA FDMI MIS-D, 100/75, C(hole pattern: 100 x 100 mm (3.937" x 3.937") and 75 x 75 mm (2.952" x 2.952")) |
|
Certification: |
The cart is certified to UL standard 60601-1. This listing also includes certification to CAN/CSA STD C22.2 No.601-1M90. |
|
Shipping Dimensions: |
24" x 32" x 56" (610 x 813 x 1422 mm) |
|
Shipping Weight: |
183 lbs (83.1 kg) |
|
Warranty: |
Five (5) years on lift mechanism and structural components. |
|
|
Power System Specifications:
|
|
Battery: |
55 Ah (Amp Hours) |
|
AC Power Input/Output: |
110-120 VAC/60 Hz, North American |
|
DC to AC Conversion: |
True Sine Wave Inverter |
|
Charging: |
Power cord is 7 feet, retractable, hospital-grade; Automatic Transfer Switch (ATS) connects equipment to “house” power for faster recharge and continued use of equipment |
|
Certification: |
Fully certified to UL standard 60601. This listing also includes certification to CAN/CSA STD C22.2 No.601-1M90 |
|
Outlets: |
3 hospital-grade AC receptacles |
|
Warranty: |
Two (2) year on power system, 90 days on battery performance, six (6) months on battery against manufacturer’s defects. |
|
Note: |
Warranty on fully charged batteries left in an unused state for more than three (3) consecutive months is automatically void; warranty on fully discharged batteries left in an unused state for more than three (3) consecutive days is automatically void |
|
|
Benefits:
|
|
Enhances space in imaging environments. |
|
Power system comes standard with a two-year warranty—the best in the industry. |
|
Cart is certified to UL 60601-1. |
|
Remote User Interface (RUI) located at eye-level alerts user when battery-charge is low. |
|
StyleLink software provides history and trend information for power system |
|
Automatic Transfer Switch (ATS) allows on-the-go recharging, resulting in uninterrupted use—no need to shut down the computer. |
|
Three hospital-grade AC outlets allow hardware selection flexibility. |
|
20-inch height adjustment for comfortable data entry sitting or standing. |
|
CF™ motion technology provides fluid, one-touch height adjustment. |
|
High-performance casters for easy movement on all types of floor surfaces. |
|
Accessories available to enhance workflow productivity. |
|
