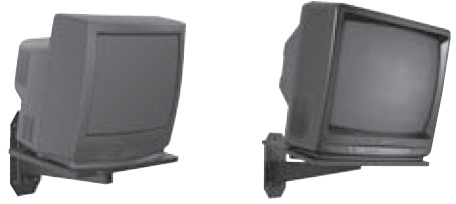

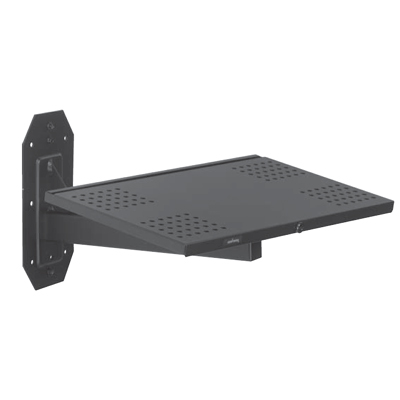

Peerless LWB530T SlimlineTM Series Rectangular Wall Arm LWB-530

Model Numbers

SWM310 for 9" - 13" TV screen

SWM314 for 13" - 16" TV screen

SWM334 for 15" - 17" TV screen

LWB530, LWB530T, WB20T for 19" - 20" TV screen (Rectangular Wall Arm)

LWB375, LWB375T, LWB375CB, LWB375TCB, WB27T for 25" - 27" TV screen (Tapered Wall Arm)

Product Specifications

Features

• Two-piece security tray with key lock (Except for WB models)

• Optional fixed 10° tilt tray

• Attractive low profile design for limited space installations

• Models LWB375CB and LWB375TCB available for cinder block installations

• 360° swivel

• Includes fasteners for wood stud mounting

• Multiple perforated hole pattern for attachment of TV

Tray Depth

WB20T, WB27T  10" (25.4 cm)

SWM310            11.5" (29.2 cm)

SWM334            12" (30.5 cm)

SWM314            12.5" (31.8 cm)

LWB530, LWB 530T   13" (33 cm)

LWB375, LWB 375T, LWB375CB, LWB375TCB   15" (38.1 cm)

Tray Width

SWM310                 10.5" (26.7 cm)

SWM314                 13" (33 cm)

SWM334                 17" (43.2 cm)

WB20T, WB27T       20" (50.8 cm)

LWB530, LWB530T  22" (55.9 cm)

LWB375, LWB375T, LWB375CB, LWB375TCB   24.25" (61.5 cm)

Overall Reach

SWM310                 14.5" (36.8 cm)

SWM314, SWM334 18.25" (46.5 cm)

WB20T 1                 9.75" (50.2 cm)

LWB530, LWB530T 20.5" (52.1 cm)

WB27T                   23" (58.4 cm)

LWB375, LWB375T, LWB375CB, LWB375TCB 25" (63.5 cm)

Finish

Scratch Resistant Fused Epoxy

Available Colors

Black

Accessories

Metal and Concrete Fasteners, VCR/DVD/DVR Mounts, Safety Belt and Wall Plates

Package Specifications

Package Contents

Mounting Hardware, Tray and Arm

Package Size

SWM310/314/334: 18.625"(L) x 12.75"(W) x 6.125"(H) (47.31 x 32.39 x 15.56 cm)

LWB375/375T/375CB/375TCB/530/530T: 24.875"(L) x 15.75"(W) x 6.125"(H) (63.18 x 40.01 x 15.56 cm)

WB27T: 36.6"(L) x 15"(W) x 1"(H) (92.96 x 38.1 x 2.54 cm)

Package Ship Weight

SWM310: 9 lbs (4.1 kg) LWB530T:  21 lbs (9.5 kg)

SWM314: 11 lbs (5 kg) LWB530:    22 lbs (10 kg)

SWM334: 13 lbs (5.9 kg) LWB375/375CB: 27 lbs (12.3 kg)

WB20T: 16 lbs (7.3 kg) LWB375T:        28 lbs (12.7 kg)

WB27T: 20.9 lbs (9.5 kg) LWB375TCB: 29 lbs (13.2 kg)

Package UPC Code

SWM310: 735029195870    LWB530T: 735029190240

SWM314: 735029195887    LWB375: 735029193234

SWM334: 735029195894    LWB375T: 735029193241

WB20T: 735029198086      LWB75CB: 735029206026

WB27T: 735029198093      LWB375TCB: 735029206033

LWB530: 735029190233

Warranty

Limited 5-year
