WorkRite Sierra Electric Rectangular Curved Front Height Adjustable Workcenter

Adjusts 22" - 48", lifting capacity 250 lbs at 2" per second. It is custom made and ships in 10 business days.
0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 15017
Recommended Accessories
Our Price: $1,330.20
Shipping: $0.00 * - See delivery options below
Usually ships in 3 to 5 business days
* applies to Contiguous United States





Accessories for Sierra Electric Rectangular Curved Height Adjustable Desk

WorkRite Mobile Pedestal 800

Workrite 800 Mobile Pedestal

WorkRite Wardrobe/Storage Tower 820

Workrite 820 Storage Tower

WorkRite 941 Sierra Modesty Screen

Workrite 941 Modesty Screen

WorkRite 971 Sierra Privacy Panel

WorkRite 971 Privacy Panel

WorkRite 970 Sierra Tool Bar

WorkRite 970 Tool Bar

WorkRite 95234 Sierra 4 Locking Casters for 2 Leg Workcenter

Workrite 95234 Locking Casters













WorkRite Pen Holder 95204

WorkRite 95204 Pen Holder

WorkRite CD Holder 95205

WorkRite 95205 CD Holder

WorkRite Legal Size Paper Tray 95207

95207 Legal Size Paper Tray

WorkRite Accessory Tray 95208

Workrite 95208 Accessory Tray

WorkRite 95301 Sierra Power / Data Supply

95301 Power/Data Supply

WorkRite 4400038 Kits to join Worksurfaces

WorkRite 4400038 kits













WorkRite Phone Base 95209

Workrte 95209 Phone Base

WorkRite Folder Tray 95210

Workrite 95210 Folder Tray

WorkRite 95222 Wire Way

Workrite 95222 Wire Way

WorkRite 95212 Cup Holder

Workrite 95212 Cup Holder

WorkRite 95213 Shelf

Workrite 95213 Shelf







WorkRite Sierra Electric SE602430V Rectangular Curved Front Height Adjustable Workcenter





General Information










WorkRite Sierra Electric SE602430V Rectangular Curved Front  Height Adjustable Table and Workstation











WorkRite Sierra Rectangular Curved Front Workcenter





















The upper image is not correct for model Rectangular Curved Front. The correct shape of Rectangular Curved Front looks like image below:

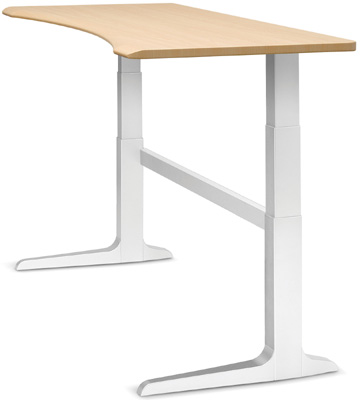

WorkRite Sierra Rectangular Height Adjustable Table and Workstation













Workrite Sierra Workcenter Description





Features:

  • Adjusts from 22" - 48" at 2" per second

  • Specify position of up/down control switch with 3 memory presets - under front edge of worksurface (U) or on deepest front corner of table top (A)

  • Two leg table with 250 lbs. load capacity





The single solution for a varied workforce:
The increased diversity of today's workforce heightens the need to provide workcenters that meet the requirements for the entire range of body shapes and sizes. Only Sierra provides 5th - 95th percentile height adjustability for the complete worksurface. Sierra is the only workcenter whose entire working surface - not just a keyboard platform can be raised or lowered to meet the ANSI/BIFMA height range requirements.


Strength in numbers:
A smooth and powerful, yet quiet, computer controlled motor moves the workcenter at 2 inches per second, quickly making the transition from seated to standing position heights.

A sleek profile that works everywhere:
With its transitional styling, wide range of available shapes and silver or charcoal metal finish, the Sierra will adapt to virtually any office environment.











Advanced Controls:
Sierra features an exclusive backlit LCD control panel with tactile soft-touch control buttons and 3 programmable memory height presets.
Panel mounts on or under worksurface.


Exclusive backlit LCD control panel





Tool Bar and Privacy Panel:

Make your workcenter work for you with our complete line of accessories, mounted to our stylish tool bar or privacy panel.





Tool Bar and Privacy Panel







Extended Range:
Sierra's electric worksurface adjusts from 22.0" - 48.0", smoothly and quietly at a rate of 2" per second, with a lifting capacity of 250 lbs.







Extended Range















Option 1: Choose your Surface Dimensions:

Model SE602430V : 60" x 24" x 30" Surface Dimensions

Model SE722430V : 72" x 24" x 30" Surface Dimensions

Model SE603024V : 60" x 30" x 24" Surface Dimensions

Model SE723024V : 72" x 30" x 24" Surface Dimensions







Option 2: Switch Position:


On Worksurface (A)


Under Worksurface (U)







Option 3: Choose your Base Frame Color:

Frame Base Color Charcoal





Charcoal (C)









Option 4: Choose your Laminate Top Color:







Classic Collection Laminates






White Spectrum

AW785






Amber Raffia

AO351






Black

SE101






Black Ashwood

SZ101






Caramel Crepe

AT111






Coriander Fiber

AT981






Folkstone Gray

SG241






Gateway to the Future AV100






Hardrock Maple

WM791






IL Palio Papel

AV981






Jewel Mahagony WY351






Manila Linen

AT231






Opti Gray

SG213






Pearwood

WX031






Sharker Cherry

WC521






Taupe

ST606






Vanilla Fiber

AW871






Wheat Fiber

AT991






Opti Gray Crepe

AG341




Oiled Cherry

WC421







Designer Collection Laminates





Workrite Sierra Designer Laminate color Almond

Almond

ST655



Workrite Designer Laminate Color Spa White

Spa White

S740T




Sage

SV720




Thyme Fiber

AV721




Anigre

WX041


Beige Crepe

AT251


Beige Crepe

AT301


Blue Sandstone

AB191


Cubicle Papel

AG561


Yorkshire Cherry

WC411




Graveyard

AG611




Gray Santos

AG291




Gridlock

PFA51




Honey Maple

WM951




Millwork Cherry

WC431




Moonlighting Papel AV971




Moroccan Fresco AT121




Negotiating in Geneva PFA60




Oatmeal Fiber

AT101




Pearl of the Orient AG601




Pepper Fiber

AG581




Putty Gray

SG209




Rhinestone Cowboy AT151




Sipping Seattle Java PFA48




Star of the West

AT361




Streets of San Francisco PFA54




Witchcraft

WX421



















Thermofoil Laminates (Minimum 10 Desks)






American Natural

98150




Aururn Pear

88898




Cashmere Fiber

98930




Clove

90340




Ebony Starlight

89865




Hayward Cherry

498120




Northern Gray

448395




Studio White

Dust 88885







Option 5: Edge Treatments



Edge Treatments for Laminated Surfaces:






Edge Treatment Standard

Standard

Colors 01 - 05



Edge Treatment Wedge

Wedge

Black only - 06



Edge Treatment Ripple

Ripple

Black only - 07

















Standard Edge Colors:




Folkstone 01




Black 02




Opti-Grey 03




Almond 04




HW Brown 05



Workrite Standard Edge Color Soft White

Soft White 53



















Edge Treatments for Thermofoil Surfaces:





Workrite thermofoil edge block B1

Workrite Thermofoil Edge Cascade C1





Edge Treatment Block B1

Block B1



Edge Treatment Cascade C1

Cascade C1







Option 6: Casters



Sierra Locking Casters



Sierra Locking Casters





Features:

  • Low profile locking casters, 2" W x 1.5" H

  • Casters raise workcenters by 1" versus installed adjustable glides

  • Can be used with all Workrite adjustable workcenters, recommended for Sierra workcenters

  • Four (4) casters required for 2 leg workcenters, five (5) casters required for 3 leg workcenters





The following casters are available:



  • 95234: 4 casters for 2 leg Workcenters

  • 95235: 5 casters for 3 leg Workcenters







Option 7: Pinch Points









Actual Desktop Size:





Dimensions provided above are nominal. Actual widths of all tables are reduced by approximately 2" and depths by 1". For example, a nominal 72" x 72" x 24" large corner table has an actual dimension of 70" x 70" x 23", and a 72" x 30" rectangular table has an actual dimension of 70" x 29".





Workcenter Ordering Information









For Thermofoil laminates: Minimum quantity 25 tables per base model number (i.e. SE6030); consult factory for quote on larger projects.









Dual Surface specifications:

Front surface laminate and trim matches main worksurface.











Keyboard Cutout:

Front surface adjusted using fixed mount Pinnacle 2 Arm with 0" to -6" height range and -15 degree to +10 degree tilt range.









Switch Position:

If switch position not specified, under mount version (U) will be provided.
All tables have adjustable glides at front and back of each foot, providing 0.5" adjustment.









Table Surface Installation:

Table surfaces are pre-drilled with mounting location for bases and dual surface platform (if any). A joining kit is provided for all three leg tables with a two piece top.













Assembly:

All tables and bases ship unassembled. Weight information is shipped weight for laminate option only.



Sierra Assembly Image











Power:

Control box powered by 120V / 60Hz. May draw 6 amps maximum under full load, idle current is typically 20mA. 10ft grounded power cord with IEC type connection at control box provided.
Cable management spool provided to manage excess control cables; optional cable mount accessories are available - see Accessories.









Application Tips:
Mobile pedestals 21.5" H x 17" D and 21.5" H x 18.75" D will fit under 24"D and 30" D tables, respectively. To accommodate deeper pedestals, contact factory for custom leg placement.

Moving worksurfaces can collide with other components. Installation of overhead storage or wall mounted accessories in the path of the worksuface is not recommended. WorkRite has tool bars which move with the worksurface and can accept a variety of desk accessories.













Note for Base Units Only:

For safe operation of the moving worksurface in close proximity to walls or other worksurfaces, we recommend the following:



  • Reduce the width of the worksurface by two inches.

  • Reduce the depth of the worksurface by one inch.

  • Customer assumes full responsibility for proper clearances.

Lead Times:



  • Classic Collection Laminates: Ships in 10 working days

  • Designer Collection Laminates: Ships in 15 working days

  • Thermofoil Laminates: Ships in 6 weeks, minimum quantities apply

  • Note: All lead times quoted are for the models shown in current catalog. Please call for lead times on custom tables.





Literature (Please open the following documents for more technical information)

Description

File Type

WorkRite Sierra Rectangular Curved Height Adjustable Workstation - Brochure

reader-14.jpg - pdf

WorkRite Sierra User Guide

reader-14.jpg - pdf

WorkRite Sierra Rectangular Curved Adjustable Table - Assembly Instructions

reader-14.jpg - pdf

WorkRite Sierra Special Settings

reader-14.jpg - pdf

Sierra Rectangular Curved  Desk - Tool Bar and Privacy Panel Assembly Instruction

reader-14.jpg - pdf
