The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

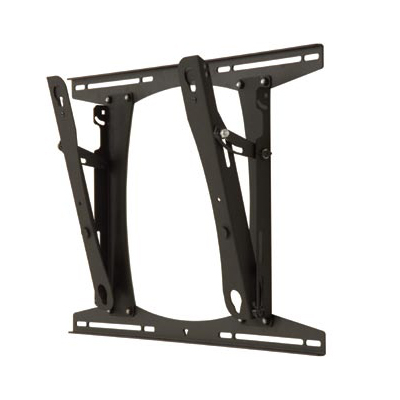

Chief PROU Lockable Tilting Wall Mount for 37 to 65 inch Flat Panel LCD LED Displays

The difference between PRO and PLP is that PRO provides rock solid, lock-down tilt adjustment, while the PLP provides fingertip tilt adjustment and expanded cable access
0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 15317
Recommended Accessories
Our Price: $183.20
Shipping: $25.01 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Accessories for Chief PROU LockableTilting Wall Mount

Chief KSA1022B or KSA1022S Wall Extrusion (Wall Track)

Chief KSA1022 Wall

Extrusion (Wall Track)



Chief PAC400 - 90° Rotation Adapter Plate Black

Chief PAC400 - 90°

Rotation Adapter Plate







General Information



Image of Warranty and Returns





Nationwide Delivery Image








Chief PROU Lockable Tilt Wall Mount for 37 to 65 inch Large Flat Panel Displays



Chief PROU Lockable Tilt Wall Mount for 37 to 65 inch Large Flat Panel Displays









Features of Chief PROU Tilting Wall Mount:

    1.  Integrated Lateral shift: Reposition mount 4” (102 mm) left or right after installation for

         ultimate positioning flexibility.



    2.  Q-Latch Mounting System: Flat panel secures to mount with a latching flag. Easy to

         connect/disconnect - no tools needed. Protect display by adding a padlock.



    3.  Open Wall Plate Design: Expanded wall plate opening provides cable access and reduces

         risk of outlet interference.



    4.  Rapid Leveling: Hands free leveling of mount on wall after installation.



    5.  Ultra low-profile design.



    6.  Rock-solid, lockable tilt from 0 - 15°.



    7.  Screen can be installed in portrait or landscape orientation ( PAC400 accessory can be used

      to rotate without removing the screen).









Technical Drawing for Chief RROU Large Flat Panel Lockable Tilting Wall Mount



Technical Drawing for Chief RROU Large Flat Panel Lockable Tilt Wall Mount









Description of Chief PROU:

The PRO is a low-profile, rock-solid tilt wall mount for large flat panel displays.







Specifications:

Depth from Wall:

1.54" - Check website for model specific dimensions. Does not include screen interface (typically 1 inch or less)

Overall Dimensions (H x W x D):

26" x 18.38" x 1.54" (660.4 x 466.85 x 39.11 mm)

On most models depth does not include screen interface (typically 1 inch or less)

Lock Diameter:

1/4"

Pitch Adjustments:

0-15 º. Loosen nuts to adjust pitch then retighten to secure

Mounts:

To 16", 20" & 24" on-center studs

Color:

Black

Compatibility:

Interface brackets are compatible with all other 2000 Series products

Weight Capacity:

200 lbs (90.71 kg)






Literature (Please open the following documents for more technical information)

Description

File Type

Chief PROU Lockable Tilt Wall Mount - Catalog Page

- pdf

Chief PROU Flat Panel Lockable Tilt Wall Mount - Installation Assembly

- pdf

Chief PROU Lockable Tilt Wall Mount - Technical Drawing

- pdf

Chief PROU Lockable Tilting Wall Mount - Installation Interface

- pdf

Chief PROU Flat Panel Lockable Tilt Wall Mount - Technical Interface

- pdf
