Peerless PF632 PRO Universal Flat Wall Mount 10-37" LCD LED Screens

This product has been discontinued.

Accessories for Peerless PF632 PRO Universal Flat Wall Mount PF-632
		ACC215 Metal Stud Fastener Kit

Peerless PF632 PRO Flat Wall Mount for 10"-37" Screen PF 632

General Information

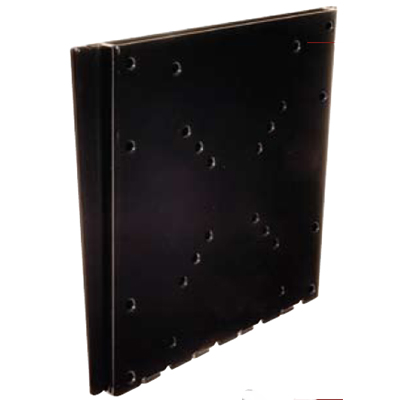

Peerless PF632 PRO Flat Wall Mount for 10 to 37 inch LCD Screen

Peerless PF632 Paramount Flat Wall Mount for 10 to 37 inch LCD Screen

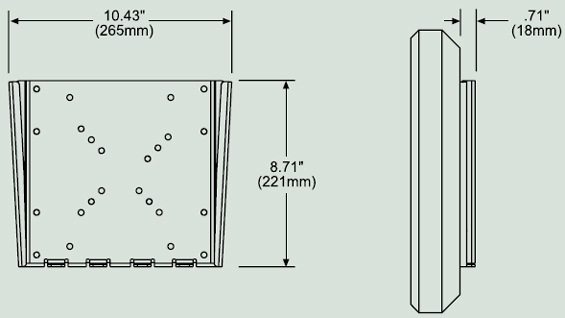

Dimensional Diagram for Peerless PF632 PRO Flat Wall Mount PF 632

Dimensional Diagram for Peerless PF632 Paramount Flat Wall Mount PF 632

PRO Flat Panel Mount:

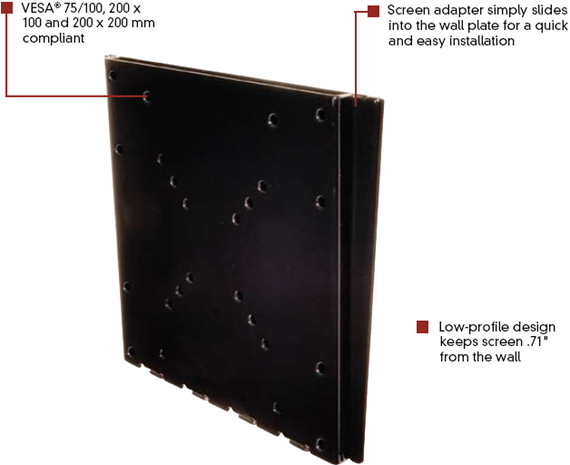

Put small screens almost anywhere with this compact, versatile mount. Simply attach the wall plate to the wall, the adapter plate to the screen and slide it on to the wall plate, done. At only 0.71" from the wall, this sleek mount is ideal for low-profile applications.

Features:

Mount fits screens with VESA 75, 100, 200x100 or 200x200 mm hole patterns
Slim design holds screen only 0.71" from the wall for a low-profile application
Screen adapter plate simply slides into the wall plate for a quick and easy installation
Comes with Peerless' fastener pack with all necessary screen attachment hardware
Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
UL Listed

Product Information:

Model Numbers	Universal Models: PF632 - Standard Fasteners (Includes standard hardware (hex or Phillips) for attaching screen to mount )
Screen Adapter	Universal Models: Includes universal screen adapter to accommodate VESA 75, 100, 200x100 or 200x200 mounting holes
Product Specifications
Dimensions (W x H x D)	10.43" x 8.71" x .71" (26.5 x 22.1 x 1.8 cm)
Load Capacity	115 lb (52.1 kg)
Product Weight	4.2 lb (1.9 kg)
Finish	Scratch-resistant fused epoxy
Available Colors	Gloss Black
Accessory	ACC215 - 2 pack Metal Stud Fastener Kit
Patent	Patent Pending
Package Specifications
Package Contents	Wall plate, Screen Adapter, Mounting and Screen attachment hardware
Units in Package	1
Package Size (W x H x D)	11.325" x 11.25" x 2.5" (28.8 x 28.6 x 6.4 cm)
Package Ship Weight	5.11 lb (2.31 kg)
Mounting Surfaces	Wood stud, concrete, cinder block or metal stud (Metal stud accessory required)
UPC Code	PF632: 735029254386
Warranty	Limited 5 years

Additional Images:

Peerless PF-632 Universal Flat Wall Mount Black for 10"-37" Screen

Paramount-Universal-Flat-Wall-Mount-PF63

Literature (Please open the following documents for more technical information)

Description	File Type
Peerless PF632 Product Profile	- pdf
Peerless PF632 Catalog Page	- pdf
Peerless PF632 Technical Data	- pdf
Peerless PF632 Installation and Assembly Sheet	- pdf
Metal Stud ACC215 Installation Sheet for Peerless PF632	- pdf
