Dimensional Diagram for Peerless PPC PRO Projector Ceiling Mount

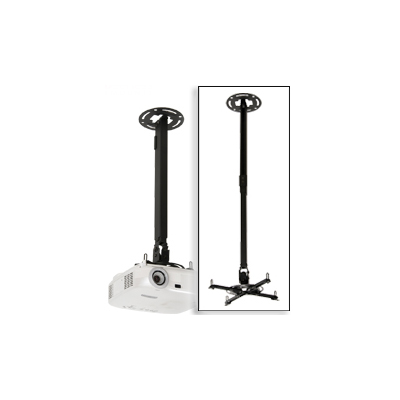

PPC PRO projector Ceiling Mount:

The PPA and PPB models are only projector mounts that offer ceiling mounting option in one out-of-the-box solution while the PPC model delivers a flexible drop length for ceiling mounted projectors. These versatile, ready to install mount models offer the convenience of installation to the ceiling and provide drop length options without the need of additional accessories. These mount models provide the first true comprehensive projector mounting solution in a single package.

Features:

• Continuous channel design for uninterrupted drop length

• Three adjustable extension lengths:

  PPA models: 12.75"-17.78" (ceiling), 9.95"-14.06" (wall),

  PPB models: 16.75"-25.68" (ceiling), 13.95"-21.94" (wall),

  PPC models: 23.2"-37.89" (ceiling only)

• Safety catch designed into extension to ensure user and equipment safety

• Mounts to ceiling with included wall mount interface

• Spider universal adapter plate extends from 7.1" to 16.55" to fit most projector models

• Provides wide range of motion for ideal image alignment:

  Tilt: +30/-5 degree, Swivel: 360 degree of mountable adjustment for limitless screen placement opportunities (+/-20 degree at mount), Roll: +/-20 degree

• Works with standard 4" loops for use with round, square, rectangular or I-Beam truss up to 3" wide x 3 1/2" wide

• Supports up to 50 lb projectors Mounts

• Internal cable management within channels for clean, clutter-free appearance

• Includes hardware for installation to a wood joist or concrete

• UL listed

Product Information:

Description

File Type

Peerless PPC Product profile

- pdf

Peerless PPC Catalog Page

- pdf

Peerless PPC Technical Data

- pdf

Peerless PPC Installation and Assembly Sheet

- pdf
