Dimensional Diagram for Peerless PRG-EXA Projector Wall or Ceiling Mount
|
|
|
|

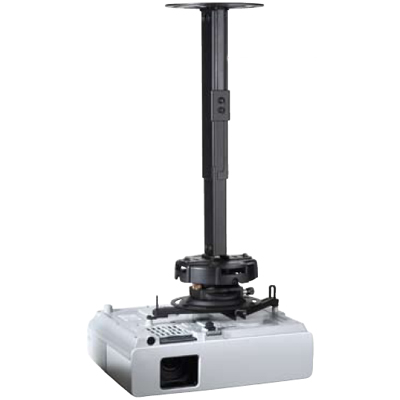

PRG Series Adjustable Projector Ceiling or Wall Mount:
|
|
Peerless has packaged flexibility and ease together in one box with these ceiling/wall mounting kits, which enable the installation of a projector from either the ceiling or the wall. This all-in-one kit includes the industry’s first precision gear projector mount that delivers precision image alignment with a simple turn of a knob. These comprehensive projector mounting kits also include an adjustable length column that provides ideal height positioning for the perfect projector installation. Concealed within the column is a cable-management channel, assuring a clean and clutter-free appearance.
PRG EXA Description:
|
|
This kit combines the precision adjustment capabilities of the PRG projector mount line with a convenient variable-adjustable square column extension kit. Each kit includes the ceiling/mount, extension column and mounting hardware for either ceiling or wall applications. You also get color-coordinated wire slot covers for neat and clean installations.
|
|
Features:
-
Continuous channel design for uninterrupted drop length or wall extension adjustments
-
Three adjustable extension lengths:
PRG-EXA models: 8.7"-12.8" (ceiling), 9.72" - 13.86" (wall),
PRG-EXB models: 12.68"-20.67" (ceiling), 13.74"-21.73" (wall),
PRG-EXC models: 19.13"-32.91" (ceiling only)
-
Safety catch designed into extension to ensure user and equipment safety
-
Internal cable management channels for clean, clutter-free appearance
-
Mounts to ceiling or wall with included wall mount interface (PRG-EXA and PRG-EXB models only. PRG-EXC is not wall mountable due to its extensive reach)
-
Includes PRG Series projector mount with Precision Gear Alignment ImageLock for precise image alignment: Tilt ±20° Swivel 360° (±15° at projector mount) Roll ±10°
-
Two adjustment knobs control tilt and roll image alignment. Engage using a Phillips screwdriver or extend knobs to align by hand
-
Includes Spider Universal Adapter Plate which extends from 7.1" to 16.55" to fit most projectors
-
Works with standard 4" loops for use with round, square, rectangular or I-Beam truss up to 3" wide x 3 1/2" wide
|
|
Product Information:
|
|
Model Numbers
|
PRG-EXA(-S)(-W) -- (Security Version)
|
|
Product Specifications
|
|
Tilt
|
±20º
|
|
Swivel
|
360º
|
|
Roll
|
±10º
|
|
Dimensions (W x H x D)
|
PRG-EXA(-S)(-W): 6.5" - 16.55" x 8.7" - 12.8" x 6.5" - 16.55"
(16.5 - 42 x 22.1 - 32.5 x 16.5 - 42 cm) ceiling;
9.72" - 13.86" (24.7-35.2 cm) distance from wall
|
|
Load Capacity
|
50 lb (22.68 kg)
|
|
Product Weight
|
PRG-EXA(-S)(-W): 6.63 lb (3.01 kg)
|
|
Finish
|
Scratch-resistant fused epoxy
|
|
Available Colors
|
PRG-EXA: Black
PRG-EXA-S: Silver
PRG-EXA-W: White
|
|
|
|
|
Package Specifications
|
|
Package Contents
|
Wall/ceiling plate, adjustable extension channels, PRG Series Projector Mount, Spider Universal Adapter Plate, mounting and screen attachment hardware, wall mount interface
|
|
Units in Package
|
1
|
|
Package Size
|
PRG-EXA-S)(-W): 9.31" x 4.25" x 12.63" (23.7 x 10.8 x 32.1 cm)
|
|
Package Ship Weight
|
PRG-EXA(-S)(-W): 7.57 lb (2.53 kg)
|
|
Package UPC Code
|
PRG-EXA 735029258476
PRG-EXA-S 735029258483
PRG-EXA-W 735029258490
|
|
Warranty
|
Limited 5-year
|
|
