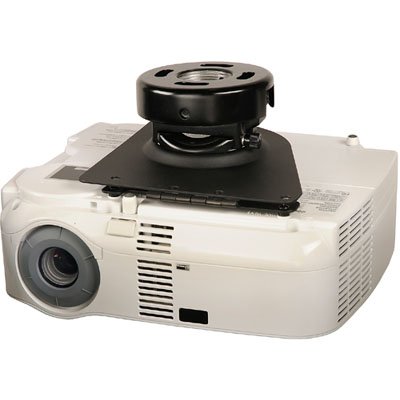

Black PRS Projector Ceiling Mount up to 25 lbs - PAP Adapter
Plate needed
PRS-1-S
Silver PRS
Series Projector Mount up to 25 lbs - PAP Adapter Plate needed
PRS-1-W
White PRS Projector
Ceiling Mount up to 25 lbs (11 kg) - PAP Adapter Plate needed

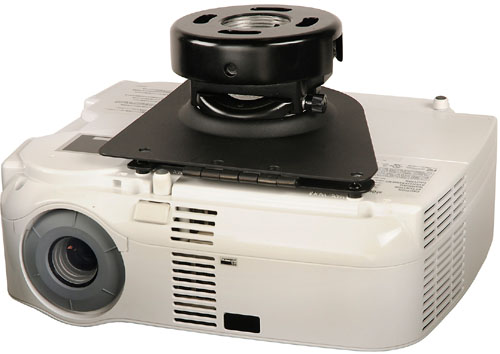

Peerless PRS-1 or PRS-1-S or PRS-1-W PRS Projector Mount
General Information
Features of Peerless PRS 1 or PRS 1 S or PRS
1 W:
+5°/-20° Pitch, +/-10° Roll, 360° Yaw (when attached to an extension
column), +/-15° Yaw (when flush mounted), which enables the image
to be perfectly aligned with the screen.
Mount completely pre-assembled to save you time.
Independent roll, pitch, and yaw adjustments provide easy image
alignment.
Can be mounted directly to a single wood beam or concrete slab
without disassembling the mount and without reinforcing the ceiling.
Can attach to 1 1/2" extension column, 3/4" extension column, or 3/8"
threaded rod.
Armor Lock security screws pre-installed for a secure installation in
minutes.
Quickly release the projector for maintenance with the simple turn of a
knob.
Built in cord management access hole provides complete access to
route cords through extension column to keep cords hidden.
4 adjustment points allow a quick, simple installation.
Final security lock down is optional to use.

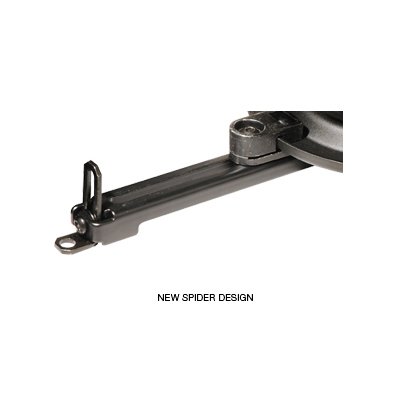

Easily and quickly attaches to either a projector-specific adapter plate
or the Spider universal adapter plate.
Offered in black, white, and silver to complement any setting.
Low profile allows the projector to be close to the ceiling.
Offers the fastest installation to reduce installation time and costs.

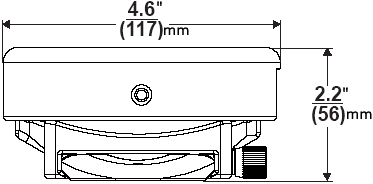

Technical Drawing
of Peerless PRS-1 PRS
Projector Ceiling Mount
Description of Peerless PRS1 or
PRS1S or PRS1W:
The PRS Series Projector Mount is the most low profile mount
available today and offers the easiest installation. It ships completely
pre-assembled and offers unmatched versatility. It can be mounted to
any common ceiling structure, and is offered in multiple colors to
complement any setting. It was specifically designed to save time and
money when mounting projectors.
Specifications of Peerless PRS-1
or PRS-1-S or PRS-1-W:
Color:
Black, Silver and White
Tilt:
+5°/-20°
Swivel:
360° (±15° when flush mounted)
Roll:
±10°
Mounting Surfaces:
Wood joist, concrete
and other structures
(Other structures require accessory)
Product Dimensions (W x H x D):
4.63" x 2.22" x 4.63"
(118 x 56 x 118 mm)
Product Weight:
1.2 lb (.5 kg)
Load Capacity:
25 lbs (11 kg)
Finish:
Scratch resistant fused epoxy
Package Size (W x H x D):
5” x 5” x 5”
(127 x 127 x 127 mm)
Package Ship Weight:
1.4 lb (.6 kg)
Package Contents:
PRS
Series Projector
Mount
Mounting
attachment
hardware
Assembly instructions
Units in Package:
1
