Ergotron 24-190-057 Neo-Flex Mobile Media Center LD Light Duty Grey 24190057
|
|
Ergotron 24-190-057 Neo Flex Mobile MediaCenter:

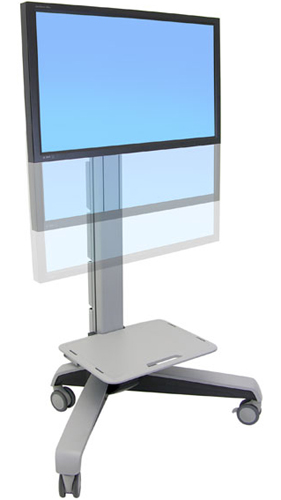

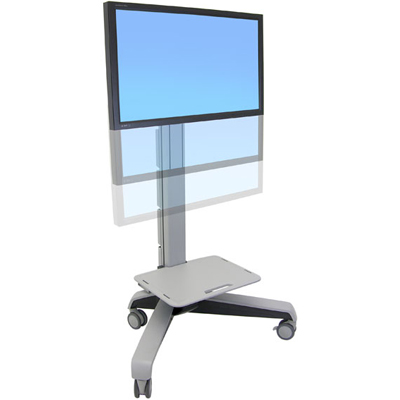

This cart stretches your investment by serving a variety of projection needs. Features include portrait-to-landscape rotation, 20" (51 cm) effortless height adjustment and 20 degree independent display tilt.
Get optimal positioning for both seated and standing audiences, in any application, in any part of your facility. Adjusts with just a touch - no knobs or levers
|
|
|
|
|
|
|
|

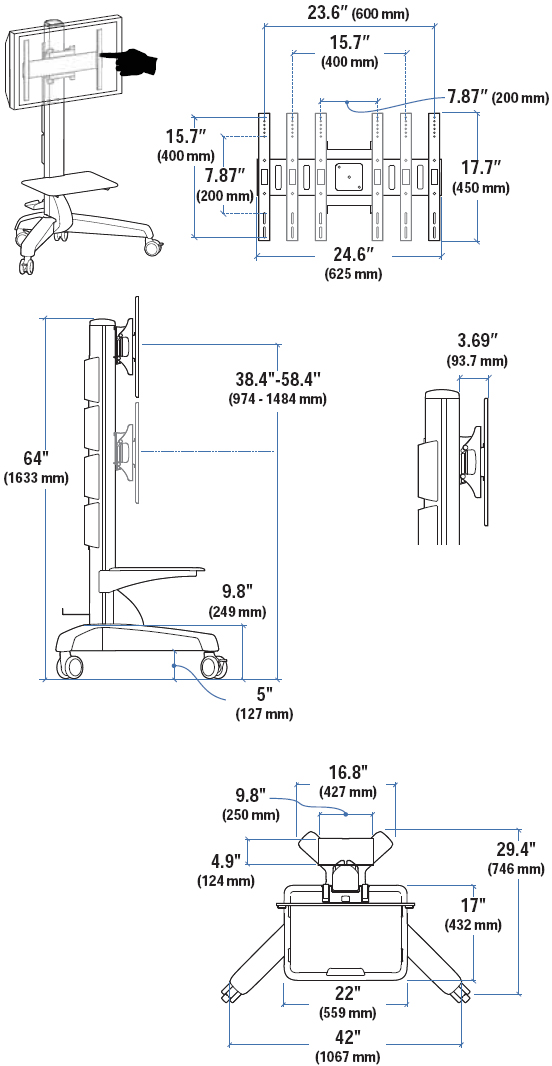

Dimensional Diagram for 24-190-057 Neo-Flex Mobile Media Center LD
|
|
|
|
|
|

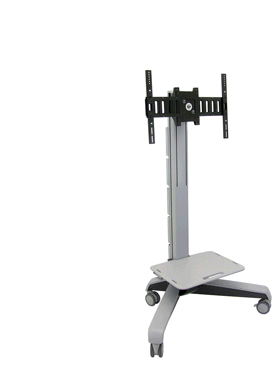

Below is the hole pattern image on the main mount of vertical column that the larger mount bracket attaches to
|
|
|
|
|
|
|
|
Technical Specifications:
|
|
|
|
|
|
|
|
|
|
LCD Size
|
Wt. Capacity
|
Lift
|
Tilt
|
Pan
|
Rotation
|
VESA
|
|
27" - 40"
|
25 - 50 lbs
11.4 - 22.7 kg
|
20"
51 cm
|
20 degree
|
-
|
90 degree P/L
|
MIS-D/E/F
|
|
|
|
|
|
|
|
|
Product Information:
|
|
Part Number:
|
24-190-057
|
|
Description:
|
Neo-Flex Mobile MediaCenter LD, Light Duty (Grey)
|
|
Includes:
|
Cart, display and pan assembly, lower main shelf, 4-inch (100 mm) casters (two locking), rear cable shelf, cable channel kit
|
|
Others Information:
|
-
Add the MMC Video-Conferencing Kit to place adjustable camera shelf above the display (ordered separately)
-
Modular cable channel system is adaptable for various wiring configurations
-
Rugged plastic-composite shelf conveniently attaches to cart at any height
-
Complies with UL Tip Standards 1667 and 1678
|
|
CPU:
|
CPUs attach safely to rear of cart with Universal CPU Holder accessory (ordered separately). Compatible with CPU sizes from 12" H x 3" D to 18" H x 8.5" D (300 x 80 mm to 460 x 220 mm)
|
|
Weight Capacity:
|
main shelf = 30 lbs (13.6 kg), cable shelf = 5 lbs (2.2 kg), if MMC Video-Conferencing Kit is added, display weight capacity is diminished by 3 lbs (1.4 kg)
|
|
Mounting Hole Patterns
(Width x Height in mm):
|
75 x 75, 100 x 100, 200 x 100, 100 x 200, 200 x 400, 200 x 200, 400 x 200, 400 x 400, 600 x 200 and 600 x 400
|
|
Note:
|
Portrait orientation is not recommended for some plasma displays. Contact display manufacturer if you have questions regarding your plasma's portrait-mode capability (this is not an issue with LCD technology
|
|
Shipping Dimensions:
|
66" L x 20" H x 14" D (1680 x 503 x 335 mm)
|
|
Shipping Weight:
|
122 lbs (55 kg)
|
|
Warranty:
|
Three (3) years
|
|
|
|
|
|
|
|
|
Benefits:
-
Move digital signage and images to where you need them.
-

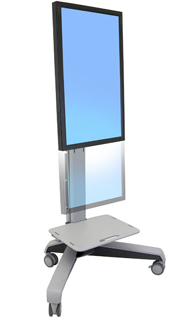

Rotate your display to portrait or landscape orientation - no need to reinstall display
-
Optional camera shelf accessory converts any space into a videoconference center
-
Easily roll cart through standard-size doorways and over thresholds
-
Narrow footprint allows presenter to move closer to the display, easily tucks into corners or nests with other carts for space-saving storage
-
Force CF technology enables smooth, effortless portrait-to-landscape rotation, tilt and height adjustment. Adjusts with just a touch - no knobs or levers
-
Modular cable management channels conceal and organize cables
-
Maximize your technology investment by sharing a large display over multiple rooms
-
Second-generation design and 47 separate quality tests ensure reliability and optimum performance
-
Speedy assembly and installation
|
|
|
|
|
|
|
|
