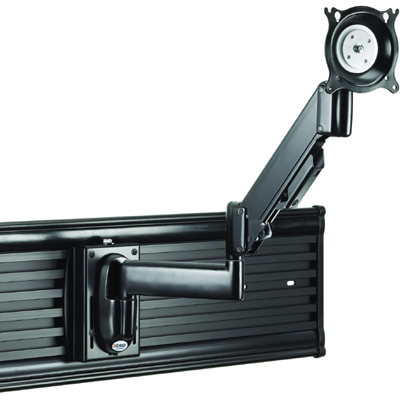

Chief KSG110B Height-Adjustable Slat Wall Mount, Single Monitor

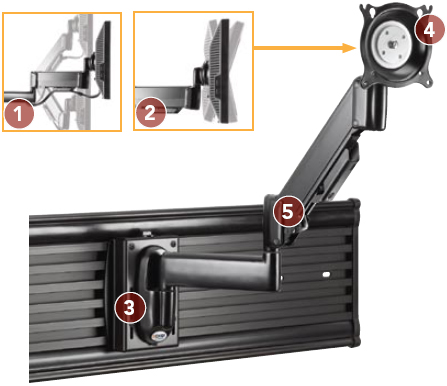

Features of Chief KSG 110:

    1.  Fingertip Height Adjustment: Adjust viewing height up to 13.25” (337 mm). Optimize height

         adjustment for any display with customizable tension

    2.  Centris Technology (PATENTED FEATURE): Provides smooth fingertip tilt in all directions

         using the screen’s center of gravity. Screen angle stays set until you decide to re-adjust.

    3.  Universal Slat Wall Mount: Ships with Chief’s OFBU, universal slat wall interface bracket to

         accommodate over 95% of installations.

    4.  Advanced Display Mounting: Teardrop hole pattern makes mounting the screen quick and

         easy.

    5.  Ultimate Flexibility: Maximum range of motion from low profile to full extension.

    6.  Sleek, attractive design hides all hardware.

    7.  Independently adjustable tension at pivot points for customized control.

    8.  Tension can be optimized for touch screen use.

    9.  Integrated cable management

   10.  VESA 75 x 75 mm and 100 x 100 mm compatible (Custom interfaces also available)

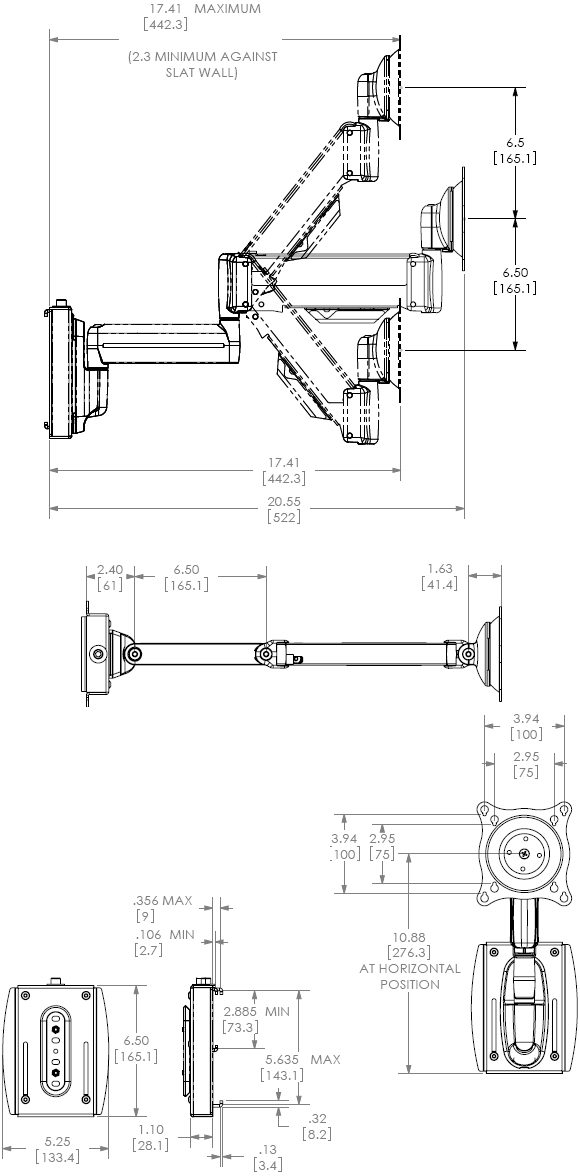

Technical Drawing for Chief KSG-110 Slat Wall Mount

Height Adjustable Single Monitor Arm

Description of Chief KSG-110B:

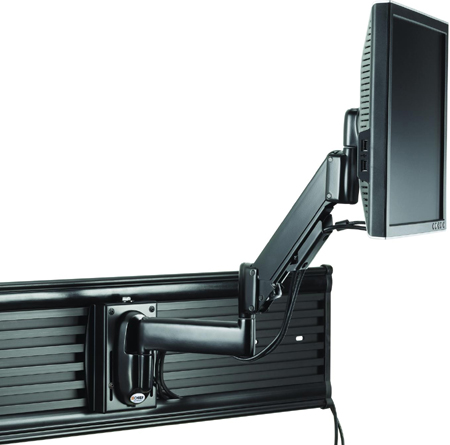

Chief’s KSG110 provides a broad range of motion for viewing small flat panel monitors and TVs that need to be installed on slat wall or tool tile.

• Ergonomic solution for the office providing excellent adjustability

Depth (closed):

2.19" (56 mm)

Maximum Extension:

20.55" (522 mm)

Height Adjustment:

13.25" (337 mm)

Tilt:

+/-15º

Pivot:

180º

Weight Capacity:

5-25 lbs (2.3-11.4 kg)

Color:

Black

VESA Compatibility:

75 x 75 mm and 100 x 100 mm (without extra interface bracket)
