How large can the monitors be?

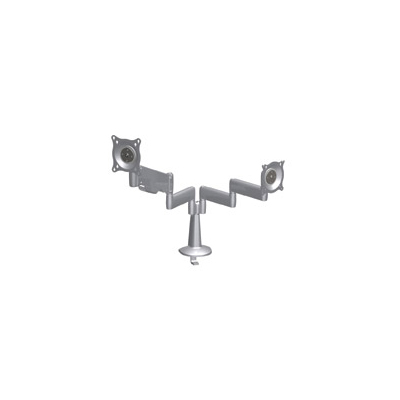

Chief KCY210 Desk Mount Height-Adjustable Dual LCD Monitor Arm

This product has been discontinued.

Looking for a replacement? Answer a few questions in our Monitor Arm Finder and a specialist will recommend the best match.

Related Products:

Part Number	Description
KCY210B	Black Height Adjustable Dual Monitor LCD Arm Desk Mount
KCY210S	Silver Dual Monitor LCD Arm Height Adjustable Desk Mount

Accessories for Chief KCY210 Dual Desk Mount

Chief KSA1003 Extension Arm

Chief KSA1009 Security

Hardware Kit

Chief KSA1001 Wall

Plate Accessory

Chief KSA1013 Laptop Notebook Tray

Anchor Pad 31177ARM

Lockdown Arm Mount

Chief KWK110 Height

Adjustable Keyboard Mount

Chief KSA1024 Quick Release Bracket

Chief KSA1002 Small Flat Panel Desk Mount Adapter

General Information

Chief KCY 210 Desk Mount Dual Monitor Height Adjustable LCD Arm

Chief KCY210S Desk Mount Dual Monitor Height Adjustable LCD Arm Silver

Features of Chief KCY 210B or KCY 210S:

1. Centris Technology provides smooth, fingertip tilt in all directions.

2. Allows independent movement and height adjustment of each monitor to maximize the

possible viewing angles.

3. Adjust the height and position of each screen independently for ergonomic alignment.

4. Clamp option allows mount to be installed from the top of the mounting surface.

5. Multiple mounting options: edge clamp, grommet clamp, grommet thru-bolt.

6. Clean look with minimal hardware visible from underside of work surface

7. Quick, easy cable management

8. Ships assembled.

9. VESA 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA

compliant displays)

10. Note: Mounting surface maximum thickness: 3.2" (81 mm), grommet hole size: 0.38"- 3"

(10-76 mm)

Technical Drawing for Chief KCY-210 Desk Mount

Dual Monitor Height Adjustable LCD Arm

Technical Drawing for Chief KCY210 Desk Mount Dual Monitor Height Adjustable Arm

Description of Chief KCY-210B or KCY-210S:

Chief's KCY210 for small flat panel monitors provides maximum ergonomic flexibility for viewing multiple monitors. (Previously sold as FCY210)


Specifications:
Depth (closed):	2.19" (56 mm)
Maximum Extension:	20" (508 mm)
Height Adjustment:	7.5" (190.5 mm)
Tilt:	+/-15º
Pivot (Desk/Display/Arm):	360º/180º/360º
Dimensions (W x H x D):	10.85" x 5.08" x 4.2" (276 x 129 x 160 mm)
Color:	Silver or Black
Weight Capacity:	40 lbs (18.2 kg), 20 lbs (9.1 kg) per mounting arm
VESA Compatibility:	75 x 75mm and 100 x 100mm (without extra interface bracket)

Literature (Please open the following documents for more technical information)

Description	File Type
Chief KCY210B or KCY210S Dual Arm Desk Mount - Technical Drawing	- pdf

Privacy Notice:
ErgoDirect.com fully respects and protects your privacy. With the exception of arranging for delivery of the products ordered, we do not sell, share or rent any personal information (including your name, address, telephone number or e-mail address) to other parties for any reason; nor do we contact you by telephone or e-mail to solicit additional products or services.

Credit Card Security:
We use SSL security to protect all transactions so your credit card information is completely safe.

Frequently Asked Questions

A The arms will support two monitors side by side from 10” to 32” each and up to 20 lbs per monitor (total of 40 lbs combined). The largest monitor combination supported is 32” and 32”.
