Chief RXT2 X-Large FIT Low Profile Tilt Wall Mount (55-100")
Description
Chief RXT2 tilt wall mount features a unique hinged design and low-profile depth.

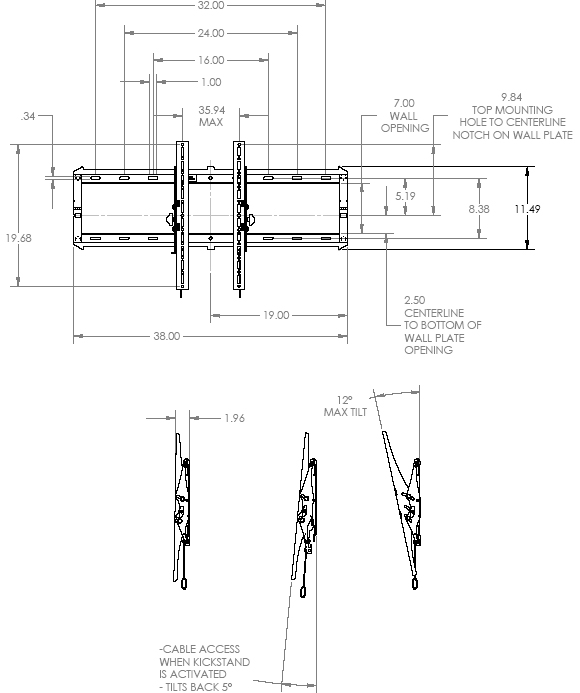

Technical Drawing
Specifications
| Certifications | TÜV Certified, UL Listed |
| Color | Black |
| Lateral Shift | Depends on mounting pattern of screen |
| Maximum Screen Thickness | 6" |
| Minimum Depth | 1.96" (49.8mm) |
| Mounting Pattern Compatibility (Universal Versions) | 200 x 200mm - 910 x 500mm |
| Notes | Steel stud mounting possible with series PAC115 and using 2 studs only |
| Number of Monitors | 1 |
| Shipping Weight | 16.5 lbs (7.48 kg) |
| Solution Type | Universal |
| Tilt | + 0°, - 12° |
| Typical Screen Sizes | 55 - 100" |
| Wall Stud Compatibility In | 16", 24" |
| Weight Capacity | 175 lbs (79.4kg) |
| Orientation | Landscape |
Features
Provides low-profile, fingertip tilt
Hinged design reduces packaging material
Wide open wall plate allows for easy cable routing and connection
GlideLock with Kickstand secures TV to wall plate without tools and includes kickstand for easy cable connection
Optional storage box provides a clean installation (PAC525, PAC526)
Steel stud mounting possible with series PAC115 and using 2 studs only
| Model | RXT2 |
| Manufacturer | Chief Mounts |
| Part Number | RXT2 |
| UPC | 841872143057 |
| Color | Black |
| Maximum Screen Thickness | 6" |
| Minimum Depth | 1.96" (49.8mm) |
| Mounting Pattern | 200 x 200mm - 910 x 500mm |
| Overall Dimensions | 20.5" x 38.0" x 2.0" (521 x 965 x 50mm) |
| Shipping Weight | 16.5 lbs (7.48 kg) |
| Tilt | + 0, - 12 degree |
| Monitor Size | 55 - 100" |
| Wall Stud | 16", 24" |
| Weight Capacity | 175 lbs (79.4kg) |
| Mounting Options | Wall |
| Number of Monitors | 1 Monitor |
| Orientation | Landscape |
