$325.00

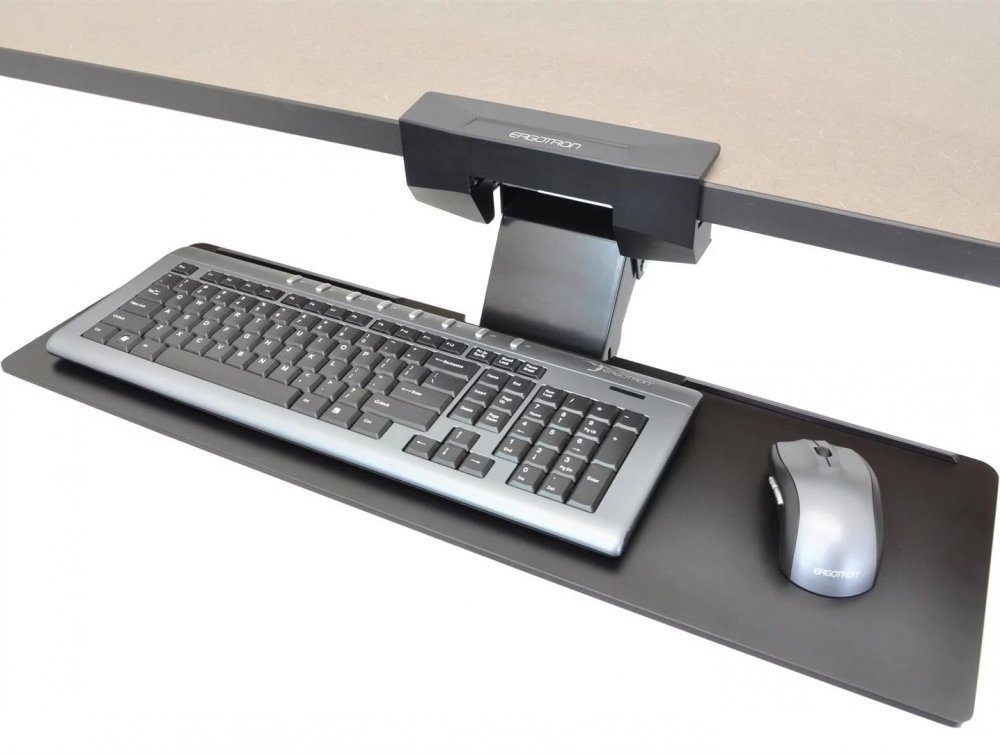

Open box Ergotron 97-582-009 Neo-Flex Underdesk Keyboard Arm

Weight Capacity: up to 3 lbs (1.4 kg)

Product ID 19717
Open box Ergotron 97-582-009 Neo-Flex Underdesk Keyboard Arm
Open box Ergotron 97-582-009 Neo-Flex Underdesk Keyboard Arm
Technical Drawing for Ergotron 97-582-009 Neo-Flex Underdesk Keyboard Arm

Description

Ergotron 97-582-009 adjustable keyboard platform is a necessity in any word-processing office application. Match this accessory with a monitor stand or arm for a complete ergonomic desktop solution.

Provides a full range of adjustment to accommodate a wide range of computer users. Stores the keyboard conveniently under the worksurface, where it can be pulled out whenever it’s needed.

Technical Drawing

Technical Drawing for Ergotron 97-582-009 Neo-Flex Underdesk Keyboard Arm

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
-

Up to 3 lbs

1.4 kg

6"

15.2 cm

15° - - -

Product Information

Part Number 97-582-009
Description Neo-Flex Underdesk Keyboard Arm (black)
Includes
  • Arm

  • One-piece tray

  • Desk clamp

  • Slide mechanism

  • Mounting hardware

Single Knob Adjustment For both height and tilt settings
Extract/Retract Range 10.75" (27.3 cm)
Tray Dimensions 26.9" x 8.9" (68.3 x 22.6 cm); large surface designed specifically to accommodate ergonomic keyboards
Mounting Options Attaches with front-clamp and a single screw (required for greater stability), or with four screws (supplied with product)
Compatible With desktop worksurfaces from .75" (1.9 cm) up to 1.5" (3.8 cm) thick
Designed To meet requirements per ANSI/BIFMA X5.5-2008
Product Weight 10.2 lbs (4.6 kg)
Shipping Dimensions 34.2" x 11" x 12.75" (87 x 28 x 32 cm)
Shipping Weight 14.4 lbs (6.6 kg)
Warranty Three (3) years

Benefits

  • Lift, lower and tilt your keyboard for optimum comfort

  • Stores under the worksurface when not in use; extends and retracts from under the worksurface

  • Tray accommodates larger keyboards and mouse equipment with its large one-piece surface

  • Easy and flexible installation: Inconspicuously clamps to front-edge of desktop, or remove clamp and attach with four screw under the surface

  • Ball-bearing slides produce smooth motion

  • Durable and sturdy construction: Arm and slide are made of steel and tray is composed of robust phenolic material

  • Provides a solid and stable data-entry platform

Product Options/Accessories

Model 97-582-009
Manufacturer Ergotron
Part Number 97-582-009
UPC 698833016505
