WorkRite 170-28TG Adjustable Locking Lever Arm with 28" Track

This product has been discontinued.

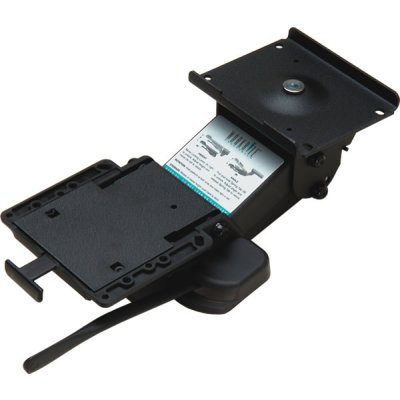

WorkRite Locking Lever Arm (28" Track)

Dimensions:
a = 27 13/16
b = 9 1/4"

Specifications:

Track Length	27 13/16"
Track Width	9 1/4"
Work surface Depth	22" or more
Tilt Range	-15° to +10°
Height Range	6"
Track Style	ThinGlide progressive ball-bearing slide

Our Lever Lock Arm securely locks in the desired keyboard platform height. Features a low profile, progressive ball bearing slide track for smooth, maintenance free operation.

Lever securely locks in desired keyboard platform height
Pull tab operates with just 3 lbs. of fingertip effort
Height range of 0 to -6"
360° swivel for easy positioning and storage

Adjustable arm with ADA lever that allows easy adjustment and locking of arm height

Locking Lever 28"

Locking Lever Cut Sheet

Features

ADA Lever Allows Easy Adjustment

ADA (Americans with Disabilities Act) lever allows simple adjustment and locking of height position.

Fingertip Operation

Pull tab operates with just 3 lbs. of finger-tip effort.

Sleek ThinGlide Track

Our ThinGlide progressive ball bearing track provides maximum knee clearance and smooth, consistent operation.

Easy Positioning

360° swivel allows for easy positioning and storage.

28" Track Length Available

Step 1: Choose your keyboard tray Color :

	Black
	Gray

Step 2 : Track Length ...27 13/16" track length for desks deeper than 8"

Step 3 : Choose your Swivel Plate :

Swivel Plate

Allows keyboard and mouse platform to pivot an extra 45° for special mounting requirements.

Easy to Install
Mounts between the arm and keyboard platform.

2179 -SP

Swivel Plate

3 Lbs.

Step 4 : Choose your Mounting Spacer :

Mounting Spacer

Required only when the edge is thicker than the rest of the worksuface.
Available in 16" and 21" lengths (please specify).

177-1	Mounting Spacer (1" Thickness)	10 Lbs.
177-3/4	Mounting Spacer (3/4" Thickness)	8 Lbs.
177-1/2	Mounting Spacer (1/2" Thickness)	7 Lbs.
177-1/4	Mounting Spacer (1/4" Thickness)	5 Lbs.

Step 5 : Choose your Adjustable Corner :

179ACD

Dimensions: 12" W x 1 3/4" H.
Adjusts to fit 1" to 2" thick work surfaces.
Clamping design eliminates spacers.
Converts 90 degree to useable work area.
Weight: 3 Lbs.
Color: Black

179CCD

a = 17.5" ... b = 9.25" ... c = 1.5"
Move operator closer to work surface.
Designed specifically to fit model # 321 with Pinnacle 2 Arm. Also work with the following platform models: 187,188,487,488.
Converts 90 degree corners and diagonal corners less than 17" to useable work area.
Weight: 4 Lbs.
Color: Black / Gary.

179CR

a = 26" ... b =15" ... c = 1 1/2".
Fits all platforms up to 28" wide.
Works with all WorkRite keyboard arms.
Converts 90" corners and corners with keyboard cutouts to useable diagonal area.
Weight: 4 Lbs.
Color: Black / Gray.
