We are sorry but item below has been discontinued. Above are some similar products we can offer instead.

Ergotron 24-173-194 LX Large Display Cart discontinued replaced by 24-191-057

Be the first to review this product
Product ID: 14415
Our Price: $834.81
Shipping: $62.74 * - UPS Ground
Usually ships in 2 to 3 business days
* applies to Contiguous United States


Ergotron 24-173-194 went END of LIFE on 12/31/08. Replaced by Ergotron 24-191-057 Neo-Flex Mobile Media Center







Accessories for Ergotron 24-173-194 LX Large Display Cart



Ergotron 80-102-064 Universal CPU Holder

Universal CPU Holder 80-102-064


Small CPU Holder 80-063-200




Medium CPU Holder 80-058-200

Ergotron 83-002 Power Strip

Ergotron Power Strip 83-002

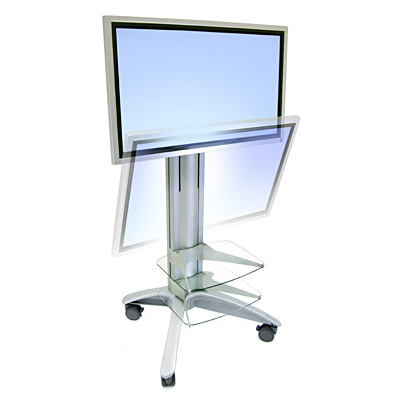

Ergotron 24-173-194 LX Large Display Cart Animated Image












Ergotron 24-173-194 LX Large Display Cart



General Information









Buy from an Authorized Dealer

Please check Ergotron's "Where to Buy" section and look for a list of Authorized Dealers

sorted alphabetically

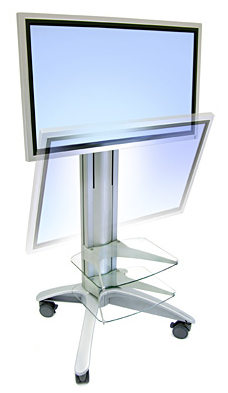

Ergotron 24-173-194 LX Large Display Cart

Ergotron 24-173-194 LX Large Display Cart



Ergotron 24-173-194 LX Large Display Cart



Transform any space into a media center by moving your display to the audience. Built for displays weighing 60–90 lbs, this cart effortlessly adjusts through a 20-inch range, providing the right screen height for both seated and standing audiences

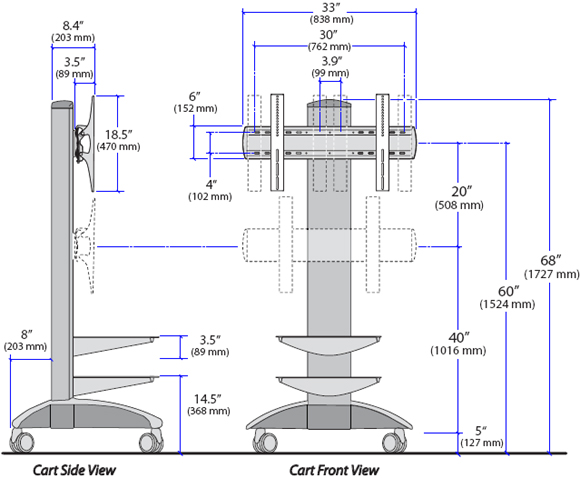

Dimensional Diagram for Ergotron LX Large Display Cart



Dimensional Diagram for Ergotron LX Large Display Cart






Technical Specifications:










     LCD Size

 Wt. Capacity

     Lift

Tilt

Pan

Rotation

VESA

40"–50"

102–127 cm

60–90 lbs

27–41 kg

20"
50.8 cm

20°

-

-

MIS-F







Product Information:



Part Number

24-173-194

Description

LX Large Display Cart (VHD version)

Includes

Two (2) tempered-glass shelves, four (4) 4" locking casters, cable management kit.Customer-supplied power strip can be attached to rear of cart.

Weight Capacity

Display = 60–90 lbs (27–41 kg); per shelf = 30 lbs (13.6 kg)

Compatible Displays

40"–50"

Complies

With UL Tip Standards 1667 and 1678

Monitor Attachment

Mounting holes must fit within spacing range below...
Horizontal = 100 mm (min.) to 750 mm (max.)
Vertical = 100 mm (min.) to 450 mm (max.)

Product Weight

85 lbs (38.6 kg)

Shipping Dimensions

66.1" x 19.8" x 13.9" (1680 x 503 x 335 mm)

Shipping Weight

114 lbs (51.7 kg)

Warranty

Five (5) years







Benefits:



Saves money by sharing a display over multiple rooms.

Stylish looks, yet super rugged construction.

Adjusts with just a touch—no knobs or levers.

Easily moves through standard-size doorways and over thresholds.

Security fasteners deter theft of display.

Shelves attach at any point of the cart’s post.

Integrated cable management.







Images:



Ergotron 24-173-194 LX Large Display Cart Inuse Image

Ergotron 24-173-194 LX Large Display Cart Inuse Image





Ergotron 24-173-194 LX Large Display Cart Inuse Image

Ergotron 24-173-194 LX Large Display Cart Inuse Image

Ergotron 24-173-194 LX Large Display Cart Inuse Image










Literature (Please open the following documents for more technical information)

Description

File Type

Ergotron 24-173-194 Dimensional Illustration

reader-14.jpg - pdf

Ergotron 24-173-194 Product Sheet

reader-14.jpg - pdf

Ergotron 24-173-194 Installation Manual

reader-14.jpg - pdf

Ergotron 24-173-194 Education Flyer

reader-14.jpg - pdf

Ergotron 24-173-194 Hospitality Flyer

reader-14.jpg - pdf
