Ergotron 33-325-200 DS100 Horizontal Quad Monitor Desk Stand

Be the first to review this product
Product ID: 15212
Recommended Accessories
Our Price: $693.75
Shipping: $39.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

Description

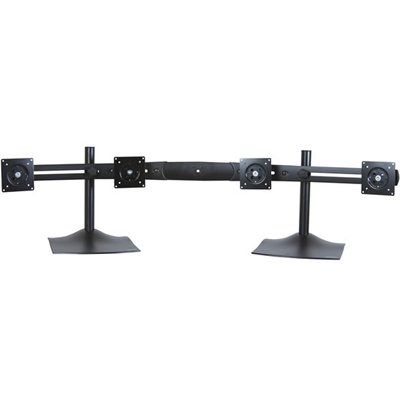

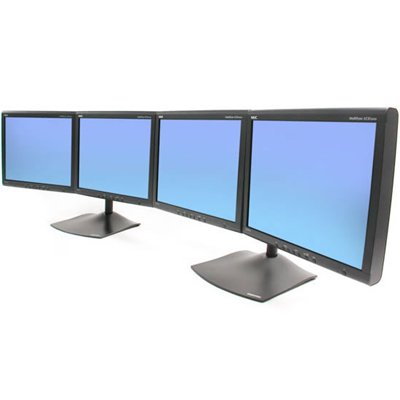

Ergotron 33-325-200 conserves desk space by suspending four flat panels across a level horizontal plane. Easily view multiple screens at once to increase productivity. DS100’s modular design allows customization to fit your needs.



Technical Drawing

Ergotron DS100 Quad-Monitor Desk Stand, Horizontal



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 17" 31 lbs

14 kg

- - - 360° P/L MIS-D



Product Information

Part Number:

33-325-200

Description:

DS100 Quad-Monitor Desk Stand, Horizontal (black)

Includes:

  • Two (2) Bases
  • Two (2) 14" poles
  • Paraview bow
  • Four (4) sliding brackets

Display Width:

Maximum outside width of display is 16" (41 cm)

Weight Capacity:

31 lbs (14 kg) per monitor; 124 lbs (56 kg) total

Mounting Standards:

VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Bow:

Height adjustable bow

Install:

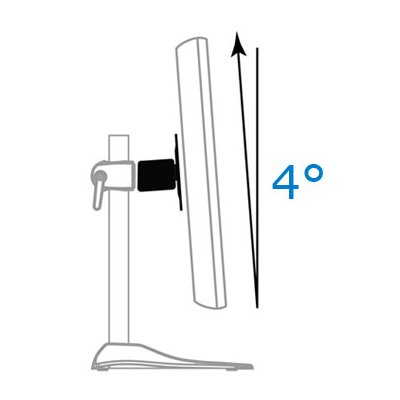

Install displays with 4°-angle off-set: position them upward, inward, outward or downward for optimized viewing conditions.

Shipping Dimensions:

31" x 16" x 9.5" (788 x 407 x 242 mm)

Shipping Weight:

31 lbs (14.1 kg)

Warranty:

Five (5) years



Benefits

  • View multiple monitors simultaneously with patented Paraview Technology.
  • Position monitors for maximum productivity.
  • Cable management system organizes and routes cables.
  • Low-profile base saves desk space.
  • Accommodates various LCD sizes; slide displays into place so screen edges align.
  • Durable aluminum and steel construction creates an extremely stable platform.



Literature (Please open the following documents for more technical information)

Product Sheet - Ergotron 33-325-200 DS100 Quad Display Desk Stand, Horizontal

 - pdf

Installation Manual - Ergotron 33325200 DS100 Quad LED Monitor Horizontal Desk Stand

 - pdf

Dimensional Illustrations - DS100 Horizontal Quad LCD Monitor Desk Stand

 - pdf





Ergotron Logo

Hyperlink of all Ergotron products

Model 33-325-200
Manufacturer Ergotron
Part Number 33-325-200
UPC 698833008272
Color Black
Monitor Size Up to 17". Maximum outside width of display is 16" (41 cm)
Weight Capacity 31 lbs (14 kg) per monitor; 124 lbs (56 kg) total
Rotation (P/L) 360 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Shipping Dimensions 31" x 16" x 9.5" (788 x 407 x 242 mm)
Shipping Weight 31 lbs (14.1 kg)
Warranty Five (5) years
