We are sorry but item below has been discontinued.

Chief MSRV Universal Fixed Wall Mount for 26 to 40 inch LCD Flat Panel Displays

Be the first to review this product
Product ID: 15309
Recommended Accessories
Our Price: $79.20
Shipping: $15.95 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Accessories for Chief MSRV Fixed Wall Mount

Chief KSA1022B or KSA1022S Wall Extrusion (Wall Track)

Chief KSA1022 Wall

Extrusion (Wall Track)

Chief MAC400 - 90° Rotation Adapter Black

Chief MAC400

90° Rotation Adapter Plate





General Information



Image of Warranty and Returns





Nationwide Delivery Image

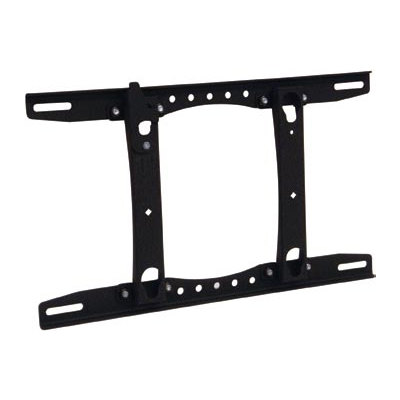

Chief MSRV Universal Fixed Wall Mount for 26 to 40 inch Flat Panel Displays



Chief MSRV Universal Fixed Wall Mount for 26 to 40 inch Flat Panel Displays









Features of Chief MSRV Fixed Wall Mount:

    1.  Low Profile: Designed to ensure mount remains concealed behind the screen.



    2.  Q-Latch Mounting System: Flat panel secures to mount with a latching flag. Easy to

         connect/disconnect - no tools needed. Protect display by adding a padlock, provides

         integrated security.



    3.  Rapid Leveling: Hands free leveling of mount on wall after installation.



    4.  Integrated lateral shift up to 4” on a single stud and 1.5" on 16" centers.



    5.  Expanded wall plate opening provides cable access and reduces risk of outlet interference



    6.  Provides cable access through sides of the mount.



    7.  Multiple mounting options including single stud at five different positions and 16” center stud

       mounting.



    8.  UL listed for proven strength.



    9.  VESA 100 x 100 mm, 200 x 100 mm, 200 x 200 mm, 300 x 100 mm, 300 x 200 mm or 400 x

       200 mm compliant (custom interface brackets also available)









Technical Drawing for Chief MSRV Universal Fixed Wall Mount



Technical Drawing for Chief MSRV Universal Fixed Wall Mount





VESA image of Chief MSRV Universal Fixed Wall Mount









Description of Chief MSRV:

The MSR is a low-profile, fixed wall mount for mid-size flat panel displays.







Specifications:

Depth from Wall:

1.25" (32 mm) - Does not include screen interface (typically 1" or less)

Dimensions (H x W x D):

10.88" x 18.5" x 1.25" (276 x 470 x 32 mm)

Weight Capacity:

100 lbs (45.4 kg)

Integrated Lateral Shift:

1.5" (38 mm) left/right, 2" (51 mm) left/right of single stud)

Mounting Options:

16" on-center studs or single stud

Color:

Black

VESA Compatibility:

100 x 100 mm, 200 x 100 mm, 200 x 200 mm, 300 x 100 mm, 300 x 200 mm or 400 x 200 mm







Literature (Please open the following documents for more technical information)

Description

File Type

Chief MSRV Fixed Wall Mount - Catalog Page

- pdf

Chief MSRV Flat Panel Fixed Wall Mount - Installation Assembly

- pdf

Chief MSRV Fixed Wall Mount - Technical Drawing

- pdf

Chief MSRV Flat Panel Fixed Wall Mount - Installation Interface

- pdf

Chief MSRV Flat Panel Fixed Wall Mount - Technical Drawing Interface

- pdf

Chief MSRV Fixed Wall Mount - Healthcare Solutions

- pdf

Chief MSRV Flat Panel Fixed Wall Mount - Digital Signage

- pdf
