We are sorry but item below has been discontinued. Above are some similar products we can offer instead.

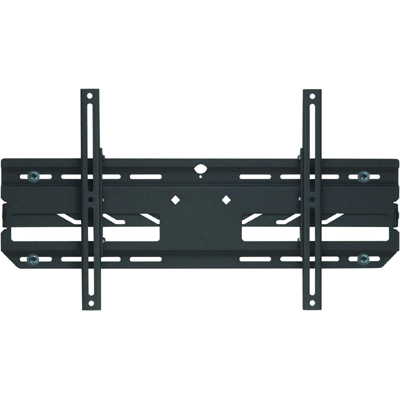

Chief RLF1 Universal Fixed Wall Mount for 30 to 60 inch Large Flat Panel LCD LED Display

Wall Mount LCD Monitor Arm
Be the first to review this product
Product ID: 15312
Recommended Accessories
Our Price: $79.20
Shipping: $15.95 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Accessories for Chief RLF1 Fixed Wall Mount

Chief KSA1022B or KSA1022S Wall Extrusion (Wall Track)

Chief KSA1022 Wall Extrusion (Wall Track)







General Information

Image of Warranty and Returns



Nationwide Delivery Image

Buy from an Authorized Dealer





Chief RLF1 Universal Fixed Wall Mount for 30 to 60 inch Large Flat Panel Displays



Chief RLF1 Large Flat Panel Universal Fixed Wall Mount









Features of Chief RLF1 Fixed Wall Mount:

    1.  Integrated Lateral shift: Reposition mount 10” (254 mm) left or right after installation for

         ultimate positioning flexibility.



    2.  Exclusive Glide Lock Latch: Tool-less locking feature saves time and effectively secures flat

         panel to wall mount.



    3.  Rapid Leveling: Hands free leveling of mount on wall.



    4.  Multiple mounting option including 16", 20" and 24" on center studs.



    5.  Integrated security with addition of padlock.



    6.  All mounting hardware included.









Technical Drawing for Chief RLF1 Large Flat Panel Universal Fixed Wall Mount



echnical Drawing for Chief RLF1 Large Flat Panel Universal Fixed Wall Mount









Universal Fixed Mount:

The maximum width between your mounting holes must be less than 26.9” (683 mm) and the maximum height must be less than 17” (432 mm) to ensure compatibility of this mount.



Description of Chief RLF1:

The RLF1 Universal Fixed Mount for large flat panels offers unique installation features in an ultra low-profile design. Determine the PWR model number you need by cross-referencing the manufacturer and model number of your display on the Cross-Reference.







Specifications:

Depth from Wall:

1.63" (41 mm)

Dimensions (H x W x D):

18” x 29” x 1.63” (457 x 737 x 41 mm)

Lateral Shift:

Up to 10" (254 mm)

Color:

Black

Weight Capacity:

175 lbs (80.5 kg)







Literature (Please open the following documents for more technical information)

Description

File Type

Chief RLF1 Universal Fixed Wall Mount - Catalog Page

- pdf

Chief RLF1 Flat Panel Fixed Wall Mount - Installation Assembly

- pdf

Chief RLF1 Fixed Universal Wall Mount - Technical Drawing

- pdf
