We are sorry but item below has been discontinued.

Peerless SA750P Articulating Wall Arm for LCD Screen DISCONTINUED replaced by SA761P

Be the first to review this product
Product ID: 15456
Recommended Accessories
Our Price: $237.99
Shipping: $26.52 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States



Peerless SA750P Articulating Wall Arm is DISCONTINUED replaced by SA761P

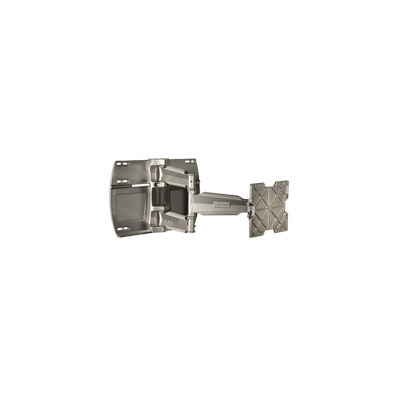

Peerless SA 750P Articulating Wall Arm for 32" to 50" Screens



General Information














Peerless SA-750P Articulating Wall Arm for 32" to 50" Screens



Peerless SA750P Articulating Wall Arm for 32





SA750P Articulating Wall Arm for 32" to 50"



Dimensional Diagram for SA750 Articulating Wall Arm for 32






SA750P Articulating Wall Arm:

The new SmartMount 700 Series Articulating Arms are more than just another pretty mount. With a full 1" of internal cable management and color-coded electrical and A/V component knock-outs, the new SA750 models provide the most cable management in the industry for a truly clean installation. Its double stud, single arm design allows for up to 10.75" of horizontal adjustment for perfect screen placement. The SA750 models are UL-listed to hold up to 4 times the stated load capacity.





Product Information:

Model Numbers

SA750P(-S): VESA 100/200x100/200x200 mm compliant

SA750PU(-S): Includes universal adapter plate for mounting holes up to 30.13"W x 17.24"H

Product Specifications

Features:

  • 1" clearance per channel for clean and simple cable management

  • 10.75" of horizontal adjustability for ideal screen placement

  • Arm extends 27.8"(plus thickness of screen adapter)

  • UL listed for strength and reliability

  • Color-coded wall access ports in wall plate provide optimal electrical access

  • ±2.5º roll to level the screen horizontally

  • +15/-5º of one-touch tilt for easy screen positioning

  • All-metal load bearing construction provides strength and clean looks

  • Landscape and portrait mounting capability

Dimensions (W x H x D)

SA750P(-S): 22.75" x 14.5" x 4.8"-27.8" (57.78 x 36.83 x 12.19-70.6 cm)

SA750PU(-S): 32.87" x 18.25" x 6.8"-29.8" (83.48 x 46.35 x 17.27-75.69 cm)

Load Capacity

150 lb (68 kg)

Product Weight

SA750P(-S): 27.5 lb (12.5 kg)

SA750PU(-S): 34.1 lb (15.5 kg)

Finish

Scratch resistant fused epoxy

Available Colors

High gloss black and high gloss silver

Accessories



ACC615: Metal Stud Togglers (for up to 110 lb flat panels)

SCS222: Double Stud Dual Component Shelf System

SCS212: Dual Component Shelf System

SCS221: Double Stud Component Shelf

SCS211: Component Shelf

ACC924/926: Cable Management Wall Channel

ACC925: Security Fasteners

MSA-101 (S): Center Channel Speaker Mount

MSA-301 (S): Center and Side Speaker Mount

Package Specifications

Package Contents

Wall plate, articulating arm, VESA adapter plate, universal brackets (U models),

mounting and screen attachment hardware

Units in Package

1

Package Size (W x H x D)

SA750P(-S): 15.5" x 4.5" x 22.12" (39.37 x 11.4 x 56.18 cm)

SA750PU(-S): 15.5" x 6.5" x 22.12" (39.37 x 16.5 x 56.18 cm)

Package Ship Weight

SA750P(-S): 32.8 lb (14.9 kg)

SA750PU(-S): 40.1 lb (18.2 kg)

Package UPC Code

SA750P: 735029251187

SA750P-S: 735029251194

SA750PU: 735029251262

SA750PU-S: 735029251279

Warranty

Limited 5-year





Additional Images:















Product Profile reader-14.jpg - pdf

Catalog

reader-14.jpg - pdf

Technical data

reader-14.jpg - pdf

Installation Sheet

reader-14.jpg - pdf













Model SA750P or SA750-S
Manufacturer Peerless Mounts
Part Number SA750P or SA750-S
UPC 735029251194
