We are sorry but item below has been discontinued.

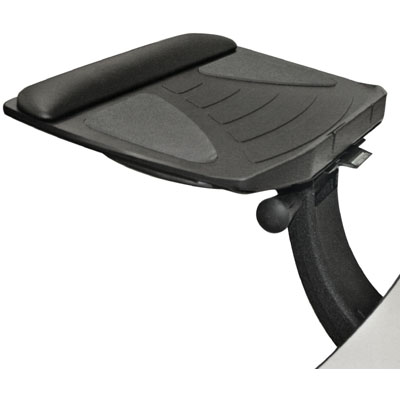

WorkRite 3177-28N Pinnacle AD Value Adjustable Keyboard Platform Arm

Keyboard tray is for demonstration only. Please order your keyboard tray separately.
Be the first to review this product
Product ID: 15722
Recommended Accessories
Our Price: $269.00
Shipping: $0.00 *
Usually ships in 3 to 5 business days
* applies to Contiguous United States





Pinnacle AD Value - A Keyboard Arm with Extended Above Desk Range



The Pinnacle AD Value is Workrite’s arm with the greatest range. It includes thoughtful features found in our Pinnacle family, like Lift-n-Lock for re-positioning and easy tilt adjustment with a built in tilt gauge. Ideal for situations where above desk keyboard platform is desired and stowing the platform under desk is convenient.







WorkRite Pinnacle AD Value 3177-28N Adjustable Keyboard Arm



General Information









Buy from an Authorized Dealer

Please check WorkRite's "How to Buy" section and go to Dealer Finder link to get a list of

Authorized Dealers


Product Information



WorkRite Pinnacle AD Value Adjustable Keyboard Arm 3177-28N with 28 inch Track



WorkRite Pinnacle AD Value Adjustable Keyboard Arm 3177-28N with 28 inch Track











WorkRite Pinnacle AD Value Arm - Range of Motion



WorkRite Pinnacle AD Adjustable Keyboard Arm 3177 - Height Range



Height Range



WorkRite Pinnacle AD Adjustable Keyboard Arm 3177 - Tilt Range



Tilt Range





Retracted Storage - Stored position with typical 10.5 inch platform



Retracted Storage - Stored position with typical 10½" platform







WorkRite 3177 Pinnacle AD Adjustable Keyboard Arm



Specifications:



Tilt Range

-15° to +10º

Height Range

7¼" above desk to 7" below

Swivel

360º

Track Style

Nylon glide low profile track




  WorkRite Pinnacle AD Value Arm -Cut Sheet













Workrite Pinnacle AD Value Adjustable Arm features:

  • Features nylon glide track

  • Height range from 7¼" above desk to 7" below

  • 360º swivel for easy positioning and storage

  • Tilt range: -15° to +10º

  • Lift-n-Lock for one touch height adjustment

  • Easy tilt adjustment with ergonomic knob

  • Non-intrusive, low profile track provides maximum knee clearance in 22" and 28" lengths

  • Complete, under desk storage with keyboard platforms as deep as 12" with a 22" track









Pinnacle AD Value Keyboard Arm information:



Pinnacle AD Value 3177 includes tilt indicator gauge for accurate tilt adjustment



Includes tilt indicator gauge for accurate tilt adjustment

Extended Height Range and Storability:



The Pinnacle AD features our greatest height range of 14½", 7½" above work surface and 7" below. At 7" below, the Pinnacle AD Value meets the seated low requirement of BIFMA G-1 2002 for the 5th percentile adult female and exceeds the seated requirement for the 95th percentile adult male. In addition the Pinnacle AD Value’s extended above desk height range gives the majority of users the ability to work in standing positions. The unique design of the Pinnacle AD Value gives the best keyboard platform storage available in the industry, fully storing a platform as deep as 11½" under the work surface on a 22" track.









Ergonomically designed knob provides easy tilt adjustment



Ergonomically designed knob provides easy tilt adjustment

Tilt Range and Tilt Gauge:



The Pinnacle AD Value features a full 25˚ range tilt based on the ANSI BIFMA G-1 2002 Ergonomics specifications of 10˚ positive tilt and 15˚ negative tilt. Our convenient tilt gauge at the rear of the arm allows users to identify the comfortable tilt angle and easily set the tilt to their preferred position with our dial-tilt knob located on the right side of the arm.









Ball bearing track for years of maintenance free use



Ball bearing track for years of maintenance free use

Stores Effortlessly on Ball bearing Track:



The Pinnacle AD Value uses our high quality low profile progressive ball bearing track for ease of use and years of trouble free service. Available in 17", 22" and 28" lengths the Pinnacle AD Value installs easily on all popular workstation depths. Also offered with a nylon track for budget conscious projects.











Step 1: Color:




Black





Step 2 : Track Length ..16 13/16" track length for desks deeper than 17"







Step 3 : Choose your Swivel Plate :





Swivel Plate



Workrite Swivel Plate 2179-SP



Allows keyboard and mouse platform to pivot an extra 45° for special mounting requirements.

  • Easy to Install

  • Mounts between the arm and keyboard platform.

2179 -SP

Swivel Plate

3 Lbs.







Step 4 : Choose your Mounting Spacer :





Mounting Spacer



WORKRITE Mounting Spacer

  • Required only when the edge is thicker than the rest of the worksuface.

  • Available in 16" and 21" lengths (please specify).

177-1

Mounting Spacer (1" Thickness)

10 Lbs.

177-3/4

Mounting Spacer (3/4" Thickness)

8 Lbs.

177-1/2

Mounting Spacer (1/2" Thickness)

7 Lbs.

177-1/4

Mounting Spacer (1/4" Thickness)

5 Lbs.







Step 5 : Choose your Adjustable Corner :





Workrite Adjustable Corner Diagonal 179ACD

179ACD

  • Dimensions: 12" W x 1 3/4" H.

  • Adjusts to fit 1" to 2" thick work surfaces.

  • Clamping design eliminates spacers.

  • Converts 90 degree to useable work area.

  • Weight: 3 Lbs.

  • Color: Black







Workrite Adjustable Compact Corner Diagonal 179CCD

179CCD

  • a = 17.5" ... b = 9.25" ... c = 1.5"

  • Move operator closer to work surface.

  • Designed specifically to fit model # 321 with Pinnacle 2 Arm. Also work with the following platform models: 187,188,487,488.

  • Converts 90 degree corners and diagonal corners less than 17" to useable work area.

  • Weight: 4 Lbs.

  • Color: Black / Gary.





Workrite Adjustable Corner Rectangle 179CR

179CR

  • a = 26" ... b =15" ... c = 1 1/2".

  • Fits all platforms up to 28" wide.

  • Works with all WorkRite keyboard arms.

  • Converts 90" corners and corners with keyboard cutouts to useable diagonal area.

  • Weight: 4 Lbs.

  • Color: Black / Gray.
