Chief LTAU Large FUSION Tilt Video Wall Mount (37-63")

Be the first to review this product
Product ID: 16372
List Price: $239.00
Our Price: $164.00
You Save: $75.00
Shipping: $12.00 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Chief LTAU FUSION Flat Panel Tilt Video Wall Mount (37"-63" Displays)



General Information



Image of Warranty and Returns





Nationwide Delivery Image

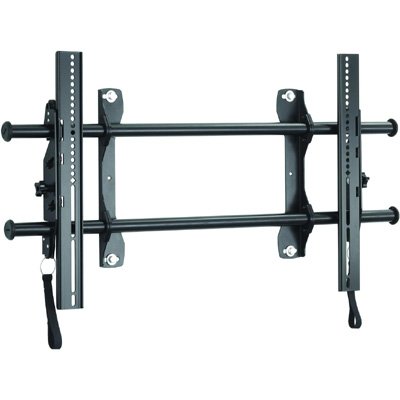

Chief LTAU FUSION Universal Flat Panel Tilt Video Wall Mount 37"-63" Displays



Chief LTAU FUSION Universal Flat Panel Tilt Video Wall Mount 37"-63" Displays









Features of Chief LTAU:

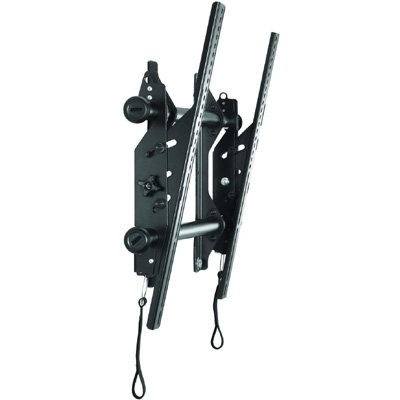

    1.  Centris Low Profile Tilt: Centris fingertip tilt technology uses the center of gravity to balance

       the screen while maintaining a low profile under 2" deep. Screen angle stays set in place

       until readjusted.

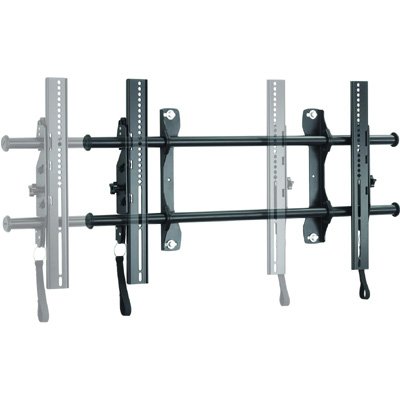

    2.  CenterLess Shift: Provides up to 16" of post installation lateral shift - 8" left/right of

         upgrades - for limitless centering capabilities.



    3.  ClickConnet: Hear an audible click when the screen safely engages with the mount. A built-in

         cable stand provides easy access under the screen.



    4.  Customizable Accessory System: A full line of supporting accessories can be integrated

         with the mount, extending the same adjustment benefits to the entire configuration.



    5.  Provides integrated security, just add a padlock.









Technical Drawing for Chief LTAU FUSION Flat Panel Tilt Video Wall Mount



Technical Drawing for Chief LTAU FUSION Flat Panel Tilt Video Wall Mount







Description of Chief LTAU:

This installer-inspired tilt mount solves top flat panel installation problems, offering perfect TV positioning and flexible adjustments for larger flat panel screens.



  • Provides low profile, fingertip tilt.

  • Easy accessory attachment.







Specifications:

Depth from Wall:

1.99" (51 mm)

Tilt:

0 - 12 degree

Max Lateral Shift:

16" (406 mm)

Mounts on Studs:

16", 20" , 24"

Dimensions (H x W x D):

13.2" x 34.44" x 1.99" (335 x 875 x 51 mm)

Max Mounting Pattern:

Height - 19.9" (506 mm), Width - 35.25" (895 mm)

Weight Capacity:

200 lbs (90.7 kg)

Color:

Black







Frequently Asked Questions:

Q: What size padlock can I use to add security?

A: Use a padlock with maximum diameter of 0.35" (8.9 mm).





Literature (Please open the following documents for more technical information)

Description

File Type

Chief LTAU FUSION Flat Panel Tilt Video Wall Mount - Installation Assembly

reader-14.jpg - pdf

Chief LTAU FUSION Tilt Video Wall Mount 37"-63" Displays - Technical Drawing

reader-14.jpg - pdf

Chief LTAU FUSION Universal Tilt Video Wall Mount - Catalog Page

reader-14.jpg - pdf

Chief FUSION Fixed and Tilt Mounting System Brochure

reader-14.jpg - pdf











Chief Logo



Hyperlink of all Chief products



Model LTAU
Manufacturer Chief Mounts
Part Number LTAU
Mounting Options Wall
