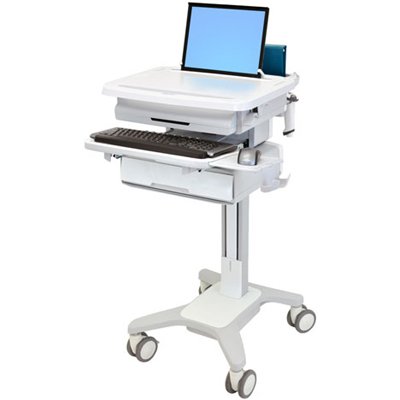

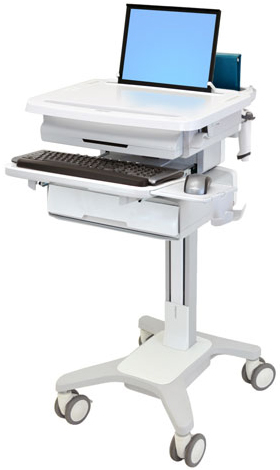

Ergotron SV31-80111 StyleView Patient healthcare Delivery PHD Laptop Cart with 1 Drawer and Non-powered (white/grey)
|
|
|
|
|
|
|
|
Description of Ergotron SV31-80111:
Patient Healthcare Delivery (PHD): Auto-locking drawer enables simple and efficient non-controlled medication management at the point-of-care. This innovative, truly ergonomic and easy-to-maneuver laptop healthcare cart features sit-to-stand height adjustment and an adjustable back-tilt keyboard tray.
|
|
|
|
|
|
|
|
|

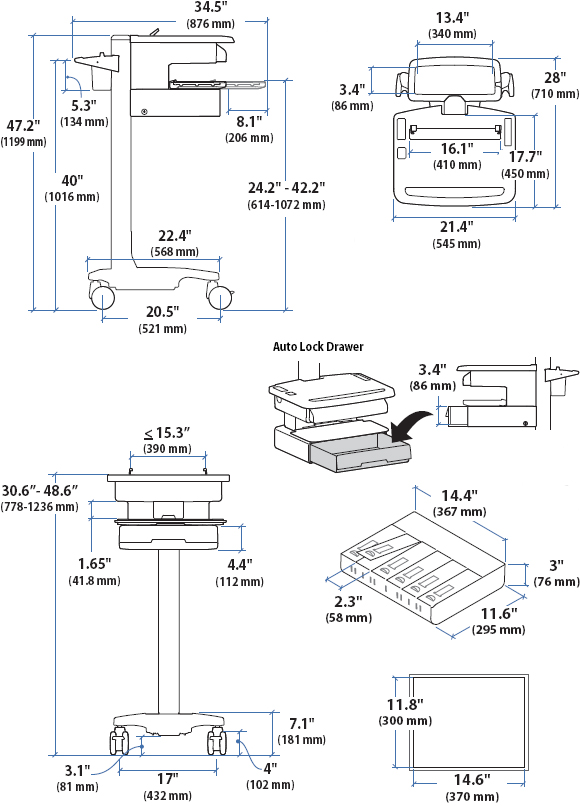

Technical Drawing for Ergotron SV31-80111 StyleView Patient healthcare Delivery PHD Notebook Cart with 1 Drawer and Non-powered (white/grey)
|
|
|
|
|
|
|
|
Technical Specifications:
|
|
|
|
|
|
|
|
|
|
LCD Size
|
Wt. Capacity
|
Lift
|
Tilt
|
Pan
|
Rotation
|
VESA
|
|
up to 17"
|
up to 23 lbs
10.4 kg
|
20"
51 cm
|
- |
- |
-
|
-
|
|
|
|
|
|
|
Product Information:
|
|
Part Number:
|
SV31-80111
|
|
Description:
|
StyleView PHD Laptop Cart, 1 Drawer, Non-powered (white/grey)
|
|
Included:
|
-
Auto-locking drawer
-
Cassette insert with 6 compartments
-
Worksurface
-
Secure laptop compartment
-
Ethernet ready-on function and four-port USB hub
-
Scanner holder bracket
-
Mouse holder
-
Wrist rest
-
Back-tilt keyboard tray
-
Left/right mouse tray
-
Front and rear handle
-
Storage basket
-
Cable storage
-
Four casters (two locking)
|
|
Laptop Holder Internal Dimensions:
|
17"W x 12.5"D x 3.75"H (43 x 32 x 9.5 cm)
|
|
Total Maximum Load of Height Adjustment Assembly:
|
23 lbs (10.4 kg).
This is the sum of the following components: Capacity of worksurface, keyboard tray and auto lock drawer ≤ 10 lbs (4.5 kg), capacity of CPU compartment ≤ 13 lbs (5.9 kg)
|
|
Laptop and Worksurface:
|
Laptop and worksurface adjust 20" (51 cm) in tandem
|
|
True Ergonomics:
|
-
Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
-
Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. Unlike competitive offerings, shorter users can work comfortably and productively in a seated position
-
Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Height adjustment and keyboard placement require just a touch
-
Actual cart weight is just 75 lbs (34 kg), making system relocation easy. Four ultra-smooth gliding casters for extremely easy push/pull mobility, two locking casters ensure lock-in-place stability
|
|
Safe:
|
-
Surfaces are treated with Agion Antimicrobial for product protection; handles are smooth and continuous for improved clean ability
-
Auto-locking drawer securely stores PINs for up to 10 users
-
Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
-
Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety
-
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
-
One-piece worksurface with no seams, easy-to-clean design promotes infection control
-
Lockable, ventilated enclosed storage for notebook. Keys and locks are heavy-duty
-
Front-locking casters
-
Push-button Ethernet ready-on function on worksurface: Awaken enclosed computer from energy-saving hibernation mode with the touch of an external button- facilitates easy compliance with EnergyStar 4.0 guidelines
-
Designed to meet guidelines established by the American National Standards Institute for computer use
|
|
Service:
|
|
|
All the Details Covered:
|
-
Rear basket keeps task-related items where they can be quickly accessed
-
Universal mounting slot for accessories and equipment
-
A unique cable management system conceals and organizes cords, making cleaning easy
-
Ships fully assembled and is easily accessible from container
-
Four amber LEDs provide light over keyboard tray or drawer; includes 15 minute auto shut-off
-
Easy access to components for field replacement and serviceability: Fan, keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time
-
Large drawer includes cassette insert to support up to 6 patients
-
TAA (Trade Agreements Act) compliant
-
Laptop screen holders: Prevents the laptop screen from vibrating for less damage to hinges over time
-
Barcode scanner holder provides easy access to hand-held scanner
|
|
Compatibility and Dimensions:
|
-
Open-architecture design accommodates, most laptops - even widescreen and future hardware deployments and upgrades
-
Laptop holder internal dimensions: 17"W x 12.5"D x 3.75"H (43 x 32 x 9.5 cm)
-
Compact Wheel-to-Wheel Base Dimensions: 17" x 20.5" (43 x 52 cm)
-
Work surface Dimensions: 20.9"W x 16.4"D (53 x 42 cm)
|
|
Shipping Dimensions:
|
23" x 30" x 55" (58 x 76 x 140 cm)
|
|
Shipping Weight:
|
110 lbs (50 kg), actual cart weight = 75 lbs (34 kg)
|
|
Warranty:
|
Five (5) years
|
|
|
|
|
|
|
|
|
Benefits of Ergotron SV31-80111:
|
|
1. Auto-locking drawer: Simple and efficient non-controlled medication management at the point-
of-care reduces opportunities for errors; security system stores PINs for up to 10 users.
|
|
2. Large drawer includes cassette insert with six storage compartments to support six patients
|
|
3. Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’
touch and enables nurses to focus on their patients.
|
|
4. Truly ergonomic design accommodates the largest range of caregivers; Designed for sitting or
standing with single-motion fluid adjustment - helps promote caregiver wellness.
|
|
5. Surfaces are treated with Agion Antimicrobial for product protection.
|
|
6. StyleView’s small footprint, with ultra-smooth gliding casters, travels across crowded carpeted
or hard floors with ease - perfect for space constrained areas.
|
|
7. Open-architecture design accommodates most laptops - even widescreen - easing future
hardware deployments and upgrades.
|
|
8. Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-
free sit-to-stand height adjustment.
|
|
|
