We are sorry but item below has been discontinued.

Ergotron SV31-80211 StyleView Patient Healthcare Delivery PHD LCD Cart with 1 Drawer Non-Powered

Be the first to review this product
Product ID: 16391
Recommended Accessories
Our Price: $1,539.99
Shipping: $124.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
General Information



Image of Warranty and Returns

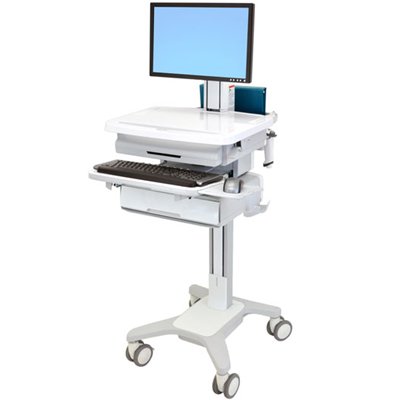

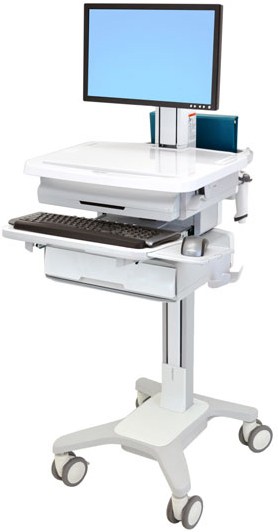

Ergotron SV31-80211 StyleView Patient healthcare Delivery PHD LCD Cart with 1 Drawer and Non-powered (white/grey)



Ergotron SV31-80211 StyleView Patient healthcare Delivery PHD LCD Cart with 1 Drawer and Non-powered (white/grey)







Description of Ergotron SV31-80211:

Patient Healthcare Delivery (PHD): Auto-locking drawer enables simple and efficient non-controlled medication management at the point-of-care. This innovative, truly ergonomic and easy-to-maneuver laptop healthcare cart features sit-to-stand height adjustment, independent screen positioning and an adjustable back-tilt keyboard tray.

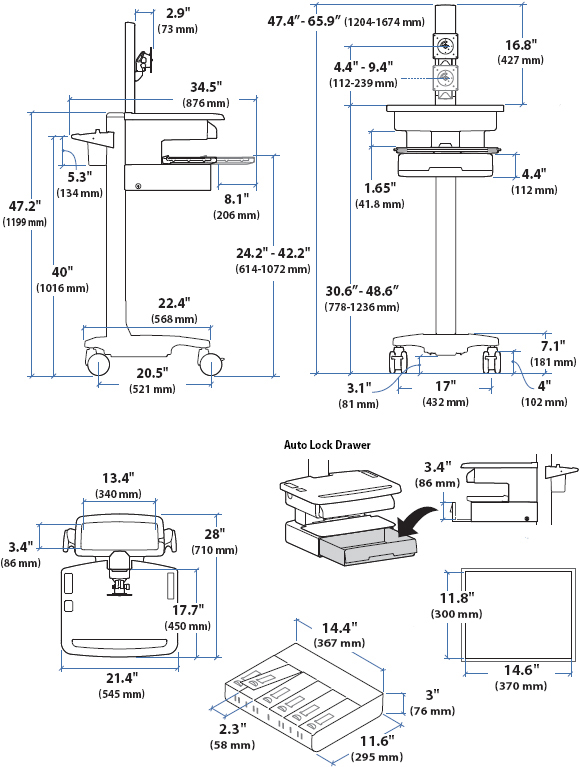

Technical Drawing for Ergotron SV31-80211 StyleView Patient healthcare Delivery PHD LCD Cart with 1 Drawer and Non-powered (white/grey)



Technical Drawing for Ergotron SV31-80211 StyleView Patient healthcare Delivery PHD LCD Cart with 1 Drawer and Non-powered (white/grey)









Technical Specifications:








     LCD Size

Capacity

     Lift

Tilt

Pan

Rotation

VESA

up to 22"

up to 39 lbs
17.7 kg

25"
63 cm

25° 24° 90°  P/L

MIS-D







Product Information:

Part Number:

SV31-80211

Description:

StyleView PHD LCD Cart, 1 Drawer, Non-powered (white/grey)

Included:

  • Auto-locking drawer

  • Cassette insert with 6 compartments

  • LCD Pivot

  • Worksurface

  • Secure CPU compartment

  • Ethernet ready-on function and four-port USB hub

  • Scanner holder bracket

  • Mouse holder

  • Wrist rest

  • Back-tilt keyboard tray

  • Left/right mouse tray

  • Rear handle

  • Storage basket

  • Cable storage

  • Four casters (two locking)

Total Maximum Load of Height Adjustment Assembly:

39 lbs (17.7 kg).

This is the sum of the following components: Capacity of LCD pivot = 6 - 16 lbs (2.7–7.3 kg); capacity of worksurface, keyboard tray and autolock drawer ≤ 10 lbs (4.5 kg); capacity of CPU compartment ≤ 13 lbs (5.9 kg). Note: Locking the height of the LCD pivot changes the weight capacity to ≤ 20 lbs (9.1 kg) - contact Ergotron for detail

Note:

If the combined LCD and CPU weight on a nonpowered cart is greater than 23 lbs (10.4 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)

LCD and Worksurface:

LCD and worksurface adjust 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63.5 cm)

Portrait Orientation:

Portrait orientation may be incompatible with > 19" widescreen LCDs

True Ergonomics:

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. Unlike competitive offerings, shorter users can work comfortably and productively in a seated position

  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Height adjustment and keyboard placement require just a touch

  • Independent LCD screen positioning -5" (13 cm) of lift with tilt and pan adjustment - for personalized viewing

  • Actual cart weight is just 79 lbs (36 kg), making system relocation easy. Four ultra-smooth gliding casters for extremely easy push/pull mobility, two locking casters ensure lock-in-place stability

Safe:

  • Surfaces are treated with Agion Antimicrobial for product protection; handles are smooth and continuous for improved clean ability

  • Auto-locking drawer securely stores PINs for up to 10 users

  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

  • Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety

  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control

  • One-piece worksurface with no seams, easy-to-clean design promotes infection control

  • Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty

  • Front-locking casters

  • Push-button Ethernet ready-on function on worksurface: Awaken enclosed computer from energy-saving hibernation mode with the touch of an external button- facilitates easy compliance with EnergyStar 4.0 guidelines

  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service:

  • Covered by Global Service Program - 24/7 coverage

All the Details Covered:

  • Rear basket keeps task-related items where they can be quickly accessed

  • Universal mounting slot for accessories and equipment

  • A unique cable management system conceals and organizes cords, making cleaning easy

  • Ships fully assembled and is easily accessible from container

  • Four amber LEDs provide light over keyboard tray or drawer; includes 15 minute auto shut-off

  • Easy access to components for field replacement and serviceability: Fan, keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time

  • Large drawer includes cassette insert to support up to 6 patients

  • TAA (Trade Agreements Act) compliant

  • Barcode scanner holder provides easy access to hand-held scanner

Compatibility and Dimensions:

  • Open-architecture design accommodates multiple configurations, closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades

  • Compact Wheel-to-Wheel Base Dimensions: 17" x 20.5" (43 x 52 cm)

  • Storage compartment for closed notebook, thin client or CPU up to 3.75" (9.5 cm) thick; larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)

  • Work surface Dimensions: 20.9"W x 16.4"D (53 x 42 cm)

  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Shipping Dimensions:

23" x 30" x 55" (58 x 76 x 140 cm)

Shipping Weight:

114 lbs (52 kg), actual cart weight = 79 lbs (36 kg)

Warranty:

Five (5) years









Benefits of Ergotron SV31-80211:

    1.  Auto-locking drawer: Simple and efficient non-controlled medication management at the point-

         of-care reduces opportunities for errors; security system stores PINs for up to 10 users.



    2.  Large drawer includes cassette insert with six storage compartments to support six patients



    3.  Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’

         touch and enables nurses to focus on their patients.



    4.  Truly ergonomic design accommodates the largest range of nurses and other caregivers;

         designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver

         wellness and productivity.



    5.  StyleView’s small footprint, with ultra-smooth gliding casters, travels across crowded carpeted

         or hard floors with ease and is perfect for space constrained areas.



    6.  Open-architecture design accommodates multiple configurations: closed laptops with monitor,

         CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades



    7.  Surfaces are treated with Agion Antimicrobial for product protection.



    8.  Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-

         free sit-to-stand height adjustment.







Literature (Please open the following documents for more technical information)

Description

File Type

Ergotron SV31-80211 StyleView PHD LCD Computer Cart - Dimensional Illustration

reader-14.jpg - pdf
