We are sorry but item below has been discontinued.

Peerless DS-VW660 Flat Video Wall Mount for 40" to 65" Displays

It is VERY important to contact customer service when someone wants to order to find out the part number that works with the TV they are using, as well as the correct number of Wall Plate Alignment Spacers that need to be ordered. The PLP adapter plates have to be purchased separately and will vary based on the screen that is being used.
Be the first to review this product
Product ID: 16584
Recommended Accessories
Our Price: $293.05
Shipping: $36.33 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Peerless DS-VW660 Flat Video Wall Mount for 40" to 65" Displays



General Information



Image of Warranty and Returns









Peerless DS-VW660 Flat Video Wall Mount for 40" to 65" Displays



Peerless DS-VW760 Flat Video Wall Mount for 40" to 65" Displays









Description of Peerless DS-VW660:

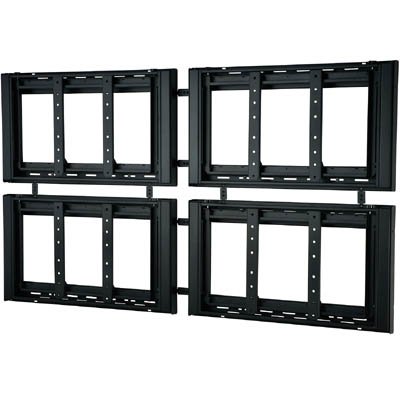

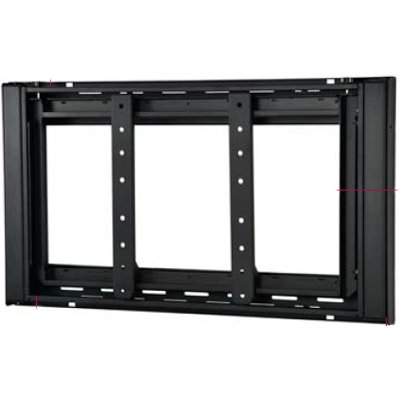

The Peerless DS-VW660 mount is the latest flat wall mounting solution for easily and quickly installing either small or large video wall configurations. In contrast to standard video wall installations, the DS-VW660 mount includes innovative features that simplify the full installation process, reducing gaps between display units and minimizing tedious calculations and guesswork. The DS-VW660 is engineered to support a wide variety of display configurations while ensuring each mount is positioned for the specific display being used, which reduces on-site measuring and guesswork by utilizing custom-fit wall plate alignment spacers. Display alignment is made easy with four points of tool-less adjustment on each DS-VW660 model-ensuring each display will be level in its environment.

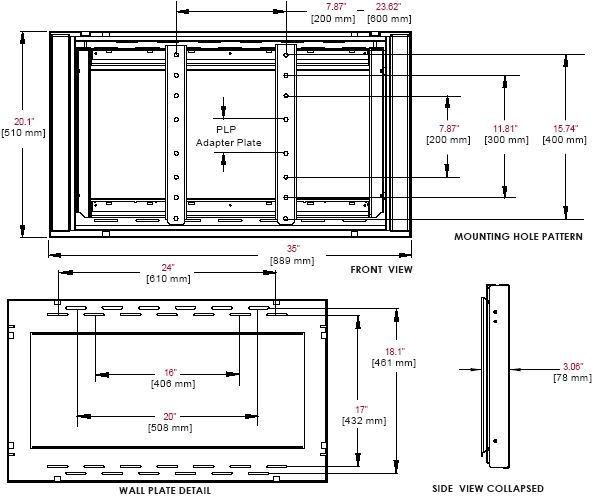

Technical Drawing for Peerless DS-VW660 Flat Video Wall Mount for 40" to 65' Displays



Technical Drawing for Peerless DS-VW660 Flat Video Wall Mount for 40" to 65' Displays

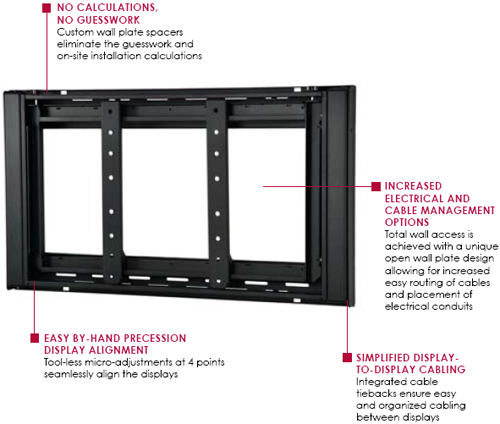

Features of Peerless DS VW660:

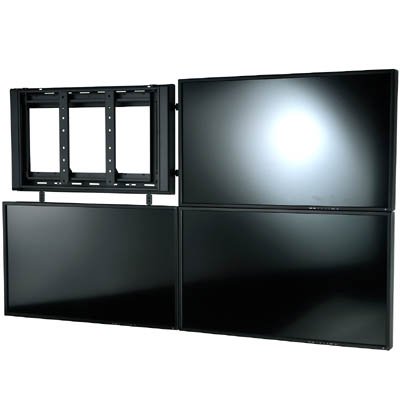

  • Modular mount for unlimited video wall display configurations.

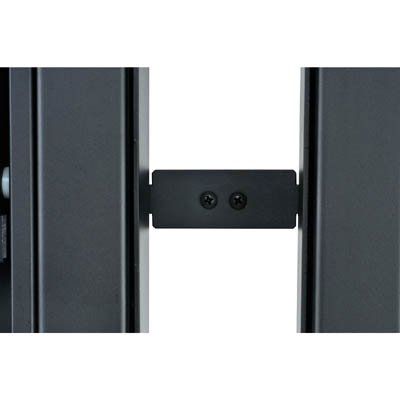

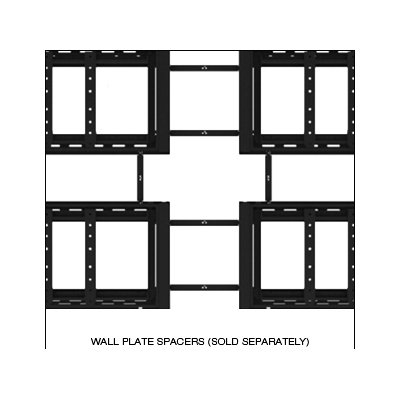

  • Custom wall plate spacers eliminate the guesswork and on-site installation calculations.

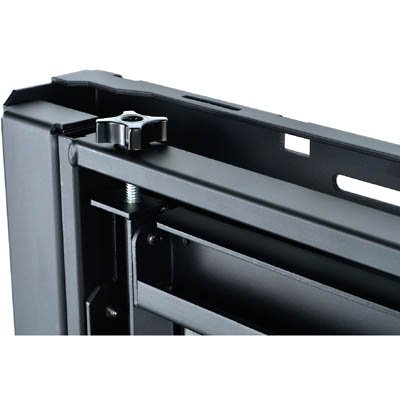

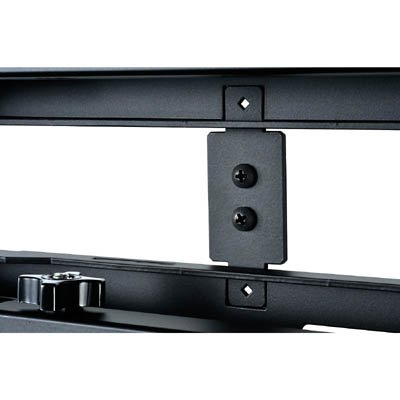

  • Tool-less micro-adjustments at 4 points seamlessly align the displays.

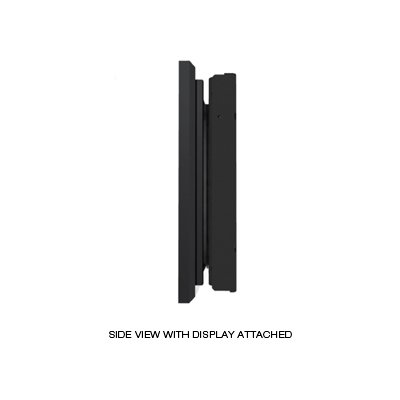

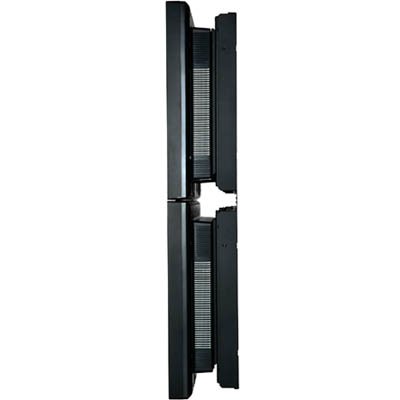

  • Displays and mounts sit flush against the wall for a clean profile.

  • Snug fit at the attachment point to the display’s mounting hole pattern ensures that each display hung in succession is aligned at the same point.

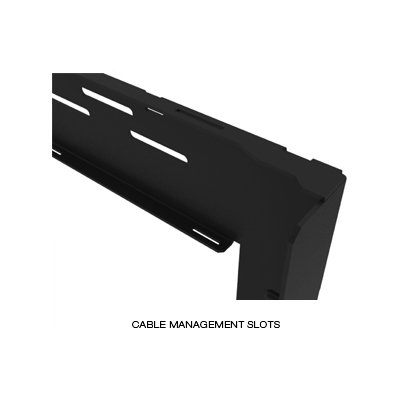

  • Integrated cable management tie-backs make display-to-display cabling simple.

  • Landscape display orientation.

  • Adjustable VESA mounting hole patterns in 100mm increments, starting at 200 x 200mm up to 600 x 400mm, additional patterns supported with adapter plates.

  • Includes hardware for installation to wood, concrete or cinder block.

  • Supports displays up to 200 lbs (90.9 kg).







Specifications of Peerless DS-VW660:



Dimensions (H x W x D):

35" x 20" x 3" (889 x 508 x 76.2 mm)

Product Weight:

36 lb (15.9 kg)

Load Capacity:

200 lb (90.9 kg)

Finish:

Scratch resistant fused epoxy

Available Color:

Black

Package Size (H x W x D):

38" x 24" x 5" (965.2" x 609.6 x 127 mm)

Package Ship Weight:

43 lb (19.5)

Package Contents:

  • Wall plate

  • Wall mount assembly

  • Mounting attachment rails

  • Security hardware

  • Fastener pack

Package UPC Code:

735029272052





Literature (Please open the following documents for more technical information)




Peerless DS-VW660 Flat Video Wall Mount for 40" to 65" Displays - Technical Data

- pdf

Peerless DS VW660 Flat Video Wall Mount for 40" to 65" Displays - Installation Manual

- pdf





Peerless Logo

Hyperlink of all peerless products

Model DS-VW660
Manufacturer Peerless Mounts
Part Number DS-VW660
