Chief K1D100 KONTOUR Dynamic Desk Clamp Mount for Single Monitor

Dynamic Height Adjustment: 13".
Be the first to review this product
Product ID: 16637
Recommended Accessories
List Price: $454.00
Our Price: $181.60
You Save: $272.40
Shipping: $0.00 *  - Free Ground Shipping
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Related Products:



Part Number

Description

K1D100B

Black KONTOUR Dynamic Height Adjustment Column Desk Clamp Mount for Single Monitor

K1D100S

Silver KONTOUR Dynamic Height Adjustment Column Desk Clamp Mount for Single Monitor




Chief K1D100B or K1D100S KONTOUR Dynamic Desk Clamp Mount for Single Monitor



Chief K1D100B or K1D100S KONTOUR Dynamic Desk Clamp Mount for Single Monitor







Features of Chief K1D100 Series:



  • Sleek, solidly-constructed forged aluminum arms.

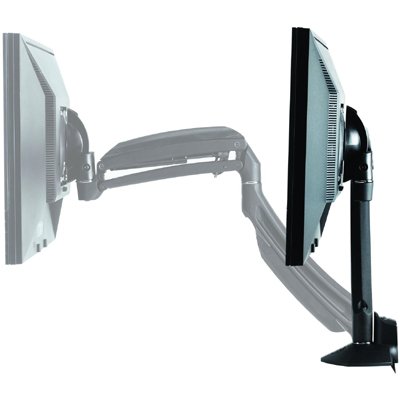

  • Dynamic height adjustment using gas-spring technology for ideal positioning.

  • Simple 3-step installation and integrated quick-release interface for easy mounting and maintenance.

  • Tool-free cable management covers for a clean, professional look.

  • Patented Centris Extreme Tilt for an ultimate ergonomic solution. Tilts -75 degrees/+10 degrees.

  • Easily clamps to edge of desk (grommet and bolt through accessory available, separately).

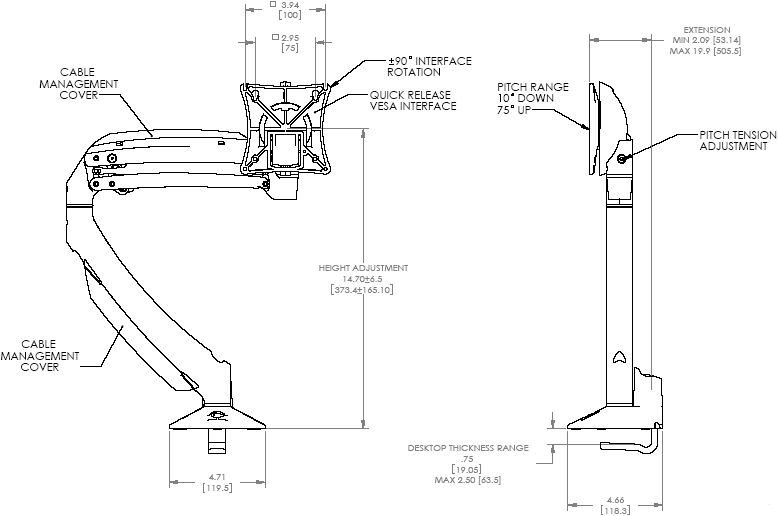

Technical Drawing of Chief K1D100S or K1D100B KONTOUR Dynamic Desk Clamp Mount for Single Monitor



Technical Drawing of Chief K1D100S or K1D100B KONTOUR Dynamic Desk Clamp Mount for Single Monitor







Description of Chief K1D-100:



Whether in the office, in healthcare facilities or at home, Kontour monitor arms create a more productive and comfortable workspace. Elegantly designed with a forged aluminum body, Kontour mounts will stand the test of time both functionally and aesthetically.







Specifications of Chief K1D 100:



Color:

Black, Silver

Desktop Thickness Range:

0.75 - 2.5" (19 - 64mm)

Dynamic Height Adjustment:

13

Maximum Extension:

19.9" (505.5mm)

Minimum Depth:

2.09" (53.1mm)

Mounting Pattern Compatibility (Universal Versions):

75 x 75mm ,100 x 100mm

Number of Monitor:

1

Orientation:

Landscape, Portrait

Overall Dimensions (H x W x D):

15.0" x 13.0" x 2.1" (381 x 330 x 54mm)

Post-Installation Leveling (Roll):

Yes

Solution Type:

Universal

Tilt:

+ 75° , - 10°

Typical Screen Sizes:

10 - 30"

Weight Capacity:

5 - 25 lbs (2.3 - 11.3kg)


Model K1D100B,K1D100S
Manufacturer Chief Mounts
Part Number K1D100B,K1D100S
Mounting Options Desk
Monitor Arm Types 1 Monitor
