We are sorry but item below has been discontinued. Above are some similar products we can offer instead.

Ergotron 24-258-026 WorkFit-A LCD & Laptop Sit-Stand Workstation

Be the first to review this product
Product ID: 16965
Recommended Accessories
Our Price: $399.00
Shipping: $60.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Description

Ergotron 24258026 is ideal for corner workstations, the WorkFit-A clamps to the rear or side of most surfaces and enables an effortless sit-and-stand work style. Fold the keyboard up and swing the arm out of the way when you need your desk surface.

Change from a sitting to a standing position whenever you want. This height-adjustable workstation moves your keyboard and display in one simple motion, making computing comfortable for prolonged periods.

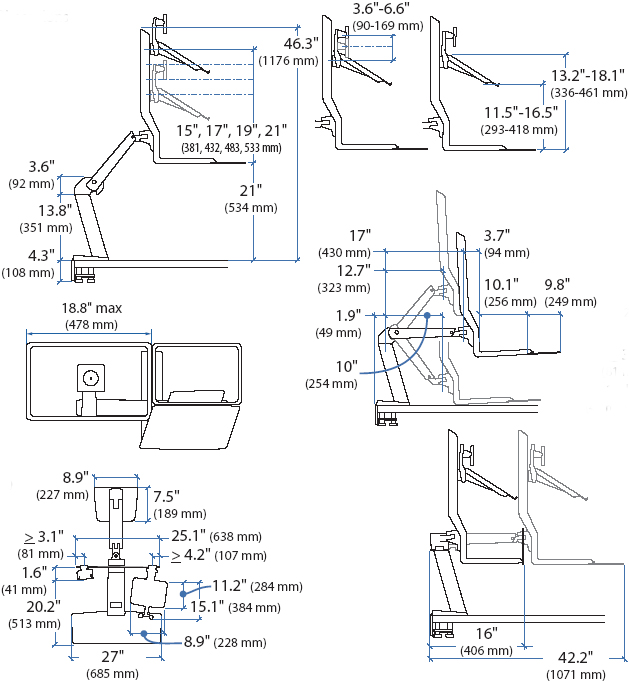

Technical Drawing

Technical drawing for Ergotron 24-258-026  LCD & Laptop Sit-Stand Workstation



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 20" 7-20 lbs

3.2-9.1 kg

20"

51 cm

30° 180° 360° P/L MIS-D



Product Information

Part Number:

24-258-026

Description:

WorkFit-A, LCD & Laptop Sit-Stand Workstation (polished aluminum/black)

Weight Capacity:

Maximum total load on height-adjustment assembly ≤ 25 lbs (11.3 kg). LCD = 6–16 lbs (2.7–7.3 kg), laptop ≤ 10 lbs (4.5 kg), LCD + laptop combined = 7–20 lbs (3.2–9.1 kg), keyboard tray accessories ≤ 2 lbs (.9 kg). For proper operation the total maximum weight when added together should not exceed 25 lbs (11.3 kg). The minimum total weight should not be less than 8 lbs (3.6 kg)

Desk Thickness:

Desk Clamp attaches to surface edge 0.78" to 2.7" (20 to 70 mm) thick.

Arm Extend/ Retract Range:

Arm fully extends up to 42" (1066 mm) from wall and pushes back to 18 1/4" (464 mm) when fully retracted.

Cable Management:

  • Integrated cable management hides wires.
  • Cable management clips on the under side of the mount arm routes and hides wires.

Constant Force Technology:

Patented Constant Force (CF) lift-and-pivot motion technology

Mounting Standards:

VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm)

Hardware Kit:

Includes complete hardware kit

Note:

  • Computer systems mounted on a WorkFit-A may require extra long power and video cables in order to span between standing and sitting heights.
  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment.

Shipping Dimensions:

37" x 21" x 11.5" (940 x 533 x 292 mm)

Shipping Weight:

50.5 lbs (23 kg)

Warranty:

Five (5) years



Benefits

For Computer Users

  • On-demand sit-stand workstation - improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. Standing a little more each day burns extra calories, tones muscles, improves posture, increases blood flow and ramps up metabolism.
  • Safe, easy-to-use - simple installation and effortless operation.
  • Easily and simultaneously lift keyboard and screens to proper height for unsurpassed ergonomic comfort.
  • Double your view and move it too! With two monitors you can save time by using multiple applications at once - eliminate toggling back and forth between documents and programs.
  • Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard and monitor positions for personalized computing.
  • Fold keyboard up and swing arm and displays out of the way when you need your desk surface.

For IT and Facilities Staff

  • Flexible, open-architecture design is scalable for future computer equipment.
  • Modify existing office spaces or cubes by simply clamping a WorkFit on an existing worksurface, without the cost of expensive professional installers.
  • Safe and neat routing of cables.
  • For HR/Risk Management and Company Cost Savings.

Manage the cost of healthcare premiums by promoting wellness in the daily work routine

  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs.
  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases.
  • Standing supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees.
  • Studies in office ergonomics show productivity increases of 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture.



Literature (Please open the following documents for more technical information)

Product Sheet - Ergotron 24-258-026 LCD & Laptop Workstation

 - pdf

Installation Manual - Ergotron 24258026 WorkFit-A Sit-Stand Workstation

 - pdf

Dimensional Illustrations - WorkFit-A Notebook & LCD Sit-Stand Desk Mount

 - pdf

WorkFit Flyer - LED Monitor & Notebbok Height Adjustable Workstation

 - pdf





Ergotron Logo

Hyperlink of all Ergotron products

Model 24-258-026
Manufacturer Ergotron
Part Number 24-258-026
Monitor Size Up to 20"
Weight Capacity Maxi total load on adjustment assembly ≤25 lb. LCD=6–16 lb, laptop ≤10 lb, LCD+laptop combined=7–20 lb, keyboard tray ≤2 lb. For proper operation the total maxi wt when added together should not exceed 25 lb. The mini total wt should not be less than 8 lb
Lift (51 cm) 20 in
Tilt 30 degree
Pan 180 degree
Rotation (P/L) 360 degree
Shipping Dimensions 37" x 21" x 11.5" (940 x 533 x 292 mm)
Shipping Weight 50.5 lbs (23 kg)
Warranty Five (5) years
Color Polished aluminum/Black
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Extend/Retract Range Arm fully extends up to 42" (1066 mm) from wall and pushes back to 18 1/4" (464 mm) when fully retracted
Desktop Thickness Range Desk Clamp attaches to surface edge 0.78" to 2.7" (20 to 70 mm) thick
Mounting Options Desk Mounts
