We are sorry but item below has been discontinued.

Ergotron SV31-6110-0 StyleView PHD Healthcare Laptop Cart with 1 Drawer, Non-powered

Previously sold as SV31-80111.
Be the first to review this product
Product ID: 17063
Recommended Accessories
List Price: $1,799.00
Our Price: $1,773.65
You Save: $25.35
Shipping: $119.95 * Oversized box 110 pounds. Shipping cost subject to change based on destination
Usually ships in 2 to 3 business days
* applies to Contiguous United States





Description

Patient Healthcare Delivery (PHD): Auto-locking drawer enables simple and efficient non-controlled medication management at the point-of-care. Ergotron SV31-6110-0 innovative, truly ergonomic and easy-to-maneuver laptop healthcare cart features sit-to-stand height adjustment and an adjustable back-tilt keyboard tray.

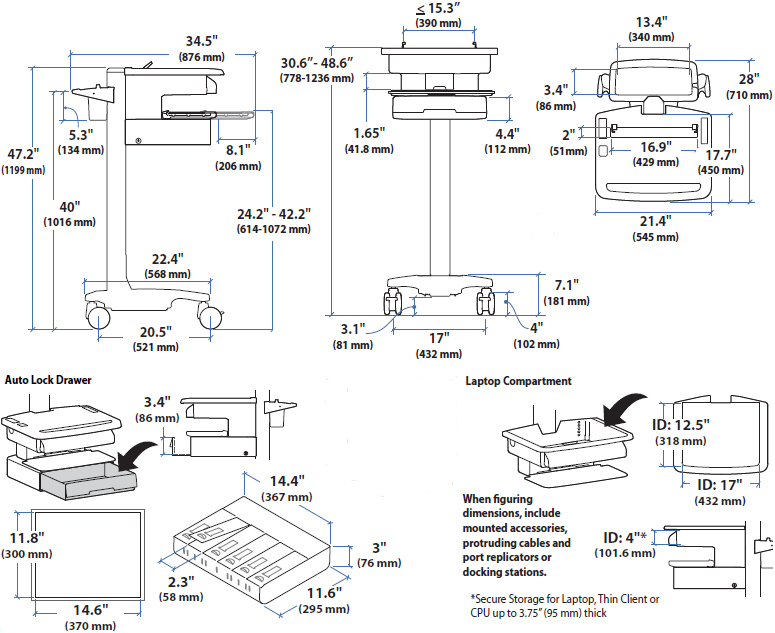

Technical Drawing

Technical Drawing of Ergotron SV31-6110-0 StyleView PHD Laptop Cart with 1 Drawer, non-powered



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 17" Up to 23 lbs

10.4 kg

20"

51 cm

- - - -



Product Information

Part Number:

SV31-6110-0

Description:

StyleView PHD Laptop Cart, 1 Drawer, Non-powered (white/grey)

Includes:

  • Auto-locking drawer
  • Cassette insert with 6 compartments
  • Worksurface
  • Secure laptop compartment
  • Four-port USB hub
  • Scanner holder bracket
  • Mouse holder
  • Wrist rest
  • Back-tilt keyboard tray
  • Left/right mouse tray
  • Front and rear handle
  • Storage basket
  • Cable storage
  • Four casters (two locking)

Laptop Holder Internal Dimensions:

17"W x 12.5"D x 3.75"H (43 x 32 x 9.5 cm); screen-slot opening in worksurface = 16.1"W (40.9 cm)

Weight Capacity:

Total maximum load of height-adjustment assembly = 23 lbs (10.4 kg). This is the sum of the following components: Capacity of worksurface, keyboard tray and autolock drawer ≤ 10 lbs (4.5 kg); capacity of CPU compartment ≤ 13 lbs (5.9 kg).

Laptop and Worksurface:

Adjust 20" (51 cm) in tandem

True Ergonomics:

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity.
  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position.
  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Height adjustment and keyboard placement require just a touch.
  • Actual cart weight is just 75 lbs (34 kg), making system relocation easy. Four ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability.

Safe:

  • Surfaces are treated with Agion Antimicrobial for product protection; handles are smooth and continuous for improved clean ability.
  • Auto-locking drawer securely stores PINs for up to 10 users.
  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant.
  • Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety.
  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control.
  • One-piece worksurface with no seams; easy-to-clean design promotes infection control.
  • Lockable, ventilated enclosed storage for notebook. Keys and locks are heavy-duty.
  • Front-locking casters.
  • Push-button Ethernet ready-on function on worksurface: Awaken enclosed computer from energy-saving hibernation mode with the touch of an external button - facilitates easy compliance with EnergyStar 4.0 guidelines.
  • Designed to meet guidelines established by the American National Standards Institute for computer use.

Service:

  • Covered by Global Service Program - 24/7 coverage.
All the Details Covered:
  • Rear basket keeps task-related items where they can be quickly accessed.
  • Universal mounting slot for accessories and equipment.
  • A unique cable management system conceals and organizes cords, making cleaning easy.
  • Ships fully assembled and is easily accessible from container.
  • Four amber LEDs provide light over keyboard tray or drawer; includes 15 minute auto shut-off.
  • Easy access to components for field replacement and serviceability: Fan, keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time.
  • Large drawer includes cassette insert to support up to 6 patients.
  • TAA (Trade Agreements Act) compliant.
  • Laptop screen holders: Prevents the laptop screen from vibrating for less damage to hinges over time.
  • Barcode scanner holder provides easy access to hand-held scanner.

Compatibility and Dimensions:

  • Open-architecture design accommodates, most laptops - even widescreen - and future hardware deployments and upgrades
  • Laptop holder internal dimensions: 17"W x 12.5"D x 3.75"H (43 x 32 x 9.5 cm); screen-slot opening in worksurface = 16.1"W (40.9 cm)
  • Compact Wheel-to-Wheel Base Dimensions: 17" x 20.5" (43 x 52 cm)
  • Worksurface Dimensions: 20.9"W x 16.4"D (53 x 42 cm)

Shipping Dimensions:

23" x 30" x 55" (58 x 76 x 140 cm)

Shipping Weight:

110 lbs (50 kg); actual cart weight = 75 lbs (34 kg)

Warranty:

Five (5) years



Benefits

  • Auto-locking drawer: Simple and efficient non-controlled medication management at the point-of-care reduces opportunities for errors; security system stores PINs for up to 10 users.
  • Large drawer includes cassette insert with six storage compartments to support six patients.
  • Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients.
  • Truly ergonomic design accommodates the largest range of caregivers; Designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness.
  • Surfaces are treated with Agion Antimicrobial for product protection.
  • StyleView’s small footprint, with ultra-smooth gliding casters, travels across crowded carpeted or hard floors with ease - perfect for space constrained areas.
  • Open-architecture design accommodates most laptops - even widescreen - easing future hardware deployments and upgrades.
  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment.



Literature (Please open the following documents for more technical information)

Product Sheet - Ergotron SV31-6110-0 StyleView Patient Healthcare Delivery Laptop Cart

 - pdf

Dimensional Illustrations - Ergotron SV3161100 PHD Notebook Cart, 1 Drawer, Non-powered

 - pdf

StyleView Accessories

 - pdf



Model SV31-6110-0
Manufacturer Ergotron
Part Number SV31-6110-0
Color White/Grey
Screen Size Up to 17 in
Weight Capacity 23 lbs (10.4 kg). This is the sum of the following components: Capacity of worksurface, keyboard tray and autolock drawer ≤ 10 lbs (4.5 kg); capacity of CPU compartment ≤ 13 lbs (5.9 kg).
Lift (51 cm) 20 in
Compact Wheel to Wheel Base Dimensions 17" x 20.5" (43 x 52 cm)
Worksurface Dimensions 20.9"W x 16.4"D (53 x 42 cm)
Laptop Holder Internal Dimensions 17"W x 12.5"D x 3.75"H (43 x 32 x 9.5 cm); screen-slot opening in worksurface = 16.1"W (40.9 cm)
Shipping Dimensions 23" x 30" x 55" (58 x 76 x 140 cm)
Shipping Weight 110 lbs (50 kg); actual cart weight = 75 lbs (34 kg)
Warranty Five (5) years
