We are sorry but item below has been discontinued.

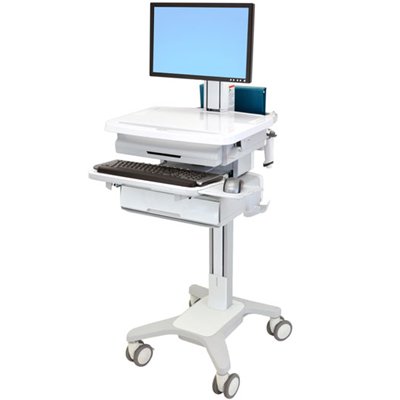

Ergotron SV31-6310-0 StyleView PHD Healthcare LCD Cart with 1 Drawer, Non-powered

Previously sold as SV31-80211.
Be the first to review this product
Product ID: 17064
Recommended Accessories
List Price: $1,849.00
Our Price: $1,823.10
You Save: $25.90
Shipping: $123.95 * Oversized box 114 pounds. Shipping cost subject to change based on destination
Usually ships in 2 to 3 business days
* applies to Contiguous United States





Description

Patient Healthcare Delivery (PHD): Auto-locking drawer enables simple and efficient non-controlled medication management at the point-of-care. Ergotron SV31-6310-0 innovative, truly ergonomic and easy-to-maneuver LCD healthcare cart features sit-to-stand height adjustment, independent screen positioning and an adjustable back-tilt keyboard tray.

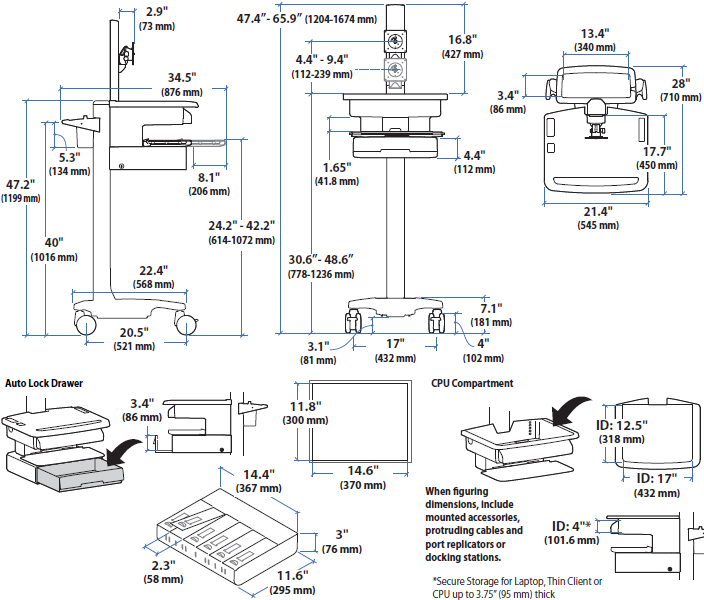

Technical Drawing

Technical Drawing of Ergotron SV31-6310-0 StyleView PHD LCD Cart with 1 Drawer, non-powered



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 22" Up to 39 lbs

17.7 kg

25"

63 cm

25° 24° 90° P/L MIS-D



Product Information

Part Number:

SV31-6310-0

Description:

StyleView PHD LCD Cart, 1 Drawer, Non-powered (white/grey)

Includes:

  • Auto-locking drawer
  • Cassette insert with 6 compartments
  • LCD pivot
  • Worksurface
  • Secure CPU compartment
  • Four-port USB hub
  • Scanner holder bracket
  • Mouse holder
  • Wrist rest
  • Back-tilt keyboard tray
  • Left/right mouse tray
  • Rear handle
  • Storage basket
  • Cable storage
  • Four casters (two locking)

Weight Capacity:

Total maximum load of height-adjustment assembly = 39 lbs (17.7 kg). This is the sum of the following components: Capacity of LCD pivot = 6–16 lbs (2.7–7.3 kg); capacity of worksurface, keyboard tray and autolock drawer ≤ 10 lbs (4.5 kg); capacity of CPU compartment ≤ 13 lbs (5.9 kg). Note: Locking the height of the LCD pivot changes the weight capacity to ≤ 20 lbs (9.1 kg) - contact Ergotron for details.

Note:

If the combined LCD and CPU weight on a nonpowered cart is greater than 23 lbs (10.4 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)

LCD and Worksurface:

Adjust 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63.5 cm)

Portrait Orientation:

May be incompatible with > 19" widescreen LCDs

True Ergonomics:

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity.
  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position.
  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Height adjustment, keyboard placement, LCD tilt and pan all require just a touch.
  • Independent LCD screen positioning - 5" (13 cm) of lift with tilt and pan adjustment - for personalized viewing.
  • Actual cart weight is just 79 lbs (36 kg), making system relocation easy. Four ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability.

Safe:

  • Surfaces are treated with Agion Antimicrobial for product protection; handles are smooth and continuous for improved clean ability.
  • Auto-locking drawer securely stores PINs for up to 10 users.
  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant.
  • Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety.
  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control.
  • One-piece worksurface with no seams; easy-to-clean design promotes infection control.
  • Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty.
  • Front-locking casters.
  • Designed to meet guidelines established by the American National Standards Institute for computer use.

Service:

  • Covered by Global Service Program - 24/7 coverage.
All the Details Covered:
  • Rear basket keeps task-related items where they can be quickly accessed.
  • Universal mounting slot for accessories and equipment.
  • Four-port USB hub
  • A unique cable management system conceals and organizes cords, making cleaning easy.
  • Ships fully assembled and is easily accessible from container.
  • Four amber LEDs provide light over keyboard tray or drawer; includes 15 minute auto shut-off.
  • Easy access to components for field replacement and serviceability: Fan, keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time.
  • Large drawer includes cassette insert to support up to 6 patients.
  • TAA (Trade Agreements Act) compliant.
  • Barcode scanner holder provides easy access to hand-held scanner.

Compatibility and Dimensions:

  • Open-architecture design accommodates multiple configurations, closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
  • Compact Wheel-to-Wheel Base Dimensions: 17" x 20.5" (43 x 52 cm)
  • Storage compartment for closed notebook, thin client or CPU up to 3.75" (9.5 cm) thick; larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)
  • Worksurface Dimensions: 20.9"W x 16.4"D (53 x 42 cm)
  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Shipping Dimensions:

23" x 30" x 55" (58 x 76 x 140 cm)

Shipping Weight:

114 lbs (52 kg); actual cart weight = 79 lbs (36 kg)

Warranty:

Five (5) years



Benefits

  • Auto-locking drawer: Simple and efficient non-controlled medication management at the point-of-care reduces opportunities for errors; security system stores PINs for up to 10 users.
  • Large drawer includes cassette insert with six storage compartments to support six patients.
  • Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients.
  • Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity.
  • StyleView’s small footprint, with ultra-smooth gliding casters, travels across crowded carpeted or hard floors with ease and is perfect for space constrained areas.
  • Open-architecture design accommodates multiple configurations: closed laptops with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades.
  • Surfaces are treated with antimicrobial for product protection.
  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment.



Literature (Please open the following documents for more technical information)

Product Sheet - Ergotron SV31-6310-0 StyleView Patient Healthcare Delivery LCD Monitor Cart

 - pdf

Dimensional Illustrations - Ergotron SV3163100 PHD LED Display Cart, 1 Drawer, Non-powered

 - pdf

StyleView Accessories

 - pdf



Model SV31-6310-0
Manufacturer Ergotron
Part Number SV31-6310-0
Color White/Grey
Screen Size Up to 22 in
Weight Capacity 39 lbs (17.7 kg). This is the sum of the following components: Capacity of LCD pivot = 6–16 lbs (2.7–7.3 kg); capacity of worksurface, keyboard tray and autolock drawer ≤ 10 lbs (4.5 kg); capacity of CPU compartment ≤ 13 lbs (5.9 kg).
Lift (63 cm) 25 in
Tilt 25 degree
Pan 24 degree
Rotation (P/L) 90 degree
VESA VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Shipping Dimensions 23" x 30" x 55" (58 x 76 x 140 cm)
Shipping Weight 114 lbs (52 kg); actual cart weight = 79 lbs (36 kg)
Warranty Five (5) years
Compact Wheel to Wheel Base Dimensions 17" x 20.5" (43 x 52 cm)
Worksurface Dimensions 20.9"W x 16.4"D (53 x 42 cm)
