Peerless FPEPM 5 to 8 feet Indoor/Outdoor Tilting Pedestal Mount for Protective Enclosures up to 400 lbs

Be the first to review this product
Product ID: 17129
Options
List Price: $1,705.00
Our Price: $1,433.56
You Save: $271.44
Shipping: $159.95 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States
Add to Cart



Description

No wall? No ceiling? No problem! Peerless FPEPM Indoor/Outdoor Tilting Pedestal Mount provides an outstanding solution for placing screens where they truly stand out. Designed to work with Peerless Enclosures for combining optimal placement with maximum protection, these all-weather pedestal mounts perform exceptionally indoors or out. Engineered to withstand the harshest outdoor conditions, they are constructed from corrosion resistant materials, E-coat primer and come with stainless steel hardware. No detail was left out of this pedestal mount, it provides incremental tilt to set the perfect viewing angle and a simplified hook-and-hang set up. Whether it’s used indoors or outdoors, for entertainment or digital signage, it’s one pedestal mount that stands strong.

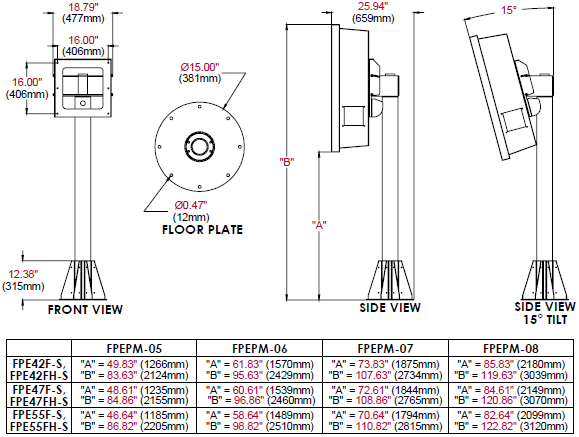

Technical Drawing

Technical Drawing for Peerless FPEPM 5 to 8 feet Indoor/Outdoor Tilting Pedestal Mount



Technical Specifications

Screen Size

40" to 55"

Weight Capacity

400 lbs (181 kg)

Pole Length

5 to 8 feet pole lengths for varied heights requirements

Tilt

0 - 15°

Finish

Outdoor gloss powder paint

Security Features

Security Hardware

Product Dimensions

  • FPEPM-05: 18.79" x 75.95" x 15" (477 x 1929 x 381mm)
  • FPEPM-06: 18.79" x 87.95" x 15" (477 x 2233 x 381mm)
  • FPEPM-07: 18.79" x 99.95" x 15" (477 x 2538 x 381mm)
  • FPEPM-08: 18.79" x 111.95" x 15" (477 x 2843 x 381mm)

Weight

  • FPEPM-05: 136lb (61kg)
  • FPEPM-06: 146lb (66kg)
  • FPEPM-07: 155lb (70kg)
  • FPEPM-08: 165lb (74kg)

Shipping Dimensions

  • FPEPM-05: Box 1: 24" x 20" x11", Box 2: 65" x 18" x 16"
  • FPEPM-06: Box 1: 24" x 20" x11", Box 2: 65" x 18" x 16"
  • FPEPM-07: Box 1: 24" x 20" x11", Box 2: 77" x 18" x 16"
  • FPEPM-08: Box 1: 24" x 20" x11", Box 2: 89" x 18" x 16"

Shipping Weight

  • FPEPM-05: 138lb (62kg)
  • FPEPM-06: 148lb (67kg)
  • FPEPM-07: 158lb (71kg)
  • FPEPM-05: 168lb (76kg)
UPC Code
  • FPEPM-05: 735029275022
  • FPEPM-06: 735029275039
  • FPEPM-07: 735029275046
  • FPEPM-08: 735029275053



Features

  • For indoor or outdoor use
  • Constructed from corrosion resistant materials, coated with a special e-coat
  • Comes with stainless steel hardware to endure the harshest environments
  • Incremental tilt settings from 0° to 15° to find the perfect viewing angle
  • Adjustable I-beam adapter supports installation to I-beams with flange width of 5.45" min and 12.45" max
  • Lock-in-place swivel makes it easy to set the perfect viewing angle without having to adjust the pedestal base



Literature (Please open the following documents for more technical information)

Product Sheet - Peerless FPEPM Indoor/Outdoor Tilting Pedestal Mount

 - pdf

Installation Instructions - Peerless FPEPM Indoor or Outdoor Tilting Pedestal Mount

 - pdf



Model FPEPM-05, FPEPM-06, FPEPM-07, FPEPM-08
Manufacturer Peerless Mounts
Part Number FPEPM-05, FPEPM-06, FPEPM-07, FPEPM-08
Color Stone Gray
Dimensions (W x H x D) FPEPM-05: 18.79" x 75.95" x 15" (477 x 1929 x 381mm). FPEPM-06: 18.79" x 87.95" x 15" (477 x 2233 x 381mm). FPEPM-07: 18.79" x 99.95" x 15" (477 x 2538 x 381mm). FPEPM-08: 18.79" x 111.95" x 15" (477 x 2843 x 381mm)
Weight FPEPM-05: 136lb (61kg). FPEPM-06: 146lb (66kg). FPEPM-07: 155lb (70kg). FPEPM-08: 165lb (74kg).
Weight Capacity 400lb (181kg)
Shipping Dimensions FPEPM-05: Box 1: 24" x 20" x11", Box 2: 65" x 18" x 16". FPEPM-06: Box 1: 24" x 20" x11", Box 2: 65" x 18" x 16". FPEPM-07: Box 1: 24" x 20" x11", Box 2: 77" x 18" x 16". FPEPM-08: Box 1: 24" x 20" x11", Box 2: 89" x 18" x 16".
Shipping Weight FPEPM-05: 138lb (62kg). FPEPM-06: 148lb (67kg). FPEPM-07: 158lb (71kg). FPEPM-05: 168lb (76kg).
Tilt 0 - 15 degree
Pole Length 5 to 8 feet pole lengths for varied heights requirements
Monitor Size 40" to 55"
Warranty Limited 5-year on mount. Limited 1 Year Warranty on corrosion
Mounting Options Floor Stand
