Peerless SF680-AB or SF680-AW Antimicrobial Flat Wall Mount for 61" to 102" LCD Displays up to 350 lbs

Be the first to review this product
Product ID: 17163
Recommended Accessories
List Price: $312.50
Our Price: $182.99
You Save: $129.51
Shipping: $16.95 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States
Add to Cart



Description

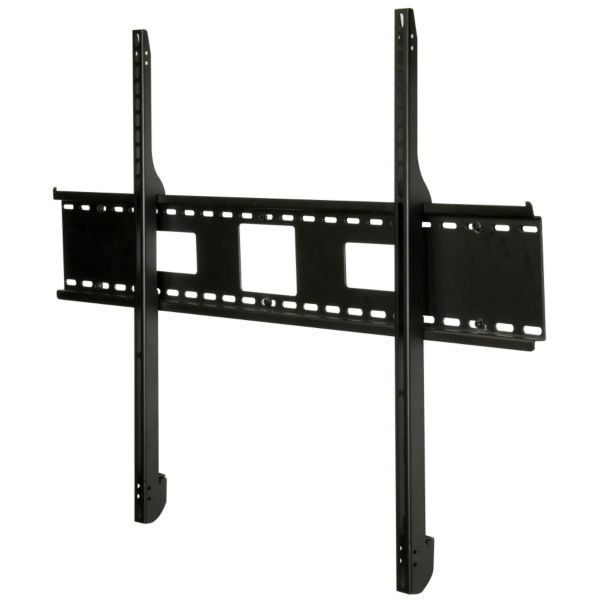

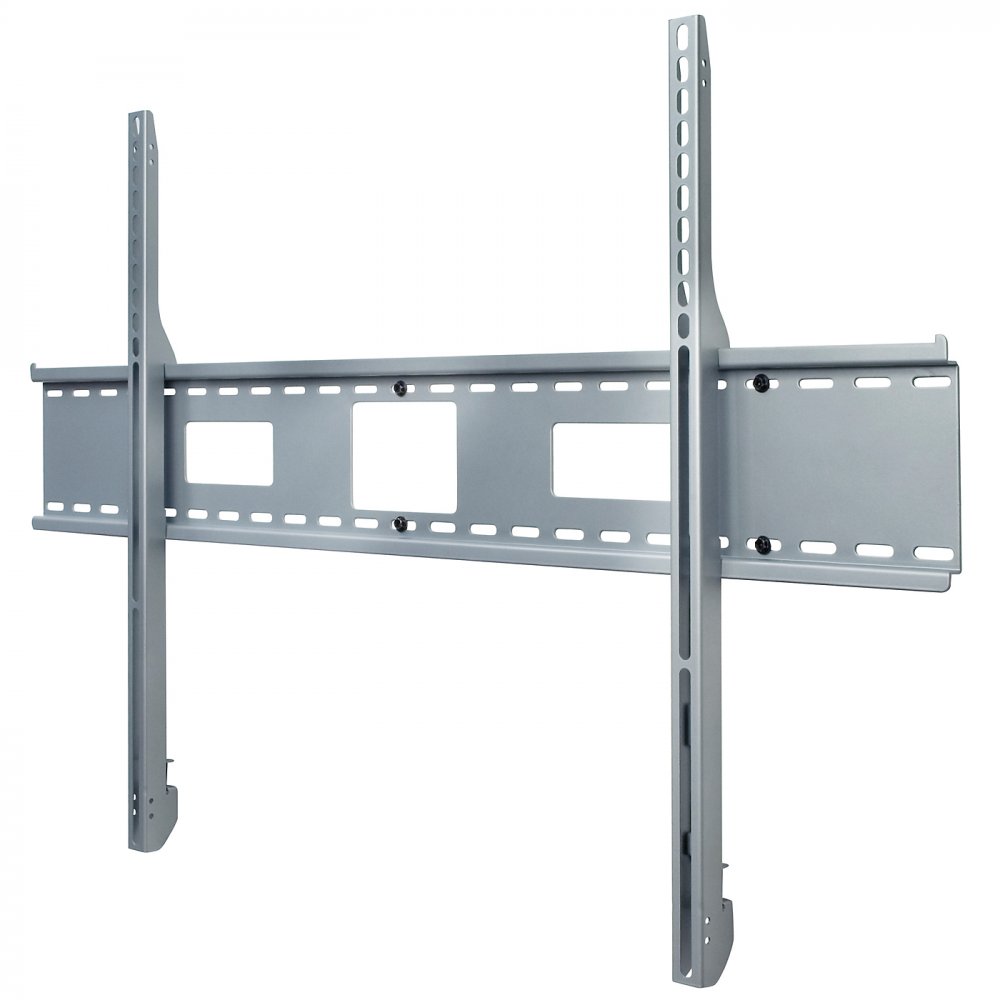

Peerless SF680-AB or SF680-AW sturdy wall plate holds screens weighing up to 350 lb while featuring junction box access ports and horizontal screen adjustment up to 8" for ideal screen positioning. Its easy-glide brackets enable quick screen-to-mount attachment with its simple hook-on design. Delivering an ultra-slim profile, this mount is the ultimate in low-profile solutions for 61" to 102" flat panel screens



Technical Drawing

Technical Drawing for Peerless SF680-A Antimicrobial Flat Wall Mount



Technical Specifications

Color

Black, White

Screen Size

61" to 102"

Weight Capacity

350 lb (158 kg)

Distance From Wall

1.83"

Mounting Pattern

Up to 43.75" W x 29.31" H (1111 x 745 mm)

Product Dimensions

45.75" x 30.25" x 1.75" (1162 x 768 x 44 mm)

Weight

14.3 lb (6.5 kg)

Shipping Dimensions

L= 46.75" (1187 mm), W= 8.63" (219 mm), H= 3.88" (99 mm)

Shipping Weight

16.5 lb (7.48 kg)

Mounting Surfaces

Wood stud, concrete, cinder block and metal stud (Metal stud accessory required)



Features

  • Fits screens with mounting hole patterns up to 43.75" W and 29.31" H
  • Ultra-slim design holds screen only 1.83" from the wall for a clean application
  • Easy-glide bracket design ensures screen is securely attached to wall plate
  • Horizontal screen adjustment up to 8"
  • Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
  • Includes Peerless’ Sorted-For-You fastener pack with all necessary mounting and screen attachment hardware
  • UL listed
  • Treated with Agion brand antimicrobial to inhibit the growth of bacteria, mold and fungus on the surface of products



Literature (Please open the following documents for more technical information)

Catalog Page - Peerless SF680 Universal Flat Wall Mount

 - pdf

Technical Data - Peerless SF-680 Flat Wall Mount (61"-102")

 - pdf

Installation Instructions - Peerless SF680-AB or SF680-AW Antimicrobial Flat Wall Mount

 - pdf



Product Options/Accessories

Peerless ACC215 Metal Stud Fastener Kit ACC-215 ACC215 Metal Stud Fastener Kit $8.95
Model SF680-AB, SF680-AW
Manufacturer Peerless Mounts
Part Number SF680-AB, SF680-AW
Color Black, White
Mounting Pattern Up to 43.75" W x 29.31" H (1111 x 745 mm)
Distance From Wall 1.83"
Weight Capacity 350 lb (158 kg)
Dimensions (W x H x D) 45.75" x 30.25" x 1.75" (1162 x 768 x 44 mm)
Mounting Surfaces Wood stud, concrete, cinder block and metal stud (Metal stud accessory required)
Shipping Weight 16.5 lb (7.48 kg)
Weight 14.3 lb (6.5 kg)
Shipping Dimensions L= 46.75" (1187 mm), W= 8.63" (219 mm), H= 3.88" (99 mm)
Monitor Size 61" to 102"
