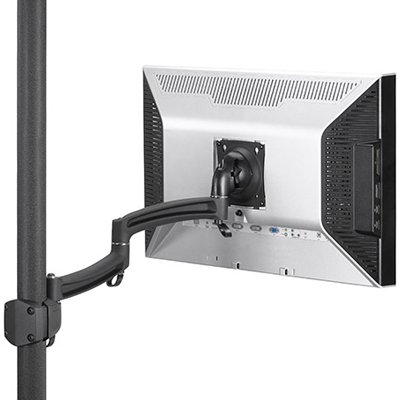

Chief K2P100 KONTOUR Dual Arm Pole Mount, Single Monitor

Pole Diameter Range: 1.5" - 1.9" (38 - 48mm)
Be the first to review this product
Product ID: 17180
Recommended Accessories
List Price: $382.00
Our Price: $152.80
You Save: $229.20
Shipping: $0.00 *  - Free Ground Shipping
Usually ships in 1 to 2 business days
* applies to Contiguous United States



Related Products:



Part Number          Description



K2P100B               Black KONTOUR Dual Arm Pole Mount for Single Monitor (10-30") up to 40 lbs

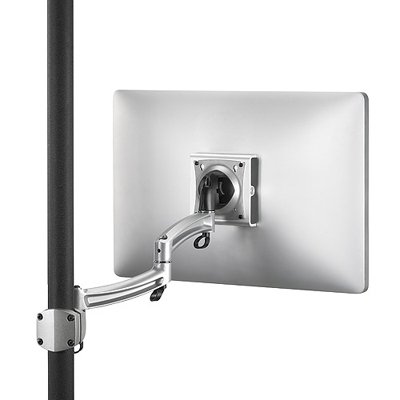

K2P100S               Silver KONTOUR Dual Pole Mount Arm for Single Monitor (10-30") up to 40 lbs



Chief K2P-100B or K2P-100S Kontour Dual Arm Pole Mount for Single Monitor

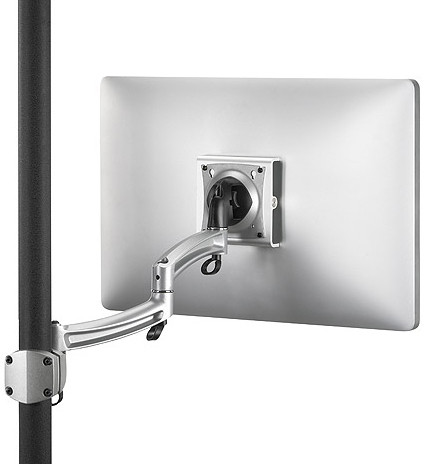

Chief K2P100B or K2P100S KONTOUR Dual Arm Pole Mount for Single Monitor (10-30") up to 40 lbs



Features of Chief K2P 100B or K2P 100S:



  • Easy installation on pre-existing poles with 1.5 - 1.9" (38 - 48 mm) outer diameters
  • Sleek, solidly-constructed forged aluminum arms.
  • Teardrop hole pattern makes mounting the screens quick and easy
  • Tool-free cable management loops for a clean, professional look.
  • Patented Centris Turn-Tite Tilt. Tilts -15/+15 for a flexible ergonomic solution.

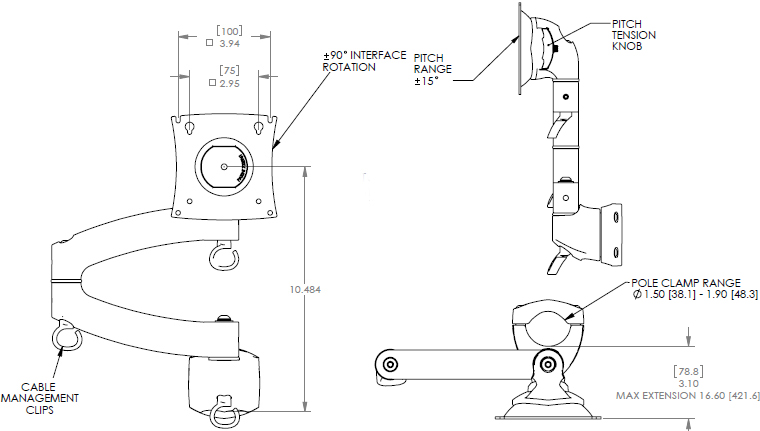

Technical Drawing of Chief K2P100 Series Kontour Dual Arm Pole Mount



Technical Drawing of Chief KRA204 Series KONTOUR Bolt Down Grommet Plate and Hardware



Description of Chief K2P 100 Series:



Whether in the office, in healthcare facilities or at home, Kontour monitor arms create a more productive and comfortable workspace. Elegantly designed with a forged aluminum body, Kontour mounts will stand the test of time both functionally and aesthetically.



Specification of Chief K2P-100 Series:



Color:

Black, Silver

Maximum Extension:

16.6" (421.6mm)

Minimum Depth:

3.1" (78.7mm)

Mounting Pattern Compatibility (Universal Versions):

75 x 75 mm, 100 x 100 mm

Orientation:

Landscape, Portrait

Overall Dimensions (H x W x D):

13.0" x 10.0" x 4.5" (330 x 254 x 114mm)

Pole Diameter Range:

1.5 - 1.9" (38 - 48mm)

Post-Installation Leveling (Roll):

Yes

Solution Type:

Universal

Tilt:

+15°,-15°

Typical Screen Sizes:

10-30"

Weight Capacity:

40 lbs (18.1kg)

Model K2P100B, K2P100S
Manufacturer Chief Mounts
Part Number K2P100B, K2P100S
Color Black, Silver
Maximum Extension 16.6" (421.6mm)
Minimum Depth 3.1" (78.7mm)
Mounting Pattern 75 x 75mm, 100 x 100mm
Overall Dimensions (H x W x D) 13.0" x 10.0" x 4.5" (330 x 254 x 114mm)
Pole Diameter 1.5 - 1.9" (38 - 48mm)
Tilt +15, -15 degree
Screen Size 10 - 30 in
Weight Capacity 40 lbs (18.1kg)
Shipping Weight 5.40 lbs
