We are sorry but item below has been discontinued.

WorkRite Sierra HXL Electric P Peninsula 3 Legs Workcenter

Lead times: Classic laminates: 10 working days for 20 or less. Designer laminates: 20 working days for 10 or less. Silhouette: 10 working days for 10 or less. Colors and patterns for Laminates, Edges and Base Frames are representative only. Actual colors and patterns may vary slightly.
Be the first to review this product
Product ID: 17429
Recommended Accessories
List Price: $3,156.00
Our Price: $1,893.60
You Save: $1262.40
Shipping: $0.00 *  - See delivery options below
Usually ships in 3 to 5 business days
* applies to Contiguous United States

Description

Outfitting your office with sit-to-stand workcenters is now within reach. Recent research has documented the dramatic positive health benefits of alternating between standing and seated positions throughout the workday. Sierra HXL is Workrite's answer to companies who are seeking an entry level sit to stand workcenter that can provide your employees with the ability to reduce stress, improve blood flow and alertness and maximize personal comfort.

Moving to a more comfortable position is just a fingertip adjustment away. The HXL motor quickly and quietly repositions the worksurface to just the right height. All your tools move with you as the HXL can support up to 225 lbs of material on the worksurface. The HXL features a sturdy open frame design with no visible crossbar so you have the maximum open space below desk for your ped, processor or personal property.

For an even more stylish configuration, top off your workcenter with a Silhouette top. Whisper thin yet sturdy as a redwood, Silhouette worksurfaces are available in 8 colors and 3 edge trim options.



Specifications

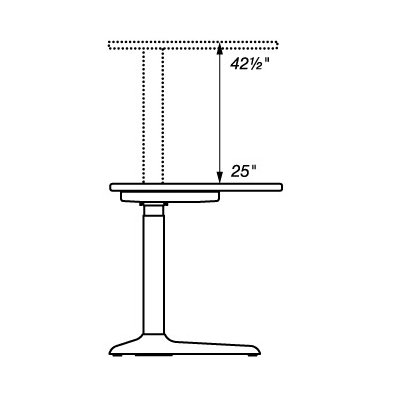

Height Range, Base and Leg Dimensions

Sierra HXL Electric Specifications of Height range, base and leg dimensions



Features

  • Hidden crossbar for greater knee clearance and under desk storage

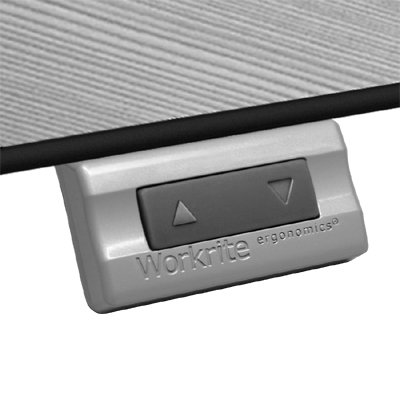

  • Up/down control located under front of worksurface

  • Adjusts 25"- 42½" at 1.6" per second

  • Load capacity on worksurface: two leg workcenter 225 lbs; three leg workcenter 300 lbs.

  • Available in 24 worksurface styles in over 60 laminate options

  • Available in Sierra silver or charcoal finish

  • Base only or full workcenter

  • Compatible with full line of tool bar and rail system accessories


Environmental Considerations

  • LEED Credit Eligibility

  • Material & Resources Credit 4.1–4.2 (1-2 points)

  • LEED Base Only: 26-28%

  • LEED with laminate: 31-37%

  • LEED with Silhouette: 13-18%

  • Innovation in Design Credit 1.1-1.4 (1-4 points)

  • Standby power use is only 0.1W

  • GREENGUARD Silhouette top material

  • VOC free powdercoat





Option 1 and 2: Desk Top Position and Surface Dimensions

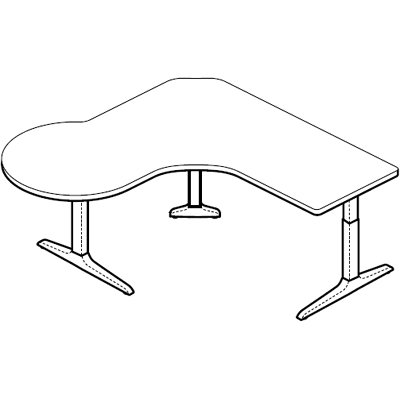

P Peninsula Left (Round P section is on the Left side, in the back)

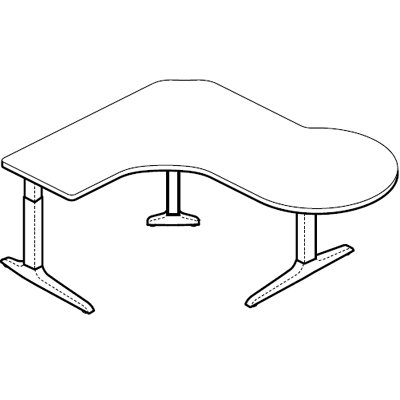

P Peninsula Right (Round P section is on the Right side, in the back)

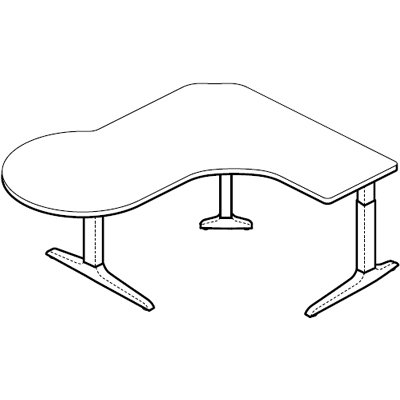

P Peninsula Workcenter Left

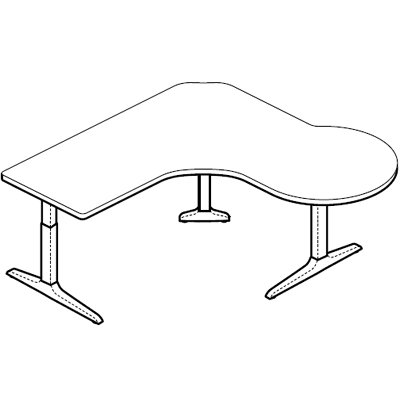

P Peninsula Workcenter Right

Model SEHXL72364824X: 72" x 36" x 48" x 24" Surface Dimension

Model SEHXL48247236X: 48" x 24" x 72" x 36" Surface Dimension

Model SEHXL72366024X: 72" x 36" x 60" x 24" Surface Dimension

Model SEHXL60247236X: 60" x 24" x 72" x 36" Surface Dimension

Model SEHXL72367224X: 72" x 36" x 72" x 24" Surface Dimension

Model SEHXL72247236X: 72" x 24" x 72" x 36" Surface Dimension

Model SEHXL72364830X: 72" x 36" x 48" x 30" Surface Dimension

Model SEHXL48307236X: 48" x 30" x 72" x 36" Surface Dimension

Model SEHXL72366030X: 72" x 36" x 60" x 30" Surface Dimension

Model SEHXL60307236X: 60" x 30" x 72" x 36" Surface Dimension

Model SEHXL72367230X: 72" x 36" x 72" x 30" Surface Dimension

Model SEHXL72307236X: 72" x 30" x 72" x 36" Surface Dimension



Option 3: Switch Position

Above, Front and Side Worksurface



Option 4: Base Frame Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Frame Base Color Silver

Sierra Silver (S)

Frame Base Color Charcoal

Charcoal (C)



Option 5: Laminate Top Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Laminate Designer White 0D35460

Designer White

0D35460

Laminate Black 0159560

Black

0159560

Fashion Gray 0D38160

Fashion Gray

0D38160

Laminate Titanium EV 0481060

Titanium EV

0481060

Laminate Silicon EV 0481160

Silicon EV

0481160

Laminate Nickel EV 0481360

Nickel EV

 0481360



Laminate Tungsten EV 0481460

Tungsten EV

0481460

Laminate Canyon Zephyr 0484260

Canyon Zephyr

0484260

Laminate Misted Zephyr 0484360

Misted Zephyr

0484360

Laminate Morro Zephyr 0484660

Morro Zephyr

0484660

Laminate Shadow Zephyr 0485760

Shadow Zephyr

0485760

Laminate Wild Cherry 0705460

Wild Cherry

0705460



Laminate Beigewood 0785060

Beigewood

0785060

Laminate Monticello Maple 0792538

Monticello Maple

0792538

Laminate River Cherry 0793738

River Cherry

0793738

Laminate Skyline Walnut 7964K12

Skyline Walnut

7964K12

Laminate Kensington Maple 1077660

Kensington Maple

1077660

Laminate Black (Woodgrain) 1595K78

Black (Woodgrain)

1595K78



Laminate Windsor Mahogany 0703960

Windsor Mahogany

0703960





Option 6: Edge Treatments

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Edgeband Designer White 348

Designer White

348

Edgeband Black 300

Black

300

Edgeband Folkstone 004

Folkstone

004

Edgeband Shaker Gray 026

Shaker Gray

026

Edgeband Pepperdust 007

Pepperdust

007

Edgeband Brownstone 006

Brownstone

006



Edgeband Jute 395

Jute

395

Anchor Gray 048

Anchor Gray

048

Edgeband Kodiak Brown 089

Kodiak Brown

089

Edgeband French Roast 023

French Roast

023

Edgeband Rainier Cherry 152

Rainier Cherry

152

Edgeband Beigewood 250

Beigewood

250



Edgeband Candlelight Maple 206

Candlelight Maple

206

Edgeband River Cherry 249

River Cherry

249

Edgeband Graphite 008

Graphite

008

Edgeband Sugar Maple 153

Sugar Maple

153

Edgeband Windsor Mahogany 151

Windsor Mahogany

151





Option 7: Casters

Sierra Locking Casters

Sierra Locking Casters

Features

  • Low profile locking casters 2" W x 1.5" H
  • Casters raise work centers by 1" versus installed adjustable glides
  • Can be used with all Workrite adjustable work centers, recommended for Sierra workcenters
  • Four (4) casters required for 2 leg workcenters, five (5) casters required for 3 leg workcenters



The following Casters are available

  • 95234 - 4 casters for 2 leg tables
  • 95235 - 5 casters for 3 leg tables



Option 8: Pinch Points

Dimensions provided above are nominal. Actual widths of all tables are reduced by 2" and depths by 1". For example, a nominal 42" × 42" × 24" corner table has an actual dimension of 40" × 40" × 23", and a 72" × 30" rectangular table has an actual dimension of 70" × 29".



Option 9: HX Spacer

HX Accessory Spacers

Attach the spacer to the leg motor with the #M6x12 mm Button Cap Screws





HX Accessory Spacers

Secure the support angle to the table top with the #12x3/4" Pan Head Hex Sheet Metal Screws



Features

  • Provides 3" or 5" of additional mounting depth under worksurface for accessories including keyboard platforms.

  • 3" spacer can mount to either 24"D or 30"D workcenters; 5" spacer can only be used on 30"D workcenters.

  • For 3 leg dual depth workcenters, order spacer for narrowest side.

  • Quantity 2 spacers provided.



The following Spacers are available:

  • SHX-24SPCR: 3" depth spacer, weight 4 lbs

  • SHX-30SPCR: 5" depth spacer, weight 7 lbs





Workcenter Ordering Information

Classic Collection Laminates: 10 working days for quantity 20 or less

Silhouette Collection Laminates: 10 working days for quantity 10 or less

Designer Collection Laminates: 20 working days for quantity 10 or less.

Note: Dimensions provided above are nominal. Actual widths of all tables are reduced by 2" and depths by 1".
For example, a nominal 42" × 42" × 24" corner table has an actual dimension of 40" × 40" × 23", and a 72" × 30" rectangular table has an actual dimension of 70" × 29".

Modular, high strength steel frame mounts to worksurface; exceeds ergonomic knee clearance requirements.
All tables have adjustable glides providing ½" adjustment. Table surfaces are predrilled with mounting location for bases. Silhouette surfaces include screws to mount accessory items under the worksurface.
Special drill bit required, can be ordered separately.
All tables and bases ship unassembled. Weight information is shipped weight for laminate option only.
Sierra HXL Electric legs rated at 175 lbs maximum force per leg.
Control box powered by 120V / 60Hz. May draw 2.9 amps maximum under full load. Standby power is 0.1W. 10' power cord with IEC type connection at control box provided.
Cable management spool provided to manage excess control cables; optional cable mount accessories are available.

Model SEHXL72364824X, SEHXL72366024X, SEHXL72367224X, SEHXL72364830X, SEHXL72366030X, SEHXL72367230X, SEHXL48247236X, SEHXL60247236X, SEHXL72247236X, SEHXL48307236X, SEHXL60307236X, SEHXL72307236X
Manufacturer Workrite Ergonomics
Part Number SEHXL72364824X, SEHXL72366024X, SEHXL72367224X, SEHXL72364830X, SEHXL72366030X, SEHXL72367230X, SEHXL48247236X, SEHXL60247236X, SEHXL72247236X, SEHXL48307236X, SEHXL60307236X, SEHXL72307236X
Height Range Adjusts 25"– 42.5" at 1.6" per second
Lifting Capacity 300 lbs
