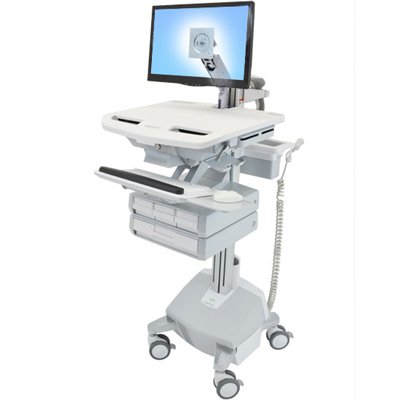

Ergotron SV42-3242-1 SV Cart with LCD Arm, LiFe Powered, 4 Drawers

Be the first to review this product
Product ID: 17565
Recommended Accessories
Our Price: $5,399.00
Shipping: $244.95 * Oversized box 164 pounds. Shipping cost subject to change based on destination
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Description

Ergotron SV42-3242-1 innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, side-to-side LCD and keyboard motion, bi-focal viewing and an adjustable back-tilt keyboard tray. It stays productive and on the go with our LiFe powered computer cart. Its auto-locking drawer system enables simple and efficient management of non-controlled medication.



Technical Drawing

Technical Drawing for Ergotron SV42-3242-1 StyleView Medical Cart with LCD Arm, LiFe Powered, 4 Drawers



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 22" Up to 34 lbs

15.9 kg

27"

68 cm

65° 180° 360° P/L MIS-D



Product Information

Part Number

  • North America = SV42-3242-1
  • Europe = SV42-3242-2
  • United Kingdom/Ireland = SV42-3242-3
  • Hong Kong/Malaysia = SV42-3242-3
  • Australia/New Zealand = SV42-3242-4
  • China = SV42-3242-5

Description

StyleView Cart with LCD Arm, LiFe Powered, 4 Drawers (white, grey and polished aluminum)

Includes

  • Auto-locking drawer system (ADS)
  • Primary triple drawer
  • Supplemental single drawer
  • Drawer dividers
  • LCD arm
  • Worksurface
  • Secure CPU compartment
  • Four-port USB hub

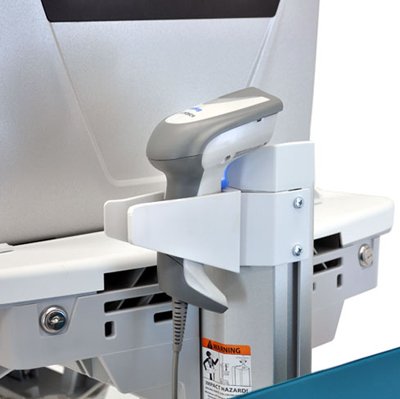

  • Scanner holder bracket
  • Mouse holder
  • Wrist rest
  • Back-tilt keyboard tray
  • Keyboard lights
  • Left/right mouse tray
  • Rear handle
  • Storage basket
  • Cable storage
  • Four casters (lockable)
  • Single-battery 40 Ah LiFe power system
  • 10-foot (3 m) coiled cord
  • Three AC outlets
  • Power system user interface
  • StyleLink software

Weight Capacity

Total maximum load on height-adjustment assembly = 34 lbs (15.9 kg). This is the sum of the following components: LCD arm = 5–11 lbs (2.3–5 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); large drawer ≤ 2 lbs (1 kg); small drawer ≤ .25 lbs (.1 kg)

Note: If the combined LCD and CPU weight is greater than 23 lbs (10.4 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)

LCD and Worksurface

Adjust 20" (51 cm) in tandem; LCD Arm adjusts 7" (17.8 cm) independently; maximum LCD height adjustment = 27" (68.6 cm)

Portrait Screen Orientation

May be incompatible with widescreen displays > 19"

True Ergonomics

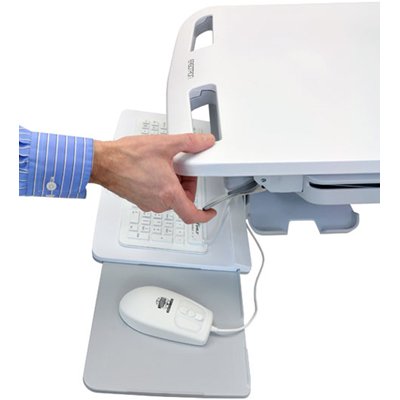

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
  • LCD height adjustment range of at least 25" (63.5 cm) is standard on all LCD carts
  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch
  • Arm adjusts screen down low to the worksurface for people wearing bifocals or using a tablet PC

Safe

  • For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1 and CAN/CSA-C22.2 No. 60601-1:08. Also complies with EMI limits of FCC Part 15 Class A
  • Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)
  • Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved clean ability
  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
  • Large, smooth worksurface; easy-to-clean design promotes infection control
  • Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
  • Locking casters
  • CPU lock provided inside the storage compartment for additional security
  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service

  • Includes FREE StyleLink with enterprise capabilities: Install, access and manage your StyleView power systems from a remote location across WAN, LAN, or VPN
  • Covered by Global Service Program - 24/7 coverage
All the Details Covered
  • Drawer dividers are included, allowing compartments to be customized to match your workflow requirements
  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
  • Button for LED lights is located conveniently on worksurface
  • Rear basket keeps task-related items where they can be quickly accessed
  • Universal mounting slot for accessories and equipment
  • A unique cable management system conceals and organizes cords, making cleaning easy
  • Ships fully assembled and is easily accessible from container

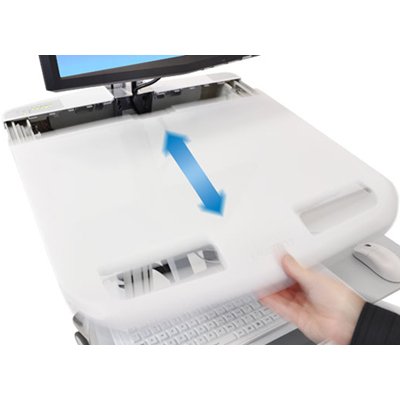

  • Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft
  • Four-port USB hub
  • TAA (Trade Agreements Act) compliant
  • Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time
  • Pre-routed cables provide quicker integration with equipment
  • Three-receptacle power strip located in the CPU storage compartment (North American carts) or in the base (EMEA & APAC carts)
  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; locking casters ensure lock-in-place stability
Compatibility and Dimensions

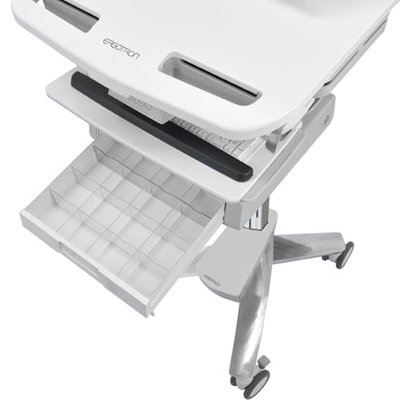

  • Internal Dimensions: individual small drawer = 2.5"H x 3.75"W x 10.5"D (63.5 x 95 x 267 mm) - includes dividers to configure up to 4 compartments; large drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments
  • Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
  • Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 3.75"H (45 x 37.5 x 9.5 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)
  • Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)
  • Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)
  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
  • VAC: SV42-3242-1 = 120V/60Hz; SV42-3242-2, SV42-3242-3, SV42-3242-4 = 230V/50Hz; SV42-3242-5 = 220V/50Hz
  • Grounded Plug: SV42-3242-1 = NEMA 5-15P Hospital Grade; SV42-3242-2 = European CEE 7; SV42-3242-3 = UK BS 1363; SV42-3242-4 = AS/NZS 3112; SV42-3242-5 = GB2009-1, GB1002-1 Note: In Switzerland, a customer-supplied adaptor is required
  • 40 Ah Power System with one (1) 40 Ah, 12 V DC, Lithium Iron Phosphate (LiFe) battery

Shipping Dimensions

24.5" x 34" x 56" (62 x 87 x 142 cm)

Shipping Weight

164 lbs (74.4 kg); actual cart weight = 130 lbs (59 kg)

Warranty

Five (5) years for cart’s mechanical components, two (2) years on power module; five (5) years on LiFe battery, including two-year capacity guarantee



Benefits

  • LiFe makes the cart extremely lightweight and easy to move
  • Ultrafast recharge ensures caregiver and cart uptime: A full recharge from full discharge can be completed in about two hours
  • Long battery ‘LiFe’ minimizes time and cost for maintenance and replacement
  • For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1. Complies with EMI limits of FCC Part 15 Class A
  • Auto-locking drawer system: Simple and efficient non-controlled medication management at the point-of-care reduces opportunities for errors; security system stores PINs for up to 100 users
  • Drawers include position able dividers to create multiple compartments
  • Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity
  • StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
  • Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
  • Surfaces are treated with antimicrobial for product protection
  • LCD and keyboard pan side-to-side for closer access while interacting with clients; arm also reaches low for people wearing bifocals or using a tablet PC
  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment
Model SV42-3242-1
Manufacturer Ergotron
Part Number SV42-3242-1
Color White, grey and polished aluminum
Monitor Size Up to 22"
Weight Capacity 34 lbs (15.9 kg). This is the sum of the following components: LCD arm = 5–11 lbs (2.3–5 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); large drawer ≤ 2 lbs (1 kg); small drawer ≤ .25 lbs (.1 kg)
Lift (68 cm) 27 in
Tilt 65 degree
Pan 180 degree
Rotation (P/L) 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Dimensions Internal: individual small drawer = 2.5"H x 3.75"W x 10.5"D (63.5 x 95 x 267 mm) - includes dividers to configure up to 4 compartments; large drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments
Compact Wheel to Wheel Base Dimensions 15.5" x 17" (394 x 432 mm)
Worksurface Dimensions 22.4"W x 19.75"D (567 x 502 mm)
Shipping Dimensions 24.5"W x 34"D x 56"H (62 x 87 x 142 cm)
Shipping Weight 164 lbs (74.4 kg); actual cart weight = 130 lbs (59 kg)
Warranty Five (5) years for cart’s mechanical components, two (2) years on power module; five (5) years on LiFe battery, including two-year capacity guarantee
Product Type LCD Monitor
Product Type Laptop
Product Type Tablet
