Ergotron DM16-1015-1 Tablet Management Desktop 16 with ISI

Compatible only with Samsung Galaxy Tab Active 8.0

Be the first to review this product
Product ID: 18239
Recommended Accessories
List Price: $2,000.00
Our Price: $1,125.00  1199
You Save: $875.00
Shipping: $49.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

Description

Ergotron DM16-1015-1 is specially designed for the Samsung Galaxy Tab Active 8.0: Charge and deploy tablets across multiple shifts to all necessary individuals. Quick-connect dock utilizes Samsung’s POGO pin connectors - no charging cords to install or maintain! Locking steel doors keep tablets secure when not in use.



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

8.0"

2.2 lbs

1 kg

- - - - -



Product Information

Part Numbers

  • North America = DM16-1015-1

  • Europe = DM16-1015-2

  • United Kingdom/Ireland = DM16-1015-3

  • Hong Kong/Malaysia/Singapore = DM16-1015-3

  • Australia/New Zealand = DM16-1015-4

  • China = DM16-1015-5

  • Thailand = DM16-1015-9

Description

Tablet Management Desktop with Individual Status Indicators, 16 device capacity, for Samsung Galaxy Tab Active 8.0 (black)

Compatible

Only with Samsung Galaxy Tab Active 8.0

Weight Capacity

Individual tablets up to 2.2 lbs (1 kg); top surface holds up to 25 lbs (11.4 kg)

Certification

  • UL 60950-1 Information Technology Equipment - Safety, CAN/CSA C22.2 No. 60950

  • IEC 60950-1 worldwide safety standard

  • For EMC: FCC part 15 Class A, ICES-003 Class A, AS/NZS CISPR22 Class A, EN55022 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, EN55024

  • Complies with USB 2.0 standard

Acoustic Testing

Indicates very quiet operation at 41.4 dBA

Cooling/Ventilation

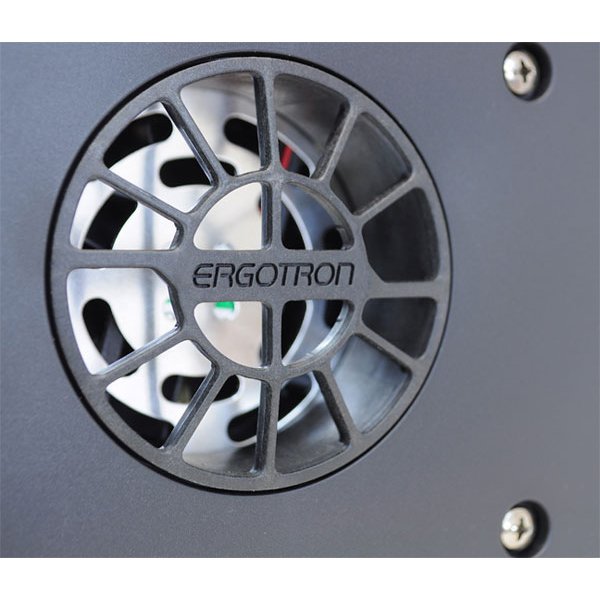

One 5V DC continuous operating fan

Power System

  • 100-240V~, 3.0A, 50/60 Hz depending on region and model of cabinet

  • Power cord = 6' (1.8 m) long

Environmental

  • Temperature Range: operating = 0° to 40°C (32° to 104°F); storage = -40° to 60°C (-40° to 140°F)

  • Relative Humidity (maximum): operating = 10% to 90% (non-condensing); storage = 5% to 95% (non-condensing)

  • Altitude (maximum): 2000 m (6,562 ft)

Environmentally clean

RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

Product Dimensions

18.3"W x 16.2"D x 10.4"H (46.5 x 41.1 x 26.4 cm)

Product Weight (unloaded)

28.5 lbs (13 kg)

Shipping Dimensions

21.2"W x 18.6"D x 12.8"H (53.8 x 47.3 x 32.5 cm)

Shipping Weight

33.5 lb (15 kg)

Warranty

Five (5) years; two (2) years for power module; one (1) year for other electrical components



Benefits



No Setup Required

  • Easy to use. Plug in the cabinet, drop in the tablets - charge.

  • No charging cords to install. Quick-connect dock utilizes Samsung’s POGO pin connectors

  • Capacity for up to 16 Samsung Galaxy Tab Active 8.0 tablets with Samsung provided case in a super compact cart design

  • All tablets charge simultaneously with power from one cord to the wall

  • Great for serving a central area

  • Individual status indicator LEDs monitor charging progress for each tablet

  • Heavy-duty ABS plastic enclosure is “wireless syncing friendly”. None of the signal interference that is common with all-steel cabinets



Solid, Durable Construction

  • Steel access doors

  • Durable, easy-to-clean exterior composed of high-grade fire-retardant ABS



Secure Storage

  • Durable steel doors with three-point lock assembly provides strong theft deterrence

  • Ventilated enclosed storage area keeps tablets safe, secure and cool

  • Can be secured to a desktop from bottom using provided security screws (surface thickness ≤ 1.0"/ 2.5 cm)

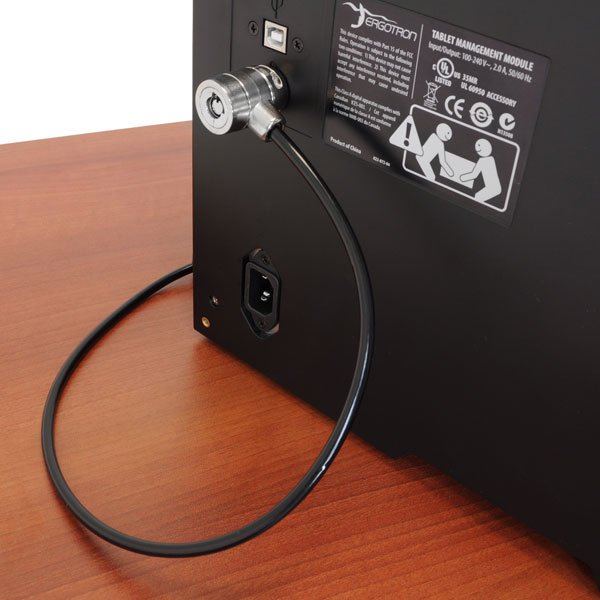

  • Includes lock slot, allowing connection to Kensington cable



Certified for Safety

  • Ergotron not only uses UL-certified components, but goes a step further to have UL certify the entire system to guarantee safe use within the classroom, healthcare, or enterprise setting

  • Tested and certified to UL 60950-1 standard, FCC requirements, and all applicable country-specific regulations





Model DM16-1015-1
Manufacturer Ergotron
Part Number DM16-1015-1
UPC 698833050608
Color Black
Compatible Only with Samsung Galaxy Tab Active 8.0
Weight Capacity Individual up to 2.2 lbs (1 kg); top surface holds up to 25 lbs (11.4 kg)
Power 100-240V~, 3.0A, 50/60 Hz depending on region and model of cabinet
Power Cord 6' (1.8 m) long
Temperature Operating = 0° to 40°C (32° to 104°F); storage = -40° to 60°C (-40° to 140°F)
Humidity Operating = 10% to 90% (non-condensing); storage = 5% to 95% (non-condensing)
Altitude 2000 m (6,562 ft) (maximum)
Dimensions 18.3"W x 16.2"D x 10.4"H (46.5 x 41.1 x 26.4 cm)
Weight 28.5 lbs (13 kg) (unloaded)
Shipping Dimensions 21.2"W x 18.6"D x 12.8"H (53.8 x 47.3 x 32.5 cm)
Shipping Weight 33.5 lb (15 kg)
Warranty Five (5) years; two (2) years for power module; one (1) year for other electrical components
Display Type Tablet
