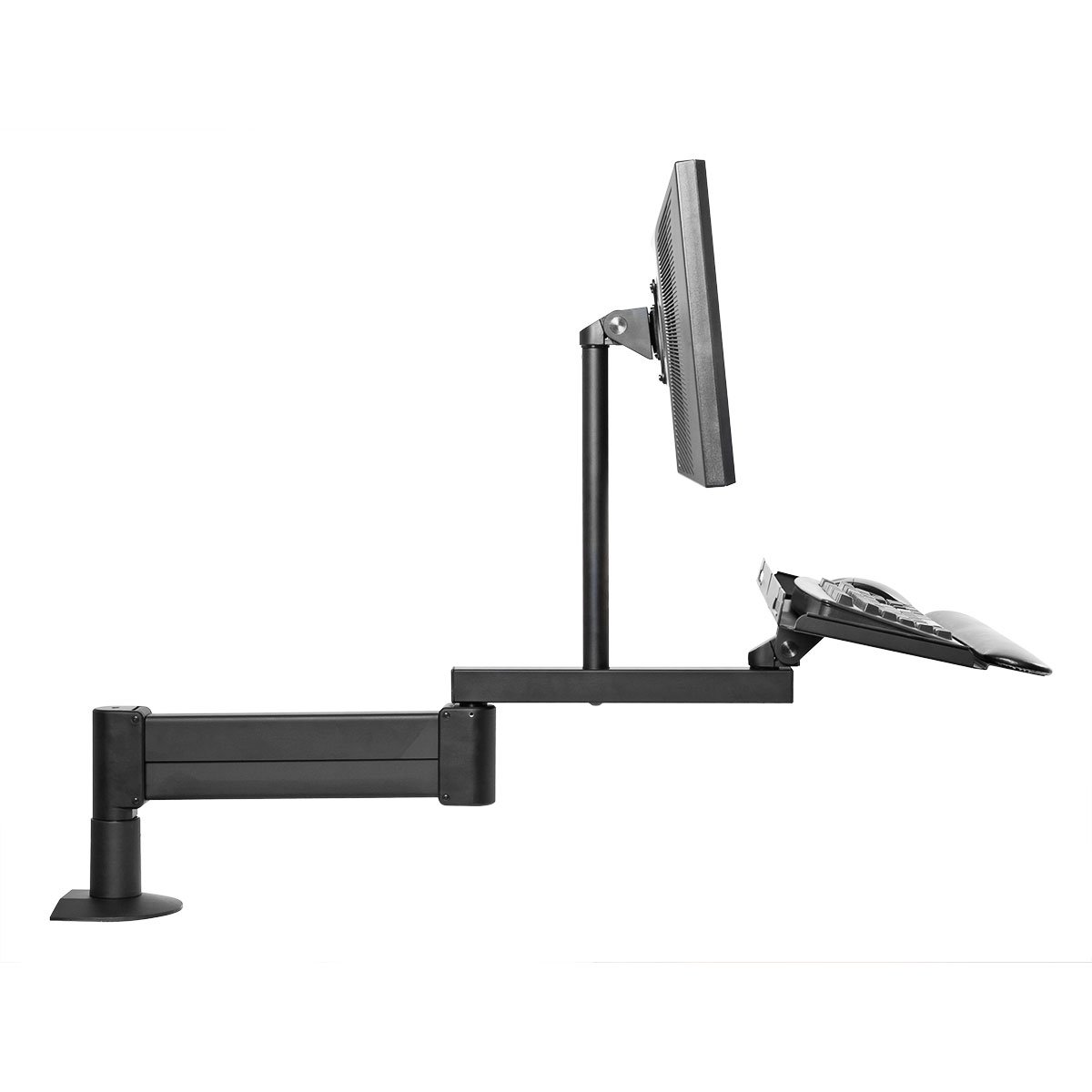

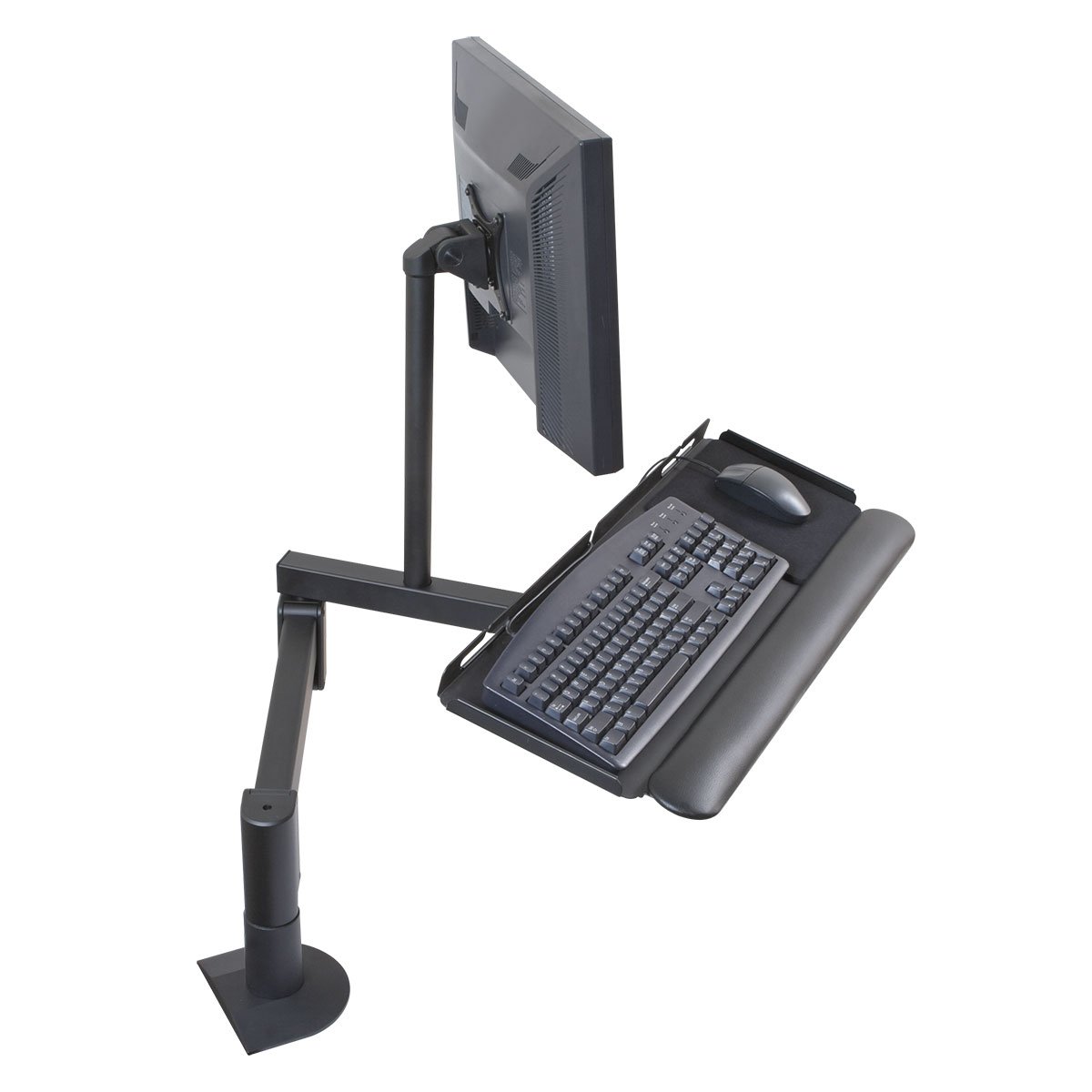

Innovative 9139 Heavy-duty Data Entry Monitor Arm

This monitor arm is special order and custom-made. Please note that this product is NOT returnable.

Product ID 15990
Innovative 9139 Heavy-duty Data Entry Monitor Arm
Adjust keyboard angle independent of the monitor
Innovative 9139 Wall Mount
Extends up to 31"
Easily adjusts to desired position
Innovative 9139 Heavy-duty Data Entry Monitor Arm
Innovative FLEXmount

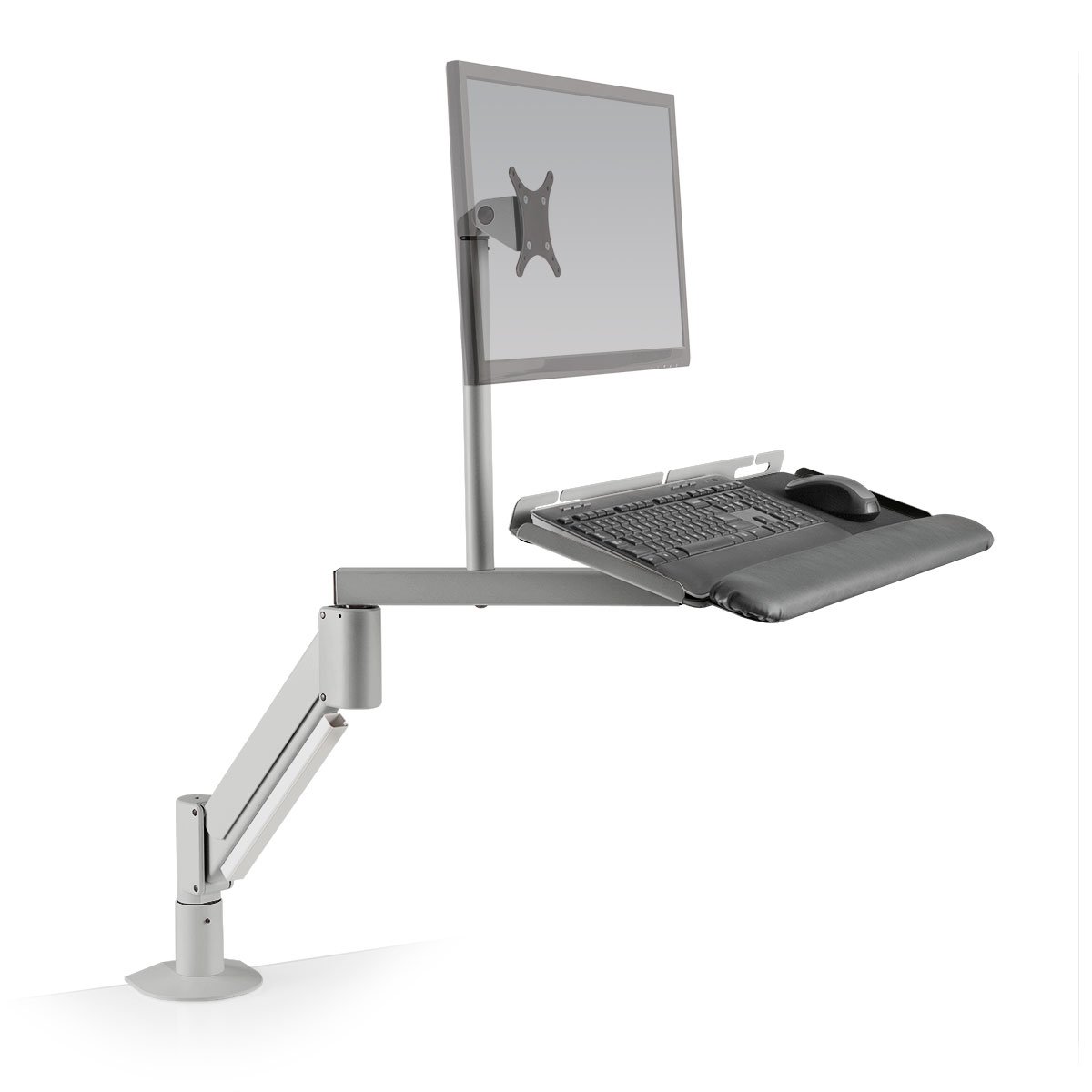

Silver Finish 9139-10-800HY-124

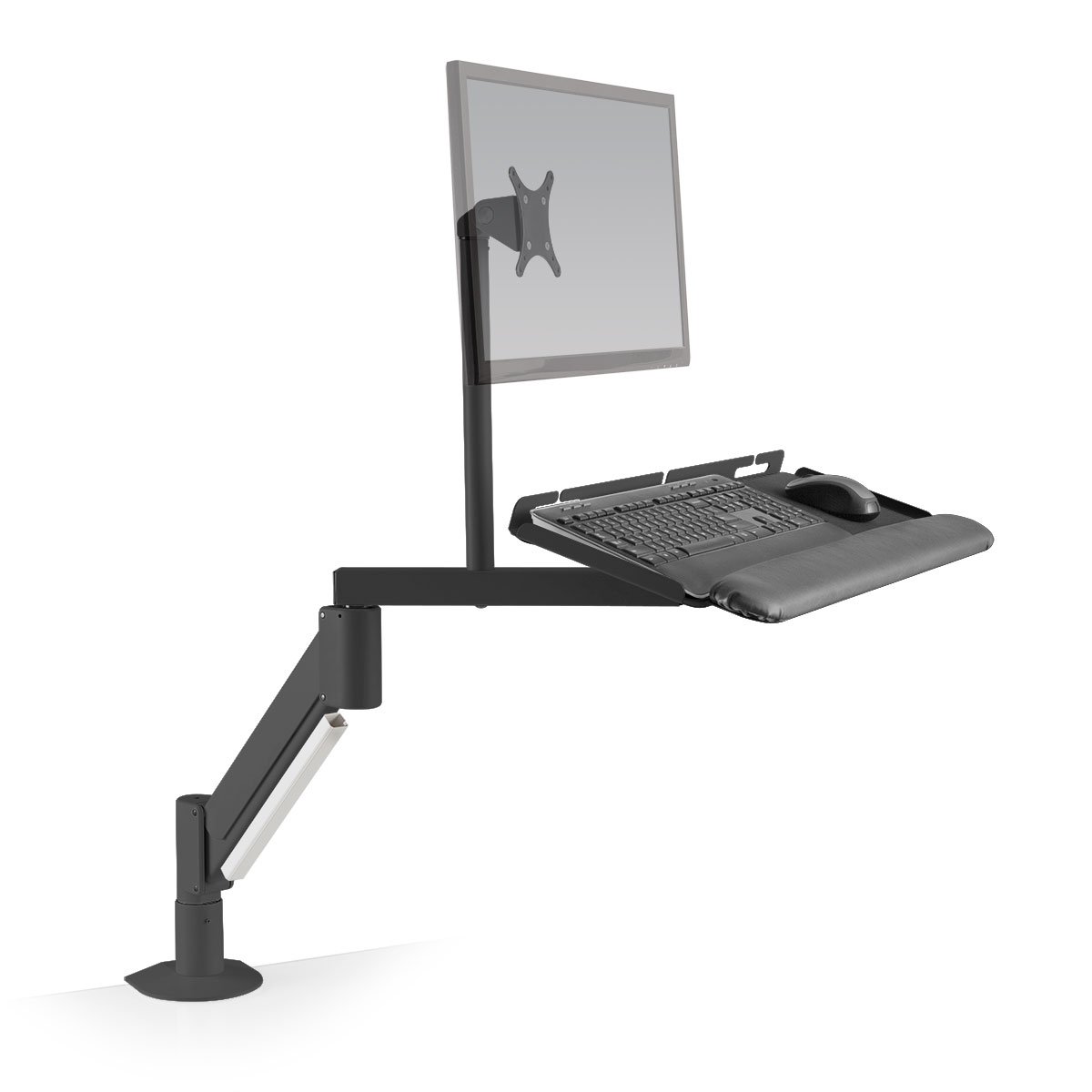

Black Finish 9139-10-800HY-104

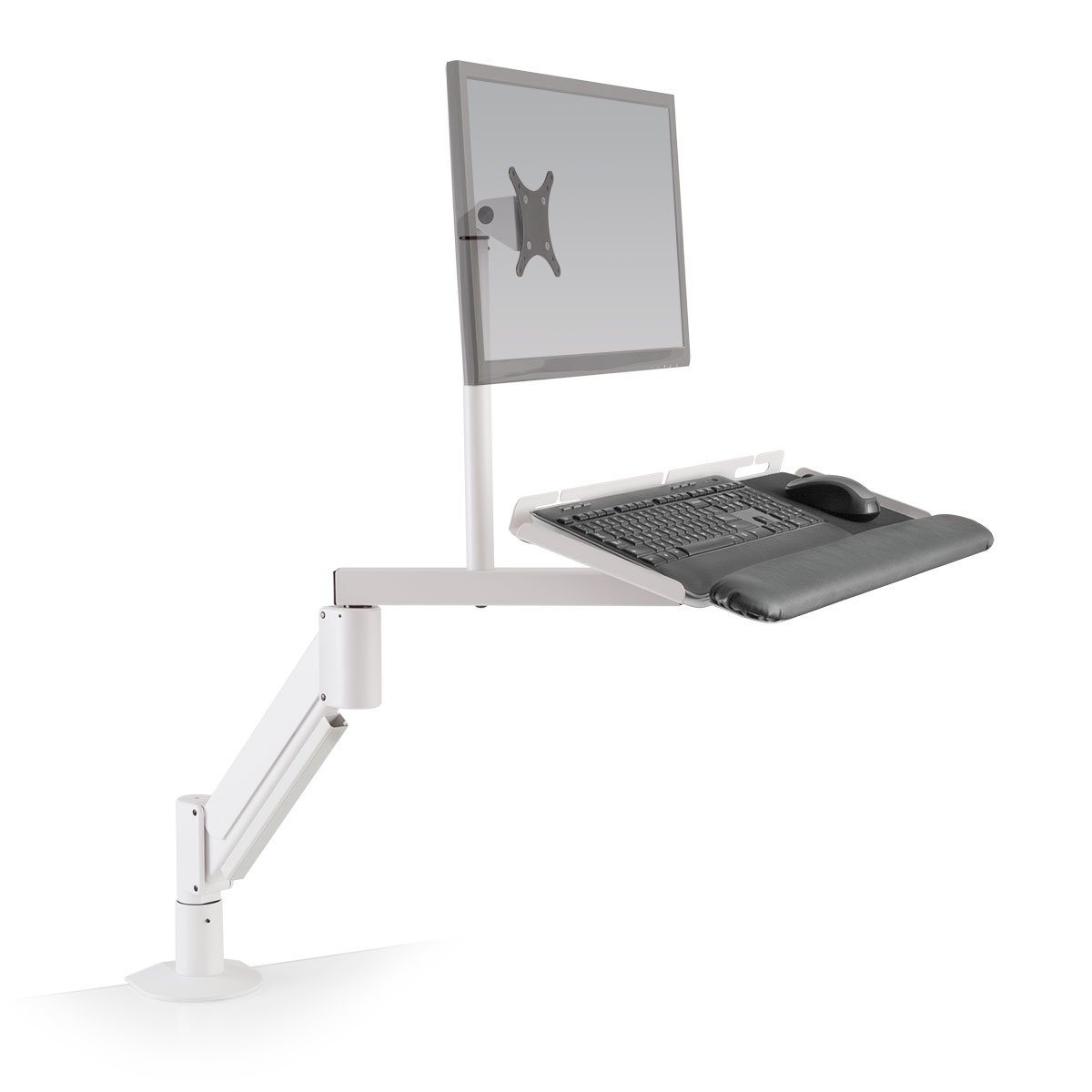

White Finish 9139-10-800HY-248
Black Finish 9139-104 Independent Movement - Maximum flexibility
Black Finish 9139-104 extended reach

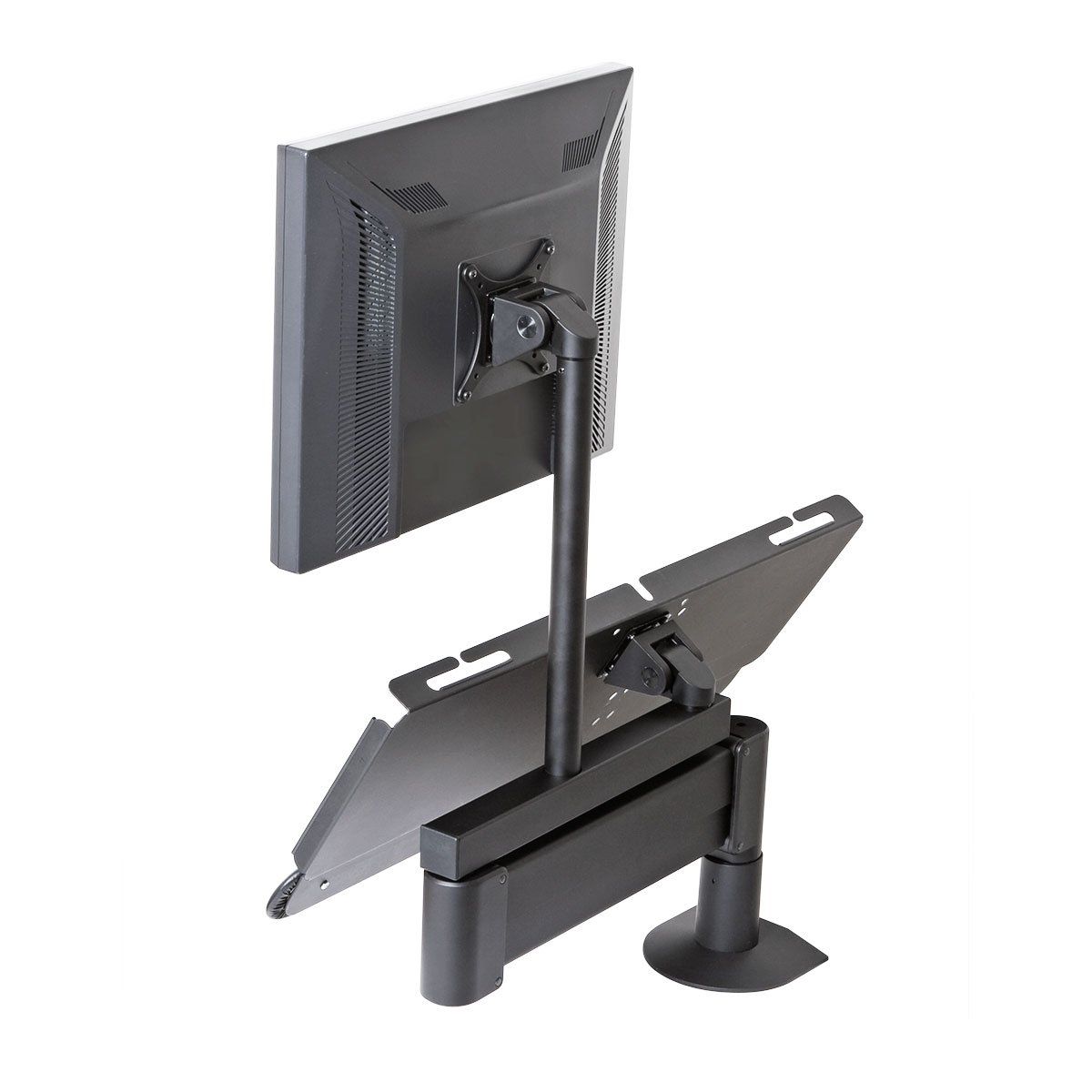

Black Finish 9139-104 folds away when not in use

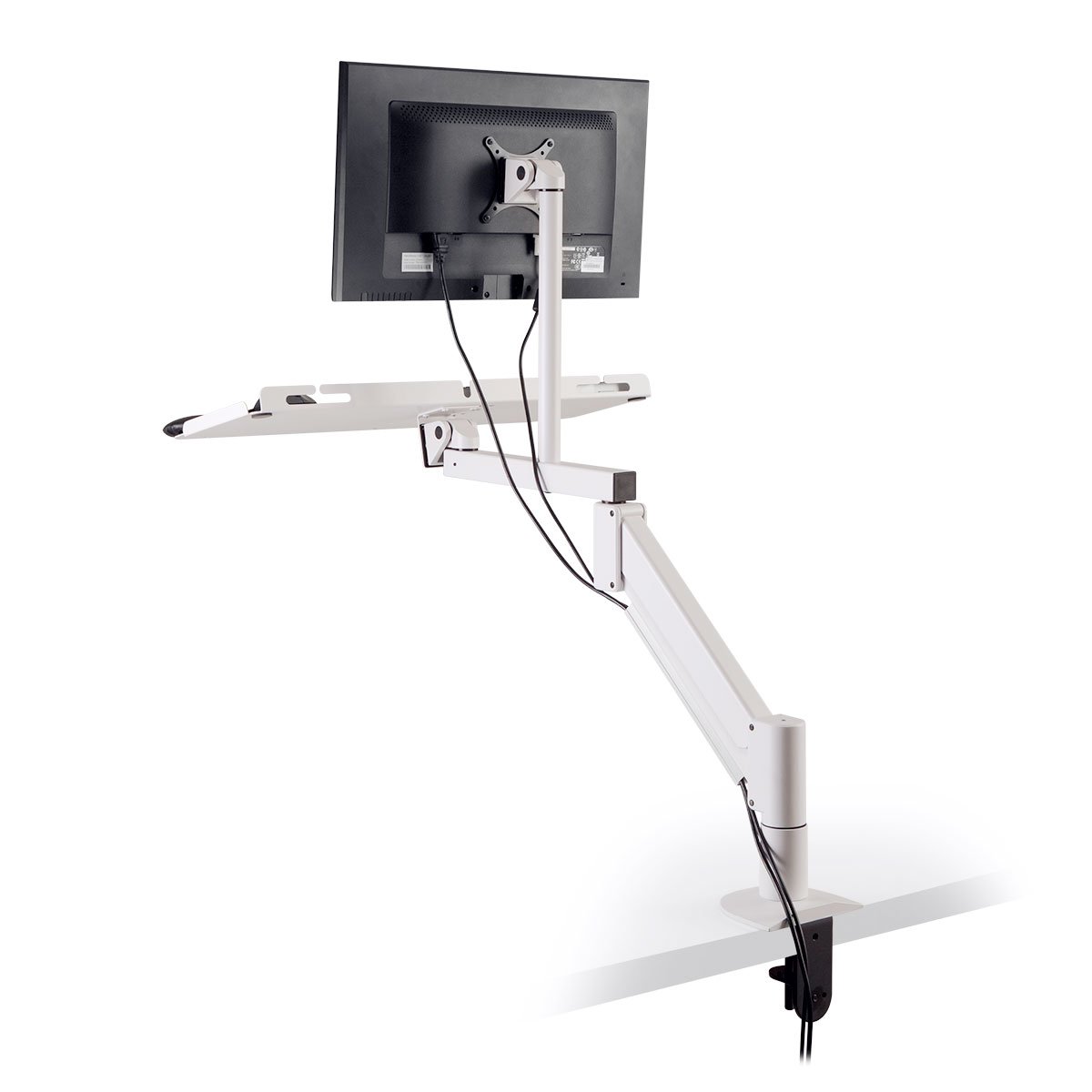

White Finish 9139-248 Cable Management
Innovative 9139 Heavy-duty Data Entry Monitor Arm
Adjust keyboard angle independent of the monitor
Innovative 9139 Wall Mount
Extends up to 31"
Easily adjusts to desired position
Innovative 9139 Heavy-duty Data Entry Monitor Arm
Innovative FLEXmount
Silver Finish 9139-10-800HY-124
Black Finish 9139-10-800HY-104
White Finish 9139-10-800HY-248
Black Finish 9139-104 Independent Movement - Maximum flexibility
Black Finish 9139-104 extended reach
Black Finish 9139-104 folds away when not in use
White Finish 9139-248 Cable Management

Innovative FLEXmount

Description

Innovative 9139 data entry monitor arm supports heavy-duty monitors while maintaining a full range of motion. Keyboard platform sold separately.

The 9139 heavy-duty data entry monitor arm is great for industrial or manufacturing environments. The computer mount features independent adjustment of monitor and keyboard platform. Choose from several mounting and keyboard platform options (purchased separately).

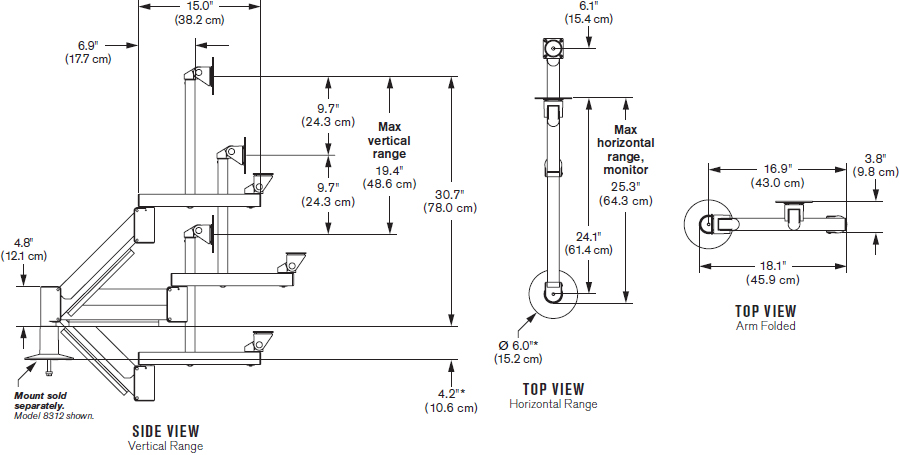

Technical Drawing

Technical Drawing for Innovative 9139 Heavy-duty Data Entry Monitor Arm - Up to 53 lbs

Technical Specifications

Color 104 - Vista Black, 124 - Silver and 248 - Flat White
Screen Size Up to 27"
Extension Range 25.3" (64.3 cm)
Height Adjustment 19.4" (48.6 cm)
Rotation 360 degrees at three joints
Monitor Tilt 200 degrees
Monitor Pivot Landscape / Portrait
VESA Compatibility 75 & 100mm, adapter included
Mount Configurations Mount sold separately
Cable Management Cables are clipped beneath arm
Warranty 10 Years
Weight Capacity
  • 9139-10-800HY - 6.8 - 32.1 lbs (3 - 14.5 kg)

  • 9139-10-1000HY - 12.1 - 36.2 lbs (5.4 - 16.4 kg)

Features

  • Data entry mount offers up to 31" of reach on the standard arm

  • Mount offers 19.4" of height adjustment

  • Monitor tilt mechanism can tilt over 200 degrees upward and downward as well as portrait or landscape viewing modes

  • Friction control system provides smoother monitor movement while adjusting the position of the arm

  • Mount and keyboard platform sold separately

Model 9139-10 or 9139-10-1000HY
Manufacturer Innovative LCD Arms
Part Number 9139-10 or 9139-10-1000HY
Weight lb(s)
Mounting Options Desk
Mounting Options Wall
Mounting Options Pole
Monitor Arm Types Monitor/Keyboard
Tilt 200 degree
Maximum Reach Up to 31
Number of Monitors 1 Monitor
Monitor Size Up to 27
Color 104 - Vista Black, 124 - Silver and 248 - Flat White
Height Adjustment 19.4
Extension 25.3
Pivot Landscape to Portrait
Rotation At three joints 360 degree
Mounting Pattern VESA 75mm, 100mm
Warranty 10 Years
